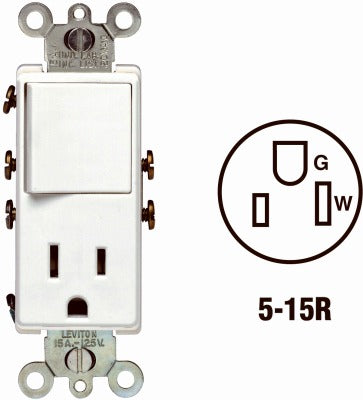

Leviton S02-05625-0WS Switch Outlet Combo 15A 120V Nema 5-15

Product Description

The LEVITON MFG CO S02-05625-0WS is a combination device that integrates a single pole switch and a 2-pole, 3-wire grounded outlet into a single gang space. The switch is rated at 15 amps and 120 volts with a 1/2 HP motor load rating, making it suitable for controlling lighting circuits and small motor loads. The outlet section is rated at 15 amps and 125 volts and meets the NEMA 5-15 configuration standard. The device is UL listed and carries a limited 10-year warranty. Licensed electricians install this device in residential and light commercial wiring projects where combining switching and receptacle functions in a single box location is preferred.

This combination switch and outlet is designed for single gang wall box installations in standard residential and light commercial electrical systems. It suits applications where a controlled switched circuit and a general-purpose grounded outlet are both needed at the same location without requiring additional box space or a multi-gang cover plate. Typical installations include utility rooms, garages, workshops, and kitchens where a switched load and a conveniently located outlet serve the same work area.

Key Features

• Single pole switch and NEMA 5-15 grounded outlet combined in one single gang device
• Switch rated at 15 amps, 120 volts with 1/2 HP motor load capacity
• Outlet rated at 15 amps, 125 volts, NEMA 5-15 configuration
• 2-pole, 3-wire grounded outlet design for safe grounded circuit connections
• UL listed for compliance with standard electrical installation requirements
• Limited 10-year manufacturer warranty

Compatibility

Designed as a standard single gang combination device compatible with single gang electrical wall boxes in residential and light commercial wiring systems rated for 15-amp, 120-volt branch circuits.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the branch circuit at the panel and verify absence of voltage with a suitable tester before beginning any wiring work. Follow the device's terminal labeling for proper switch leg and outlet wiring connections. A single gang wall plate is required and is not included with the device.
