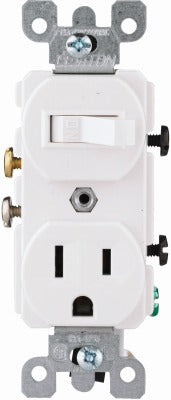

Leviton S02-05225-0WS Switch Outlet Combo 15A 125V

Product Description

The LEVITON MFG CO S02-05225-0WS is a heavy-duty, specification-grade single pole switch and grounded outlet combination device designed for commercial and residential electrical installations. The switch operates at 15 amps and 120 volts AC, while the grounded outlet is rated at 15 amps and 125 volts with a NEMA 5-15R receptacle configuration. The device accepts conductors up to No. 10 gauge and features break-off fins that allow conversion to a two-circuit wiring arrangement. The outlet can be wired to operate independently of the switch or can be placed under switch control, giving installers flexible wiring options in a single gang space. UL listed for safety compliance.

This combination device is suited for general-purpose branch circuit wiring in residential, commercial, and light industrial settings. It is commonly installed where a switched load and a always-hot or switched outlet are needed at the same location, such as utility rooms, garages, workshops, and commercial service areas. The specification-grade construction makes it appropriate for applications where durability and long service life under repeated use are required. Licensed electricians typically install this device as part of branch circuit rough-in or device replacement work.

Key Features

• Single pole switch rated 15 amps at 120 volts AC
• Grounded outlet rated 15 amps at 125 volts, NEMA 5-15R configuration
• Accepts conductors up to No. 10 gauge
• Break-off fins allow two-circuit wiring conversion
• Outlet wiring independent of or controlled by the switch
• Heavy-duty specification-grade construction
• UL listed

Compatibility

Designed as a specification-grade single-gang combination device suitable for standard single-gang electrical boxes in 15-amp branch circuit applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit at the breaker panel and verify absence of voltage before beginning work. When using the break-off fins for two-circuit wiring, confirm that each circuit is properly identified and protected. Do not exceed the No. 10 conductor size rating or the 15-amp circuit rating for either the switch or outlet portion of this device.
