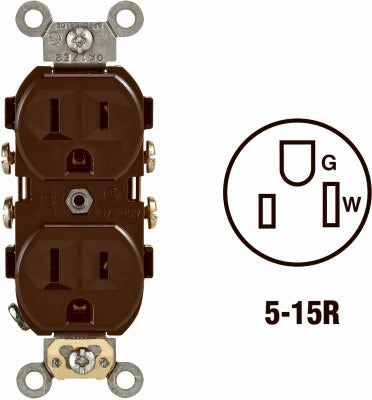

Leviton S00-0CR15-00S Spec Grade Duplex Outlet 15A 125V 10-pack

Product Description

The LEVITON MFG CO S00-0CR15-00S is a commercial specification grade duplex outlet rated at 15 amps and 125 volts, conforming to NEMA 5-15R configuration. Built with a shallow body design to maximize wiring room inside crowded electrical boxes, this receptacle is side-wired using large-head terminal screws that accept up to No. 10 copper wire. Double-wire power contacts deliver strong conductivity and reliable plug retention over the life of the device. This 10-pack is suited for commercial and light industrial electrical installations where durability and code-grade components are required.

This duplex outlet is intended for commercial specification grade installations in office buildings, retail spaces, schools, healthcare facilities, and other environments where receptacles face frequent use and must meet demanding performance standards. The included break-off fins allow conversion to 2-circuit wiring, giving electricians flexibility during rough-in and finish work. Captive mounting screws and washer-type break-off plaster ears speed up installation and simplify alignment in standard single-gang boxes. The brown finish is a common choice for matching brown or ivory device plates in commercial settings.

Key Features

• Commercial specification grade construction for high-demand environments
• Shallow body design maximizes wiring room in standard electrical boxes
• Large-head terminal screws accept up to No. 10 copper wire for solid side-wiring connections
• Double-wire power contacts for enhanced conductivity and plug retention
• Break-off fins allow 2-circuit conversion without additional hardware
• Captive mounting screws and washer-type break-off plaster ears included
• UL listed with a limited 10-year warranty

Compatibility

Designed as an OEM-style specification grade replacement or new-installation duplex receptacle compatible with standard single-gang electrical boxes wired to NEMA 5-15R configurations at 15 amps and 125 volts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Always de-energize the circuit at the breaker panel and verify absence of voltage with a meter before wiring or replacing a receptacle. Side-wire connections must be torqued to the terminal screw manufacturer specification and conductors seated fully under the screw head. Do not mix wire gauges on a single terminal.
