Product Description

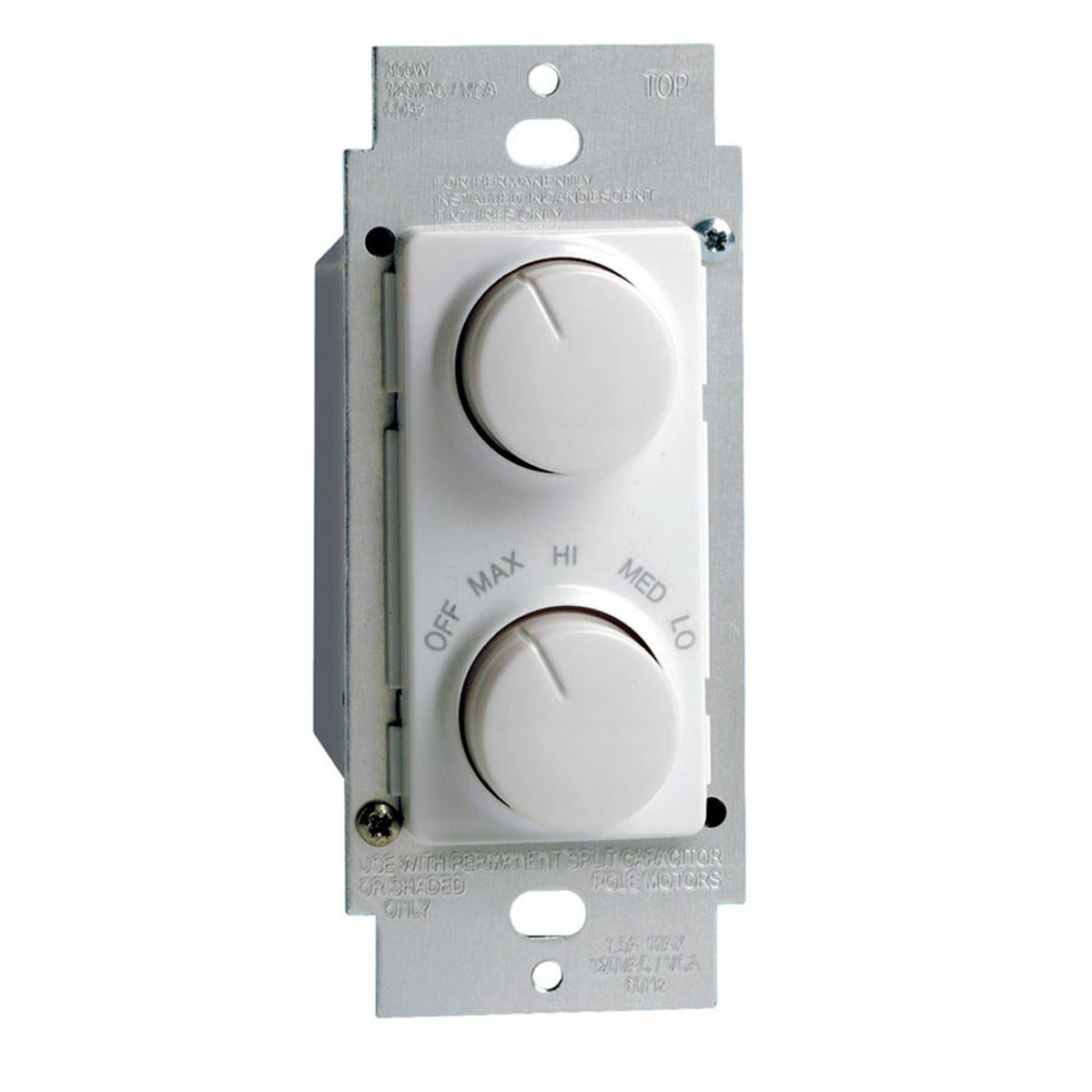

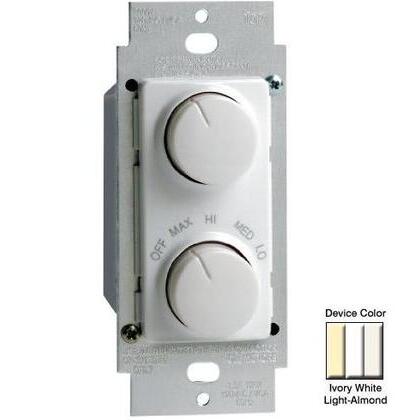

The LEVITON RTD01-10Z is an IllumaTech electromechanical rotary dimmer and fan speed control. This single-pole control operates at 120VAC and 60Hz, with a power rating of 300W and amperage of 1.5A. It is designed for commercial applications and is suitable for wall mounting.
- Turns fans ON/OFF and regulates speed
- 4-fan speeds- low, medium, high and max
- Ideal for ceiling fans with built-in light fixtures
Product Highlights
This rotary combo fan speed dimmer control is UL Listed and CSA Certified. It features a variable position knob and is designed for commercial use.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: RTD01-10Z
-
Country of Origin: China
Technical Specifications
-
GTIN: 00078477318409
-
Size: 4.12 H x 1.73 W x 1.30 D IN
-
Type: Electromechanical, Variable Position Knob
-
Brand: Leviton
-
Color: White
-
Voltage: 120 Volt
-
Amperage: 1.5 Amp
-
Standard: UL Listed (E-31373), CSA Certified (LR-3413)
-
Sub Brand: IllumaTech
-
Product UPC: 07847731840
-
12-Digit UPC: 078477318409
-
Applications: For Commercial use
-
Power Rating: 300 W
-
Mounting Type: Wall
-
Number of Poles: 1
-
Country of Origin: China
-
Operating Temperature: 0 - 55 degrees C
-
Environmental Conditions: 20 - 90% RH Non-Condensing, -10 to 85 C
-
Catalog Number: RTD01-10Z
-
Manufacturer: Leviton
-
Made in USA: No
-
Application: Commercial
-
Mounting: Wall
-
UPC: 078477318409
-
Item Type: Fan Speed Control
-
Voltage Rating: 120
