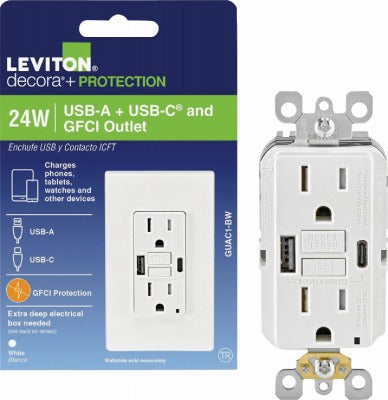

Leviton RN2-GUAC1-0BW Gfci Usb Outlet 15A 24W Type A/c

Product Description

The LEVITON MFG CO RN2-GUAC1-0BW is a self-test GFCI combination outlet with an integrated 24-watt Type A/C USB in-wall charger. It provides ground-fault circuit interrupter protection at 125 volts and 15 amps while simultaneously delivering adapter-free USB charging through one Type A port and one Type C port. The device performs automatic self-tests to confirm that GFCI protection remains active. Built-in overcurrent protection and an internal thermoregulator help protect connected devices during charging. Licensed electricians install this device in new construction and retrofit applications where code-compliant GFCI protection and USB charging are required in the same outlet footprint.

This outlet is suited for residential and light commercial installations in kitchens, bathrooms, garages, and other locations where NEC-required GFCI protection applies. The tamper-resistant design meets current code requirements for areas accessible to children. The combined GFCI and USB charging function eliminates the need for a separate wall adapter, keeping the second outlet receptacle free. It supports phones, tablets, smartwatches, and other USB-charged devices. The white finish and standard single-gang form factor fit conventional wall plates.

Key Features

• Integrated 24-watt (4.8-amp) Type A and Type C USB charging ports
• Self-test GFCI automatically monitors protection status and alerts when a reset is needed
• Tamper-resistant shutters meet NEC requirements for residential and specified commercial locations
• Internal thermoregulator and overcurrent protection help safeguard connected electronics
• 125-volt, 15-amp rating fits standard single-gang residential wiring
• Adapter-free charging keeps the AC receptacle available for other loads

Compatibility

Designed as an OEM-style replacement or new-installation GFCI USB combination outlet for standard single-gang electrical boxes in residential and light commercial applications requiring 15-amp, 125-volt GFCI protection with integrated USB charging.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Turn off the circuit breaker and verify the circuit is de-energized with a non-contact voltage tester before wiring. Follow the line and load terminal markings on the device to maintain proper GFCI protection downstream. After installation, press the test and reset buttons to verify correct operation before closing the wall plate.
