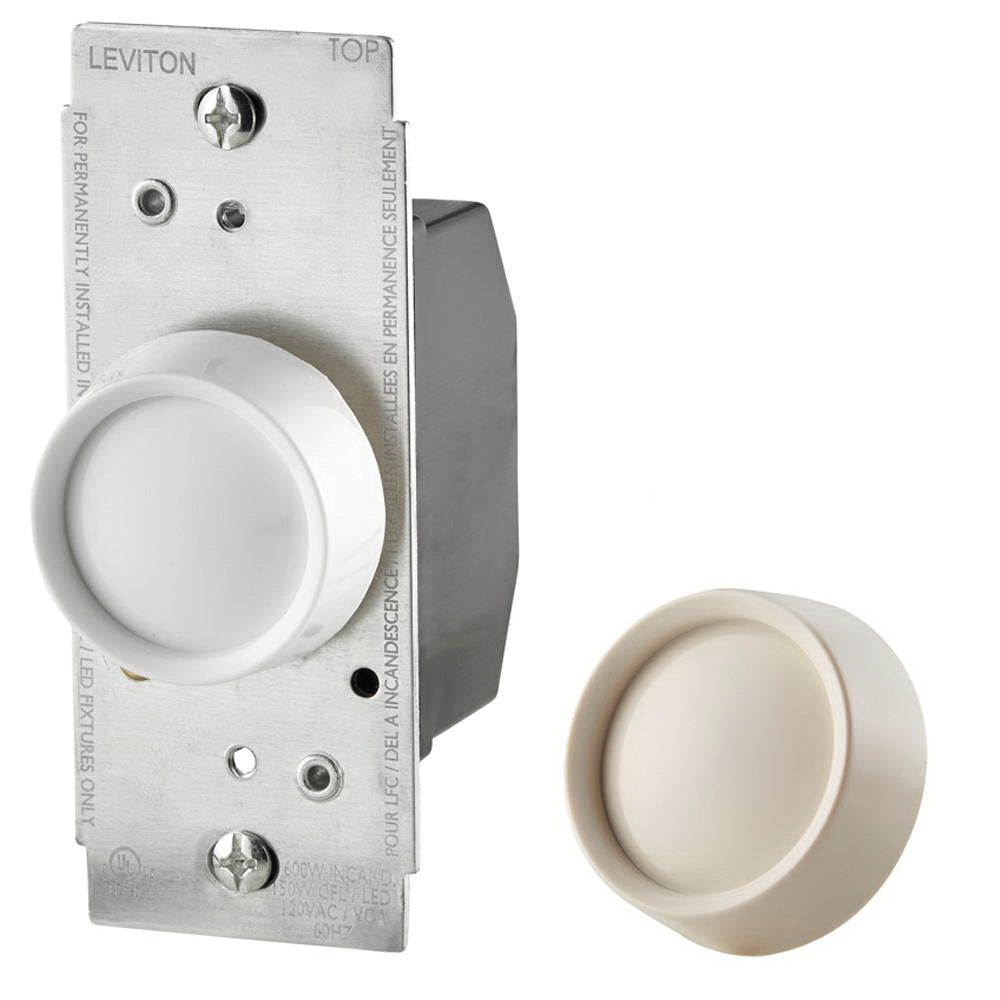

Leviton RDL06-0TW Trimatron 1-Pole 3-Way Dimmer 120V 60Hz (Rotary) R00-RDL06-0TW

Product Description

Leviton RDL06-0TW is a Trimatron rotary in-wall dimmer rated for 120 Volt AC at 60 Hz that supports single-pole or 3-way wiring. It delivers push on/push off rotary control and forward-phase dimming for incandescent, halogen, and dimmable LED/CFL lamps. The device supports up to 600 W for incandescent loads or 150 W for LED/CFL, includes wire-lead connections, a built-in radio/TV interference filter, and noise-reduction circuitry for fan motors.

• Rated input voltage: 120 Volt AC, 60 Hz; single-pole or 3-way compatible
• Maximum load: incandescent 600 W; dimmable LED/CFL 150 W; forward-phase dimming
• In-wall rotary actuator with push ON/push OFF action, wire-lead installation, built-in RFI filter

Product Highlights

In-wall Trimatron rotary dimmer; 120V 60Hz; 600W incandescent / 150W LED-CFL; UL and CSA listed; 0 to 55�C operating temperature.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: RDL06-0TW

Technical Specifications

• Brand: Leviton
• Manufacturer Part Number: RDL06-0TW
• Replacement MPN: R00-RDL06-0TW
• Series / Sub Brand: Trimatron
• Item Name: Dimmer
• Type: 3-Way compatible (single-pole/3-way)
• Pole: 1-Pole
• Mounting Type: In-Wall
• Actuator: Rotary
• Action: Push ON / Push OFF
• Input Voltage: 120 Volt AC
• Frequency: 60 Hz
• Maximum Load (Incandescent): 600 Watt
• Maximum Load (LED/CFL): 150 Watt
• Dimming Method: Forward phase dimming
• Interference Filter: Built-in radio/TV interference filter
• Noise Control: Circuitry to reduce fan motor noise at low speeds
• Installation: Wire-lead connections; fits standard wallbox; compatible with toggle-style wallplates
• Dimensions (H x W x D): 4.13 in x 1.75 in x 1.32 in
• Operating Temperature: 0 to 55 �C
• Environmental Conditions: 20 - 90% non-condensing relative humidity
• Certifications: UL Listed, CSA Certified
• UPC: 07847785562
