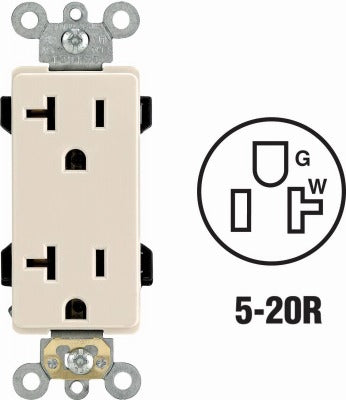

Leviton R86-16352-0TS Decora Plus 20A 125V Duplex Receptacle 10 Pack

Product Description

The LEVITON MFG CO R86-16352-0TS is a Decora Plus duplex receptacle rated for 20 amps at 125 volts with a NEMA 5-20R configuration. Built for commercial and residential electrical installations, it features a 2-pole, 3-wire self-grounding design that eliminates the need for a separate grounding wire connection to the device. The body is molded from thermoplastic nylon, providing durable insulation suitable for standard outlet box installations. Back and side termination options give electricians flexibility when wiring in tight boxes or running pigtails. This receptacle is UL listed and ships in a package of 10 units.

This receptacle is suited for general-purpose 20-amp branch circuits in residential, light commercial, and institutional settings. The NEMA 5-20R outlet accepts both 15-amp and 20-amp plugs, making it a common choice for kitchen countertop circuits, office workstations, laundry areas, and other locations where the NEC requires 20-amp receptacle circuits. The Decora Plus style fits standard Decora wallplates. Licensed electricians typically specify this outlet for new construction, remodel work, and panel upgrades requiring updated receptacle hardware.

Key Features

• Self-grounding design eliminates separate ground wire attachment to the device
• Back and side termination for wiring flexibility in standard outlet boxes
• Thermoplastic nylon construction for durable, impact-resistant performance
• NEMA 5-20R configuration accepts 15-amp and 20-amp plug types
• UL listed for compliance with standard electrical installation requirements
• Sold in a package of 10 units for efficient job-site stocking

Compatibility

Designed as an OEM-style replacement and new-construction receptacle for standard single-gang outlet boxes on 20-amp, 125-volt branch circuits. Fits standard Decora wallplates.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the branch circuit at the panel and verify with a non-contact voltage tester before beginning any wiring work. Both back-wire and side-screw termination methods are available on this device. Torque terminal screws to the value marked on the device body per NEC requirements.
