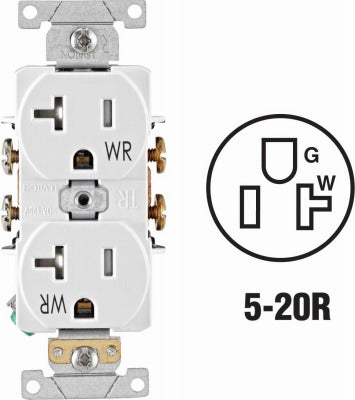

Leviton R77-TWR20-00W 20A Tamper Weather Resistant Outlet

Product Description

The LEVITON MFG CO R77-TWR20-00W is a commercial-grade, tamper-resistant and weather-resistant duplex receptacle rated at 20 amps. Built from durable nylon, it features an internal shutter mechanism that blocks contact access unless a 2-prong plug is fully inserted, preventing foreign objects from entering the slots. A shallow-profile body maximizes wiring room inside the box. Side-wired terminals with large-head screws and back-wiring clamps accept up to No. 10 copper wire. Triple wire power contacts deliver strong conductivity and reliable plug retention. This unit is sold as a pack of 10 and ships at 2.61 pounds.

This receptacle is suited for both indoor and outdoor installations where tamper resistance and weather resistance are required by code. Common applications include exterior walls, garages, bathrooms, kitchens, pool surrounds, and commercial facilities where NEC Section 406.8 compliance is mandatory. Captive mounting screws speed up installation, and washer-type break-off plaster ears allow flush alignment with the wall surface. Break-off tabs enable easy conversion to 2-circuit wiring configurations. Licensed electricians typically install this device in new construction and retrofit projects alike.

Key Features

• Internal shutter mechanism blocks contact access without a 2-prong plug inserted
• Commercial-grade nylon construction for durability in demanding environments
• Side-wired with large-head terminal screws and back-wiring clamps accepting up to No. 10 copper wire
• Triple wire power contacts for maximum conductivity and plug retention
• Heavy-gauge rust-resistant steel mounting strap
• Break-off tabs allow easy 2-circuit conversion
• Captive mounting screws and break-off plaster ears for fast, flush installation

Compatibility

Designed as an OEM-style tamper and weather-resistant duplex receptacle for residential and commercial electrical installations requiring NEC Section 406.8 compliance. Covers must be used when installed in damp or wet locations per NEC Section 406.8.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Always de-energize the circuit at the breaker panel and verify zero voltage with a meter before beginning work. When used in damp or wet locations, an appropriate weatherproof cover plate is required per NEC Section 406.8. Do not exceed No. 10 copper wire on the terminal connections.
