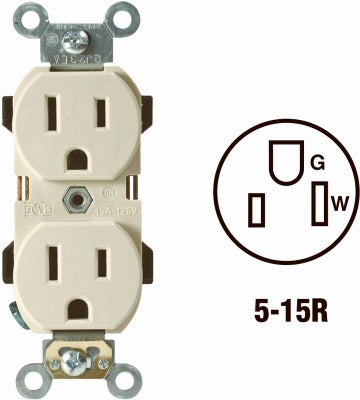

Leviton R71-05252-0IS Duplex Outlet 15A 125V Nema 5-15R

Product Description

The LEVITON MFG CO R71-05252-0IS is an Industrial Specification Grade duplex outlet built for demanding commercial and industrial electrical installations. Rated at 15 amps and 125 volts with a NEMA 5-15R configuration, it features a nylon face and base for durability in high-use environments. Four large-head brass spring-loaded terminal screws paired with steel wire connectors and eight back-wiring holes provide maximum wiring flexibility for licensed electricians. A wire containment rib keeps conductors organized, and the groundamatic self-grounding strap is locked into the base, supplemented by a green grounding screw for reliable ground continuity. UL listed and compliant with Federal Specification WC-596F.

This duplex outlet is suited for industrial facilities, commercial buildings, and specification-grade residential installations where standard-grade devices are not acceptable. The combination of back-wiring and side-wiring options accommodates both speed-wiring and traditional screw-terminal methods, making it practical for panel-room rough-in work, commercial tenant improvements, and industrial equipment circuits. It is sold in a package quantity of 10 units, making it appropriate for contractors stocking up for larger jobs requiring consistent specification-grade hardware throughout.

Key Features

• Industrial Specification Grade construction with nylon face and base for heavy-duty durability
• Four large-head brass spring-loaded terminal screws with steel wire connectors for secure terminations
• Eight back-wiring holes plus side-wiring capability for wiring flexibility
• Wire containment rib keeps conductors organized and prevents crowding in the box
• Groundamatic self-grounding strap locked into base plus dedicated green grounding screw
• Meets Federal Specification WC-596F requirements and is UL listed
• Limited 10-year warranty

Compatibility

Designed as an OEM-style specification-grade replacement or new-installation duplex outlet for standard single-gang electrical boxes accepting NEMA 5-15R devices.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit at the breaker panel and verify the absence of voltage with a meter before beginning any wiring work. Back-wiring holes accept solid or stranded conductors as permitted by the device rating — verify conductor size compatibility before terminating. Torque terminal screws to the value marked on the device or listed in the installation sheet supplied with the product.
