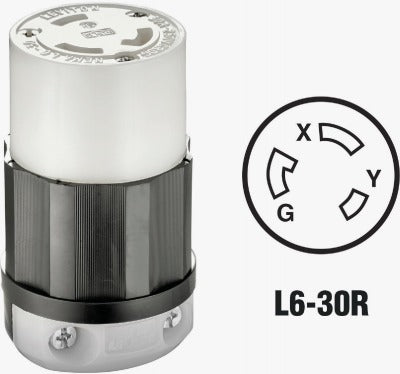

Leviton R61-C2623-0BX Locking Connector 30A 250V L6-30R

Product Description

The LEVITON MFG CO R61-C2623-0BX is a 2-pole, 3-wire grounding locking connector rated at 30 amps and 250 volts, configured to the NEMA L6-30R twist-lock standard. This connector secures the mating plug with a quarter-turn locking action, preventing accidental disconnection under vibration or load. It is designed for use in industrial, commercial, and heavy-duty trade applications where a secure, reliable electrical connection is required. Electricians and maintenance technicians install this type of connector as the female cord-end or outlet-side termination in power distribution, generator hookups, and equipment wiring assemblies.

This connector is suited for 240-volt single-phase circuits in commercial and light industrial environments. Typical applications include temporary power distribution for generators, portable equipment feeds, and HVAC or refrigeration equipment wiring where a twist-lock connection is specified. The L6-30R configuration is a widely used standard for 30-amp, 250-volt locking connections, making this connector a common replacement or upgrade component in service and maintenance work. The package includes 3 connectors per unit.

Key Features

• 30-amp, 250-volt rating for heavy-duty single-phase circuits
• NEMA L6-30R twist-lock configuration prevents accidental disconnection
• 2-pole, 3-wire grounding design provides a dedicated equipment ground path
• Female locking connector suitable for cord-end or outlet-side termination
• Packaged in quantities of 3 per unit for service and maintenance stock

Compatibility

Designed as an OEM-style replacement or standard locking connector for 30-amp, 250-volt 2-pole 3-wire NEMA L6-30R applications in commercial and industrial electrical systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit before making any wiring connections. Ensure conductor sizing and insulation rating are appropriate for the 30-amp, 250-volt circuit. Do not exceed the connector's rated amperage or voltage.
