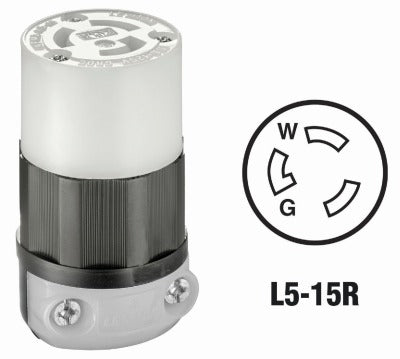

Leviton R61-04729-0BX Locking Connector 15A 125V L5-15R

Product Description

The LEVITON MFG CO R61-04729-0BX is a locking connector rated at 15 amps and 125 volts, configured to the NEMA L5-15R standard with a 2-pole, 3-wire grounding arrangement. This connector secures the plug in place via a twist-lock engagement, preventing accidental disconnection under load or vibration. It is designed for use on the cord or equipment end of a wiring assembly where a reliable, grounded locking connection is required. Licensed electricians and facility maintenance technicians typically install this type of connector in portable power distribution systems, temporary power setups, and light commercial or residential electrical applications where a standard straight-blade connection is not suitable.

This locking connector is suited for portable generators, transfer switch circuits, and temporary power cords operating at 125 volts on 15-amp circuits. The L5-15R configuration makes it compatible with matching NEMA L5-15 twist-lock plugs and inlets. The package contains 3 connectors per unit, making it practical for service vans and shop stock. It is appropriate for both residential and light commercial electrical work where secure, vibration-resistant cord connections are needed.

Key Features

• NEMA L5-15R twist-lock configuration prevents accidental plug disengagement
• 15-amp, 125-volt rating suitable for standard single-phase portable power circuits
• 2-pole, 3-wire grounding design provides a code-compliant grounded connection
• Packaged in quantities of 3 for efficient restocking and field use
• Connector-end termination for cord or equipment wiring assemblies

Compatibility

Designed as an OEM-style replacement or standard-stock locking connector for use with NEMA L5-15 twist-lock plug and inlet systems on 15-amp, 125-volt circuits.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize the circuit and verify zero voltage with a meter before disassembling any connector body. Ensure conductor terminations are fully seated and secured before reassembling the connector housing. Do not exceed the 15-amp current rating of the connector.
