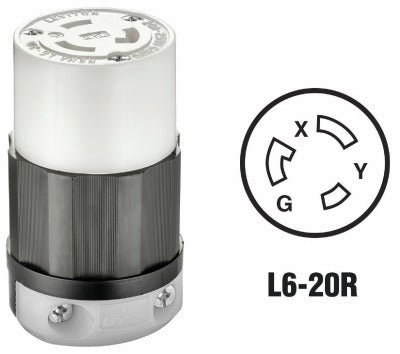

Leviton R61-02323-0BX Locking Connector 20A 250V L6-20R 3-pack

Product Description

The LEVITON MFG CO R61-02323-0BX is a NEMA L6-20R locking connector rated for 20 amps and 250 volts. It features a 2-pole, 3-wire grounding configuration designed to maintain a secure, twist-lock connection under load. This connector is used on the cord or cable end of a wiring assembly to provide a reliable, grounded power interface in demanding electrical installations. Each package contains three connectors. Licensed electricians and electrical contractors are the primary installers for this type of device in commercial and industrial settings.

This locking connector is suited for commercial, industrial, and light-duty equipment applications where a 250-volt, 20-amp grounded circuit is required. Typical uses include portable generators, HVAC equipment, industrial machinery, and other hardwired or cord-connected loads that benefit from a secure, vibration-resistant twist-lock connection. The L6-20R configuration is a widely used NEMA standard in equipment rooms, data centers, and mechanical spaces.

Key Features

• NEMA L6-20R locking configuration provides a twist-lock secure fit to prevent accidental disconnection
• Rated 20 amps at 250 volts for compatibility with standard 20A 250V branch circuits
• 2-pole, 3-wire grounding design meets grounding requirements for equipment protection
• Sold as a package of 3 connectors for convenience on multi-unit jobs
• Connector (cord-end) style for use on flexible cable or cord assemblies

Compatibility

Designed as an OEM-style replacement or standard cord-end connector for use with NEMA L6-20 locking wiring devices and receptacles rated at 20 amps and 250 volts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize the circuit and verify zero voltage with a meter before opening any wiring connections. Follow the connector manufacturer assembly instructions for proper conductor termination and strain relief. Do not exceed the rated amperage or voltage of the device.
