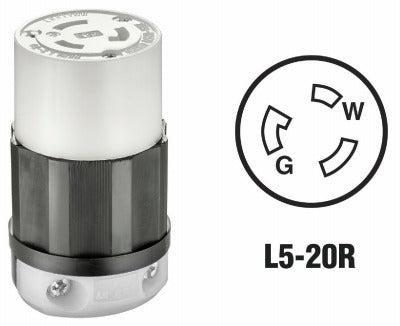

Leviton R61-02313-0BX Locking Connector 20A 125V L5-20R

Product Description

The LEVITON MFG CO R61-02313-0BX is a 20-amp, 125-volt locking connector configured to the NEMA L5-20R standard with a 2-pole, 3-wire grounding arrangement. Locking connectors use a twist-and-lock blade design that keeps the connection secured under load, reducing the risk of accidental disconnection in demanding service environments. This connector is rated at 20 amps and 125 volts, making it suitable for portable power distribution, generators, and temporary power applications. Electricians and electrical contractors install this type of device when a secure, vibration-resistant connection is required beyond what a standard straight-blade connector provides. The package contains 3 connectors per unit of measure.

This connector is appropriate for commercial and light industrial electrical installations where NEMA L5-20R locking-type devices are specified. Common applications include generator output connections, power distribution cords, portable tools, and temporary power setups on job sites. The 3-wire grounding configuration provides an equipment ground path consistent with NEC requirements for grounding-type locking devices. It is field-wired by licensed electricians and is well-suited for use in facilities requiring frequent connect and disconnect cycles without compromising connection integrity.

Key Features

• NEMA L5-20R locking configuration for secure twist-lock engagement
• 20-amp, 125-volt rating suitable for portable power and generator applications
• 2-pole, 3-wire grounding design meets NEC equipment grounding requirements
• Twist-and-lock blade retention resists accidental disconnection under load or vibration
• Sold in a package of 3 connectors per unit

Compatibility

Designed as an OEM-style replacement or standard-service locking connector compatible with NEMA L5-20R locking inlets and receptacles rated at 20 amps and 125 volts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit and verify with a voltage tester before making any wiring connections. Follow the connector body markings for proper terminal identification during field wiring. Do not exceed the 20-amp or 125-volt ratings of this device.
