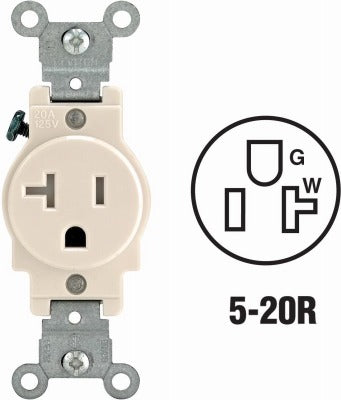

Leviton R56-T5020-0TS 20A Tamper-resistant Single Outlet

Product Description

The LEVITON MFG CO R56-T5020-0TS is a commercial-grade, tamper-resistant single grounding receptacle rated at 20 amps. It is constructed from nylon and features an internal shutter mechanism that blocks contact access unless a standard 2-prong plug is fully inserted simultaneously on both sides. This design prevents foreign objects such as hairpins and keys from making contact with live terminals. Electricians install this receptacle in commercial and light-industrial settings where NEC tamper-resistant requirements apply. The large-head terminal screw accepts up to No. 10 copper wire, and triple wire power contacts deliver reliable conductivity and plug retention throughout the service life of the device.

This receptacle is intended for commercial-grade applications where tamper-resistant outlets are required by code, including schools, healthcare facilities, hotels, and public spaces. The narrow body profile fits standard single-gang boxes. Back and side wiring options give installers flexibility in tight box conditions. Break-off tabs allow straightforward 2-circuit conversion when the wiring layout requires it. The washer-type break-off plaster ears support flush alignment during finish work. This product is sold in a package quantity of 10 units, making it practical for multi-outlet rough-in work.

Key Features

• Tamper-resistant shutter mechanism blocks contact access without simultaneous 2-prong insertion
• Commercial-grade nylon construction for durability in high-use environments
• Large-head terminal screw accepts up to No. 10 copper wire for back and side wiring
• Triple wire power contacts for maximum conductivity and plug retention
• Break-off tabs enable easy 2-circuit conversion
• Heavy-gauge rust-resistant steel mounting strap with captive mounting screws
• Washer-type break-off plaster ears for flush wall alignment

Compatibility

Designed as a commercial-grade tamper-resistant replacement or new-installation receptacle for standard single-gang electrical boxes in 20-amp branch circuits.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and all applicable local codes. De-energize the branch circuit at the panel and verify absence of voltage with a meter before wiring. Back and side wiring terminals are both available; do not exceed No. 10 copper wire on the terminal screws. Captive mounting screws are pre-attached to the mounting strap to prevent loss during installation.
