Leviton R55-00275-00E 30A 50A 4-wire Plug Nema 14-30P 14-50P

Product Description

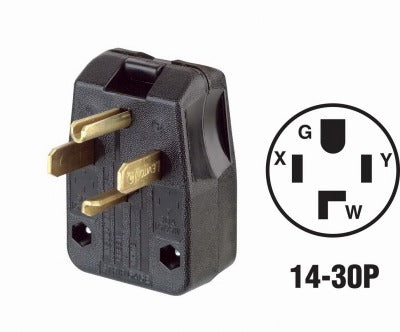

The LEVITON MFG CO R55-00275-00E is a dual-rated, right-angle dead front plug designed for 30-amp and 50-amp grounding applications at 125/250 volts. It includes an L-shaped 30A blade (NEMA 14-30P) and a flat 50A blade (NEMA 14-50P) within a single housing. A built-in rejection feature prevents the cover from closing if any blade is incorrectly seated, reducing wiring errors in the field. Zinc-plated steel screws and a hinged shell-and-bottom construction speed up assembly. This plug ships as a rack pack of 5 units and is both UL Listed and CSA Listed. Licensed electricians and electrical contractors are the primary installers.

This plug is suited for residential and light commercial wiring applications where NEMA 14-30P or NEMA 14-50P service connections are required, such as electric ranges, dryers, EV charging circuits, and generator inlet connections. Cord clamp compatibility covers No. 14, 12, 10, 8, and 6 AWG round cord as well as No. 10/3 SRDT, 8/2-10/1 SRDT, and 6/2-8/1 flat wire. Cord diameter acceptance ranges from 0.750 inches to 1.125 inches, accommodating a broad range of supply cords used in these load types.

Key Features

• Dual-rated for both 30A NEMA 14-30P and 50A NEMA 14-50P configurations in one plug body
• Built-in rejection feature blocks cover closure when any blade is incorrectly positioned
• Right-angle, dead front design reduces strain on the cord exit point
• Hinged shell and bottom for faster field assembly
• Accepts cord diameters from 0.750 inches to 1.125 inches across multiple AWG sizes and cord types
• UL Listed and CSA Listed; zinc-plated steel hardware throughout
• Sold as a rack pack of 5 units per package

Compatibility

Designed as an OEM-style wiring device for circuits requiring NEMA 14-30P or NEMA 14-50P grounding plugs at 125/250 volts. Compatible with No. 14, 12, 10, 8, and 6 AWG round cord and No. 10/3 SRDT, 8/2-10/1 SRDT, and 6/2-8/1 flat wire cord types as specified by the manufacturer.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit before disassembling or terminating the plug. Verify blade positioning is correct and confirm the rejection feature allows full closure before placing the assembly into service. Do not exceed the rated amperage or voltage for the blade configuration being used.
