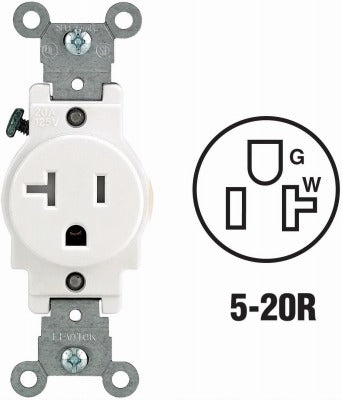

Leviton R52-T5020-0WS 20A Tamper-resistant Receptacle 10-pack

Product Description

The LEVITON MFG CO R52-T5020-0WS is a commercial-grade, tamper-resistant single grounding receptacle rated at 20 amps and finished in white. Built from heavy-duty nylon, it incorporates an internal shutter mechanism that blocks access to the contacts unless a two-prong plug is simultaneously inserted into both slots. This design prevents foreign objects such as hairpins or keys from making contact with live terminals. Electricians install this receptacle in commercial and residential applications where code compliance with NEC tamper-resistance requirements is mandatory. The large-head terminal screw accepts up to No. 10 copper wire, and triple wire power contacts deliver maximum conductivity and reliable plug retention.

This receptacle is well suited for schools, healthcare facilities, hotels, and any commercial or residential installation where the NEC mandates tamper-resistant protection at 15- or 20-amp branch circuits. The narrow body profile fits standard single-gang boxes. Back and side wiring options give installers flexibility in tight box conditions. Break-off tabs allow straightforward conversion to a 2-circuit configuration, making it adaptable to split-circuit wiring layouts. This package contains 10 receptacles, making it practical for new construction or large-scale renovation projects.

Key Features

• Internal shutter mechanism blocks contact access until a two-prong plug is simultaneously inserted in both slots
• Commercial-grade nylon construction rated for 20 amps
• Back and side wiring with large-head terminal screw accepting up to No. 10 copper wire
• Triple wire power contacts for enhanced conductivity and plug retention
• Captive mounting screws and washer-type break-off plaster ears for fast, flush installation
• Break-off tabs for easy 2-circuit conversion
• Heavy-gauge rust-resistant steel mounting strap
• Limited 10-year warranty

Compatibility

Designed for use in standard single-gang electrical boxes on 20-amp branch circuits in commercial and residential installations requiring NEC-compliant tamper-resistant receptacles.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always de-energize the circuit at the breaker panel and confirm the absence of voltage with a calibrated tester before wiring. Both back-wire and side-wire terminals are available — use only one method per conductor. Secure the mounting strap to the box using the captive screws, and break off the plaster ears only if flush alignment requires it.
