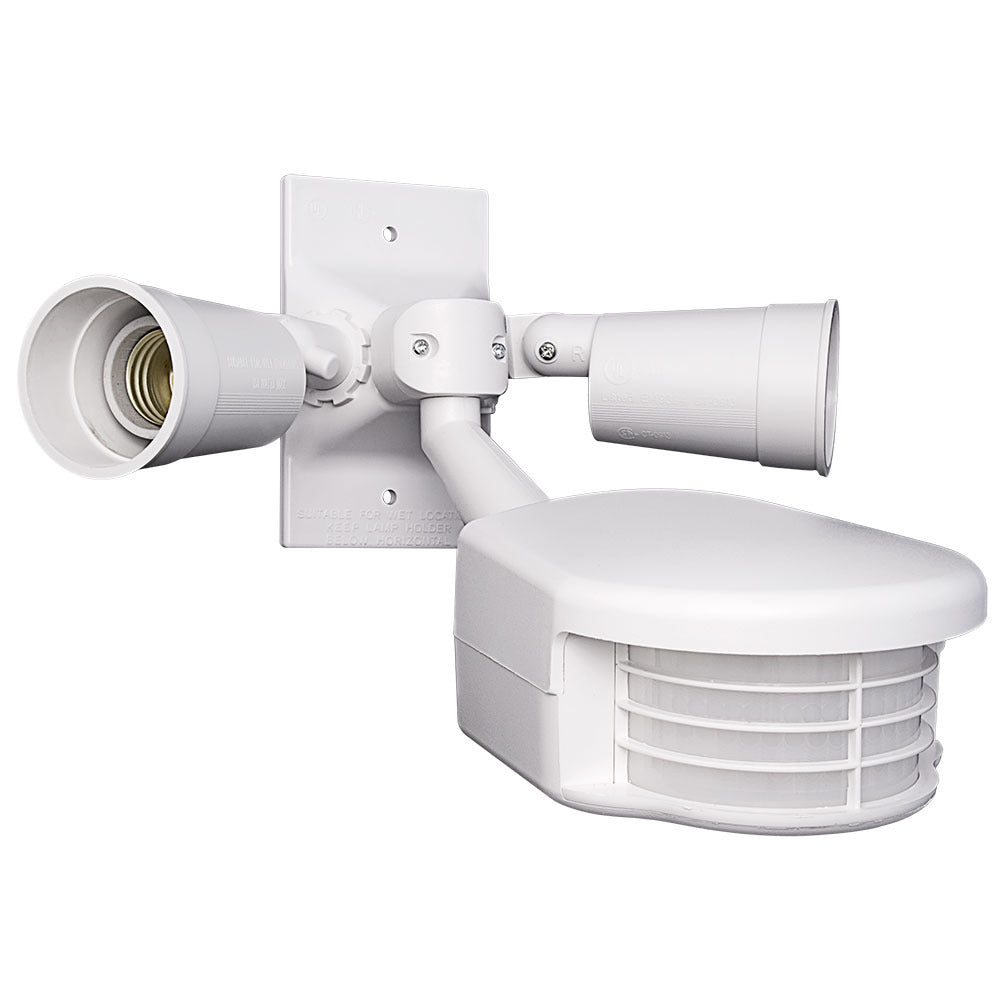

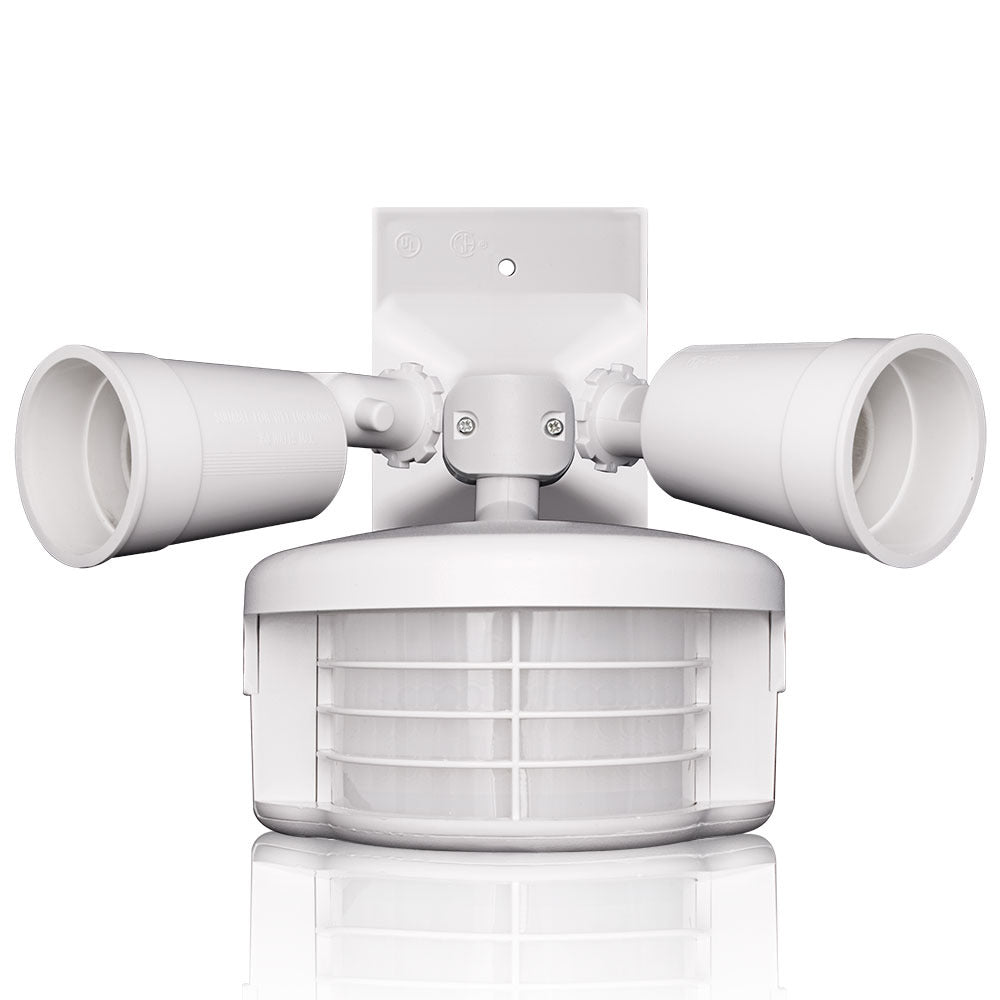

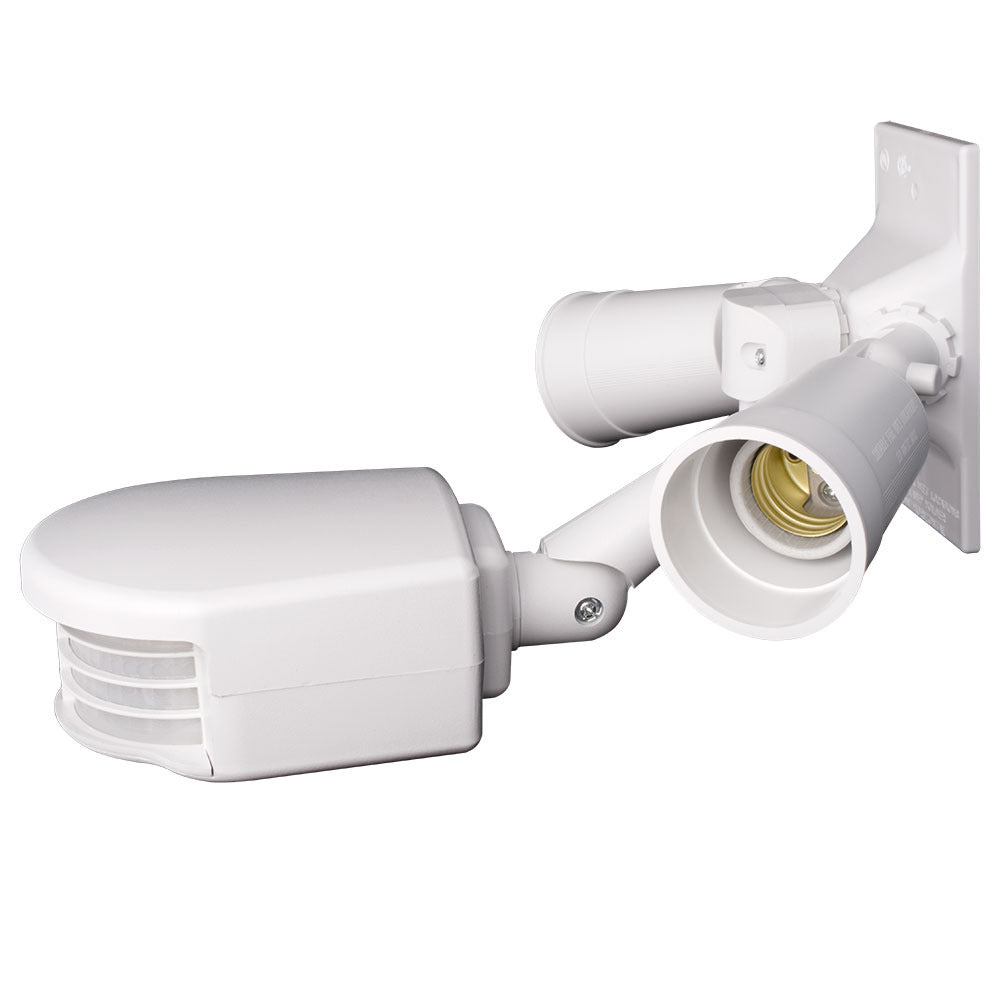

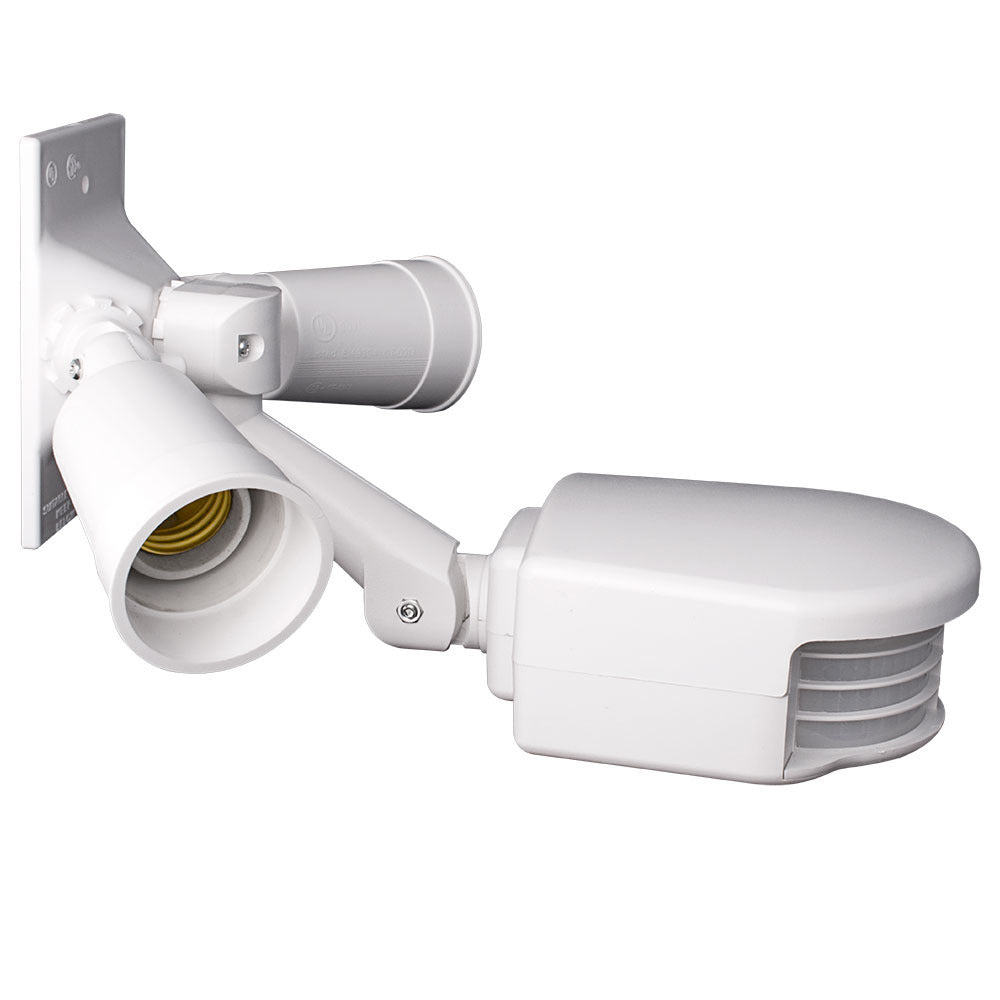

Leviton PS200-7FW 1000W 277-Volt AC PIR 200 Degree 4000 Sq.-Feet Coverage

Product Description

Leviton PS200-7FW is a motion sensor designed for outdoor applications. It operates at 277 volts AC, with a coverage area of 4000 square feet. This passive infrared sensor utilizes a 200-degree sensing angle, making it suitable for wide area surveillance. It is ideal for monitoring parking areas, loading docks, and other commercial settings.

• Provides 4000 square feet of coverage.
• Accommodates operating temperatures from -10 to 55 degrees Celsius.
• Utilizes a rugged UV stabilized plastic for durability.

Product Highlights

This sensor features adjustable sensitivity, surge suppression, and a unique design that accommodates easy installation in various environments.

Product Information

Standard Information

• Catalog Number: PS200-7FW
• Manufacturer: Leviton
• Country of Origin: China

Technical Specifications

• Voltage Rating: 277 VAC
• Amperage Rating: 5/10 A
• Power Rating: 9 W
• Sensing Distance: 4000 sq-ft
• Temperature Rating: -10 to 55 degrees Celsius
• Frequency Response: 60 Hz
• Environmental Conditions: Storage Temperature Range -17 to 55 degrees Celsius; Relative Humidity 0 to 95%
