Product Description

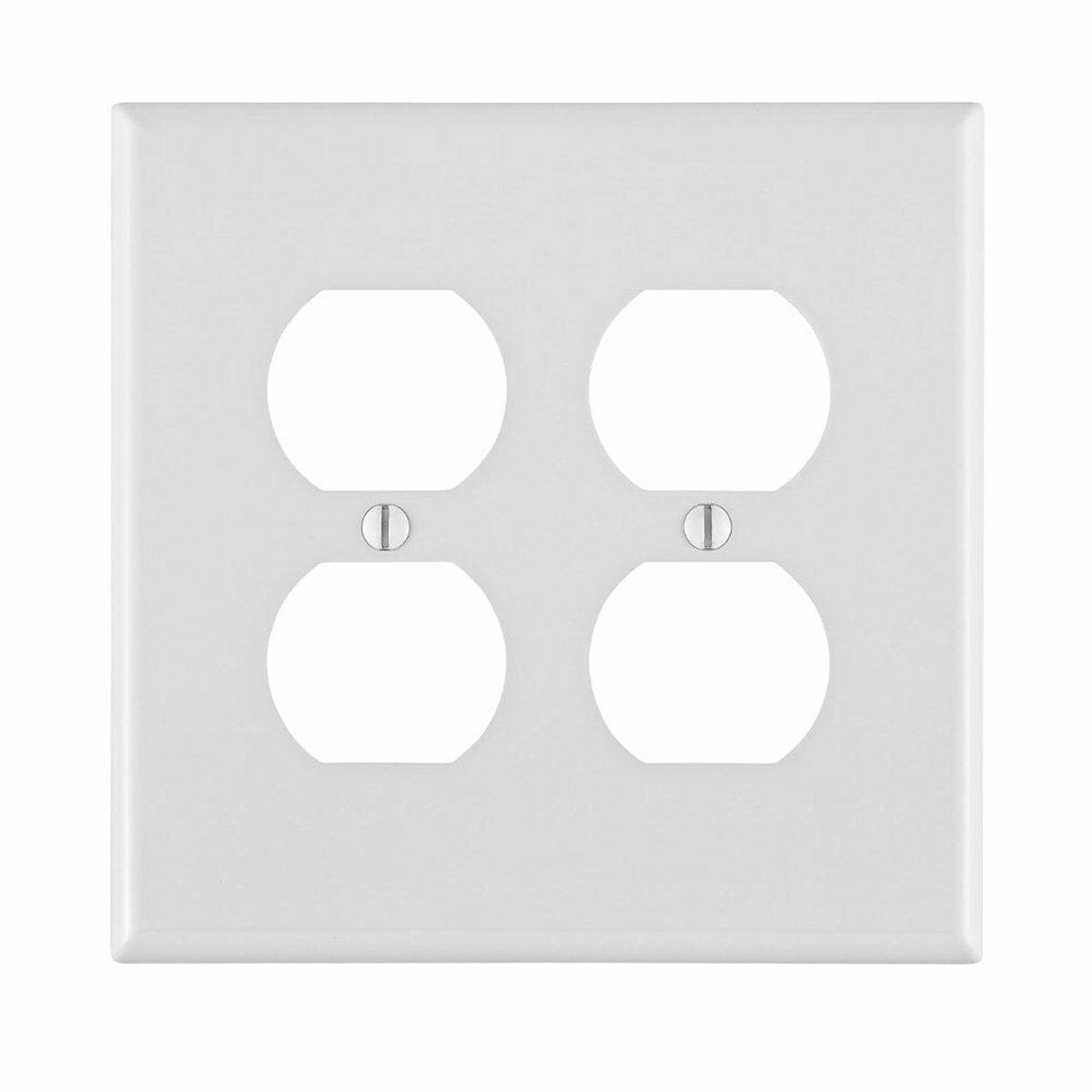

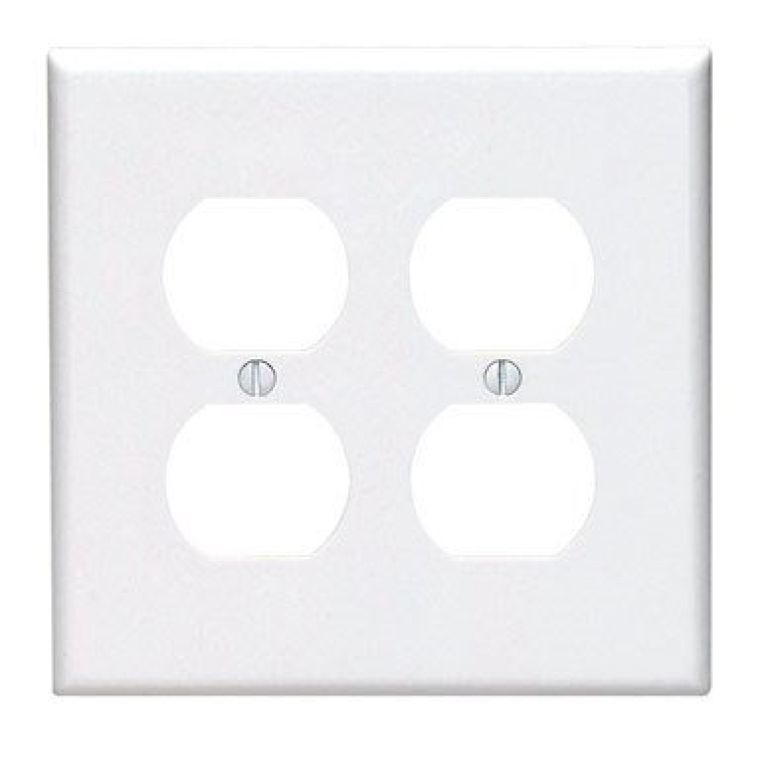

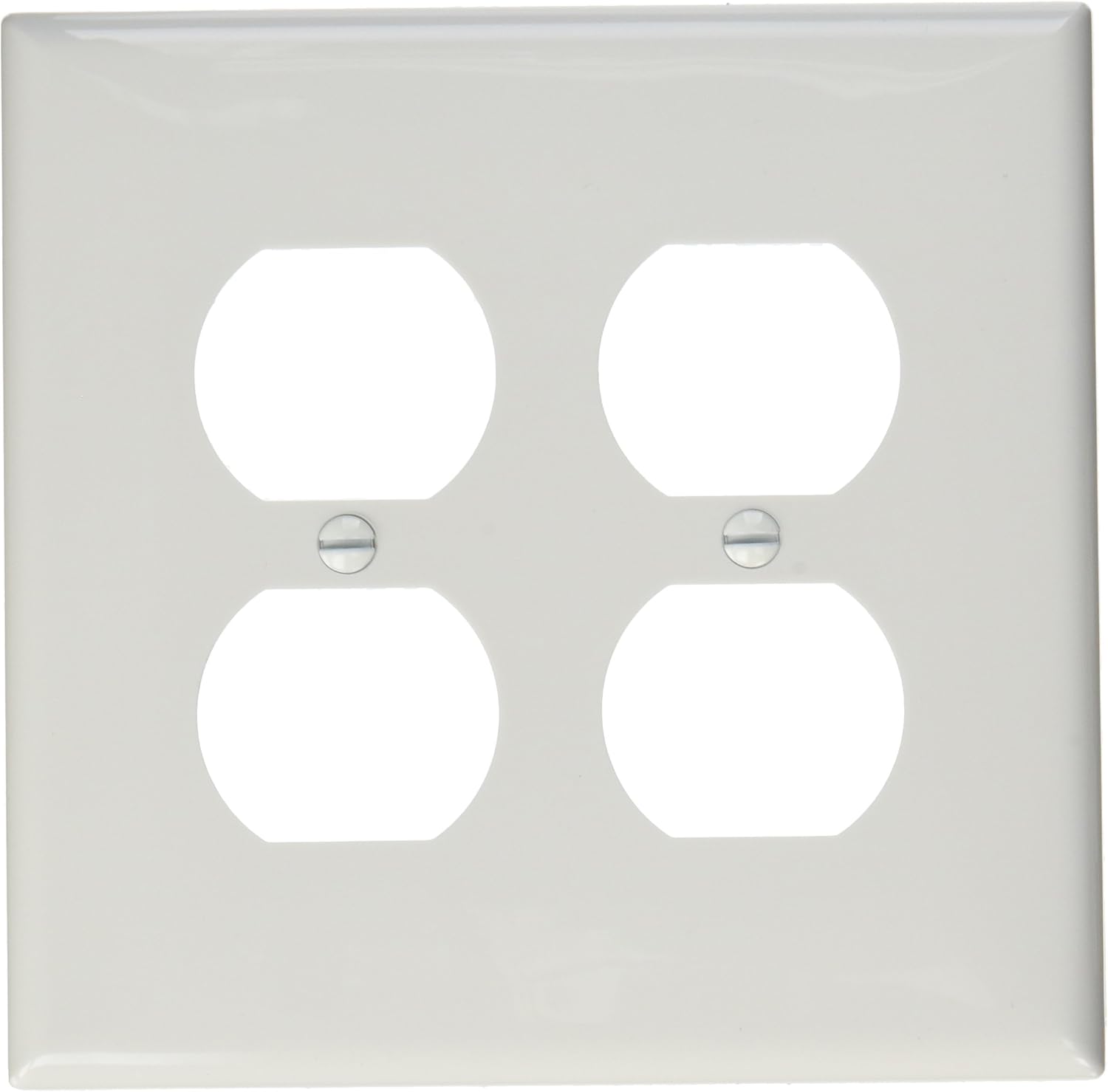

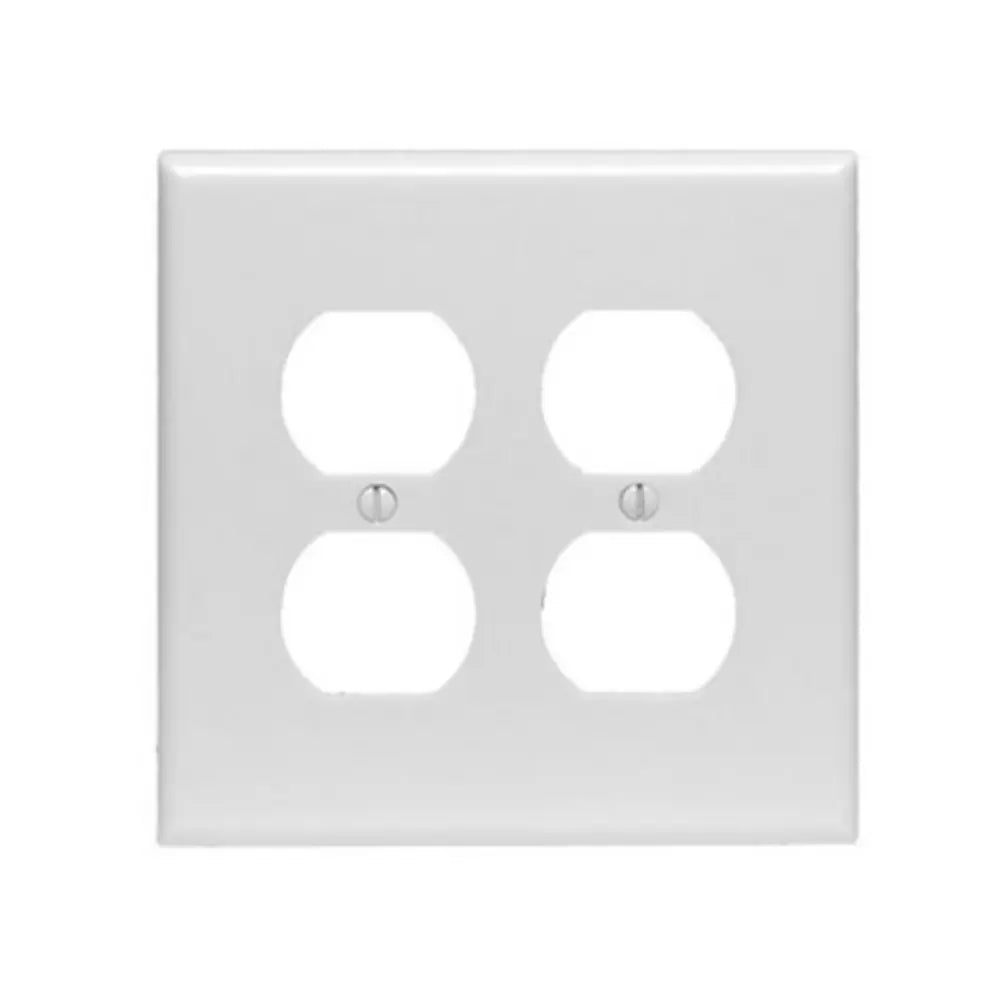

The Leviton PJ82-W is a standard size wall plate designed for covering a 2-gang duplex receptacle. These traditional wallplates are designed for use with traditional Leviton devices. Their clean lines work in virtually any location, whether in new or retrofit construction, and they install quickly and easily.
- Easy to Clean, Smooth Finish
- Non-Combustible
- Color Matched Metal Mounting Screws Supplied
Product Highlights
This wallplate is made of molded thermoplastic for maximum resistance to impact, abrasion, fading and discoloration. It is resistant to mechanical stress associated with high abuse applications.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: PJ82-W
-
Country of Origin: CN
Technical Specifications
-
Color: White
-
Finish: Smooth
-
Material: Thermoplastic/Nylon
-
Configuration: Double
-
Installation Type: Screw-In
-
Batteries Included?: No
-
Batteries Required?: No
-
Included Components: Leviton PJ82-W 2-Gang Duplex Receptacle Wallplate, Midway Size, White
-
Number of Gangs: 2
-
Designated Size: Midway
-
Approval: UL, CSA
-
Mounting Type: Device
-
Includes: Mounting Screw
-
Application: Commercial and Residential Applications
-
Construction: Thermoplastic nylon
-
Size: 4.875 in H x 4.94 in W
-
Gang: 2-Gang
-
Cutout: 0.942 in H x 0.406 in W Duplex Receptacle
-
Orientation: Vertical
-
Mounting: Surface
-
Features: Easy to clean, smooth finish and non-combustible, Resistant to mechanical stress associated with high-abuse applications
-
Standards: UL listed and CSA certified
-
Thickness: 0.255 in
-
Type: Midway Size
-
Brand: LEVITON
-
Width: 4.94 Inches
-
Height: 4.88 Inches
-
Weight: 0.1 Pounds
-
Insulation: Non-Insulated
-
Stock Code: 0216-7473
-
Country of Origin: CN
-
Mfg Standards/Approvals: UL Listed, CSA Certified, ANSI Specified, NEMA Standard, RoHS Compliant
-
Plate Design: Duplex Outlet
-
Outlet Configuration: Duplex
-
Resistance Properties: Impact Resistant
-
Item Height: 0.250
-
Item Length: 4.940
-
Item Width: 4.880
-
Device Type: Duplex Receptacle Wallplate
-
Wallplate Gangs: 2-Gang
-
Wallplate Material: Thermoplastic (Unbreakable)
-
Wallplate Openings: 2-Duplex
-
Wallplate Size: Midway (3/8in. higher & wider)
-
Wallplate Height: 4.88"
-
Wallplate Width: 4.94"
-
Suitable For: Interior, Wall
-
Non-Domestic Product: No
-
Style: Traditional
-
Plate Orientation: Horizontal/Vertical
-
UNSPSC Code: 43223300
-
Number Of Gangs: 2
