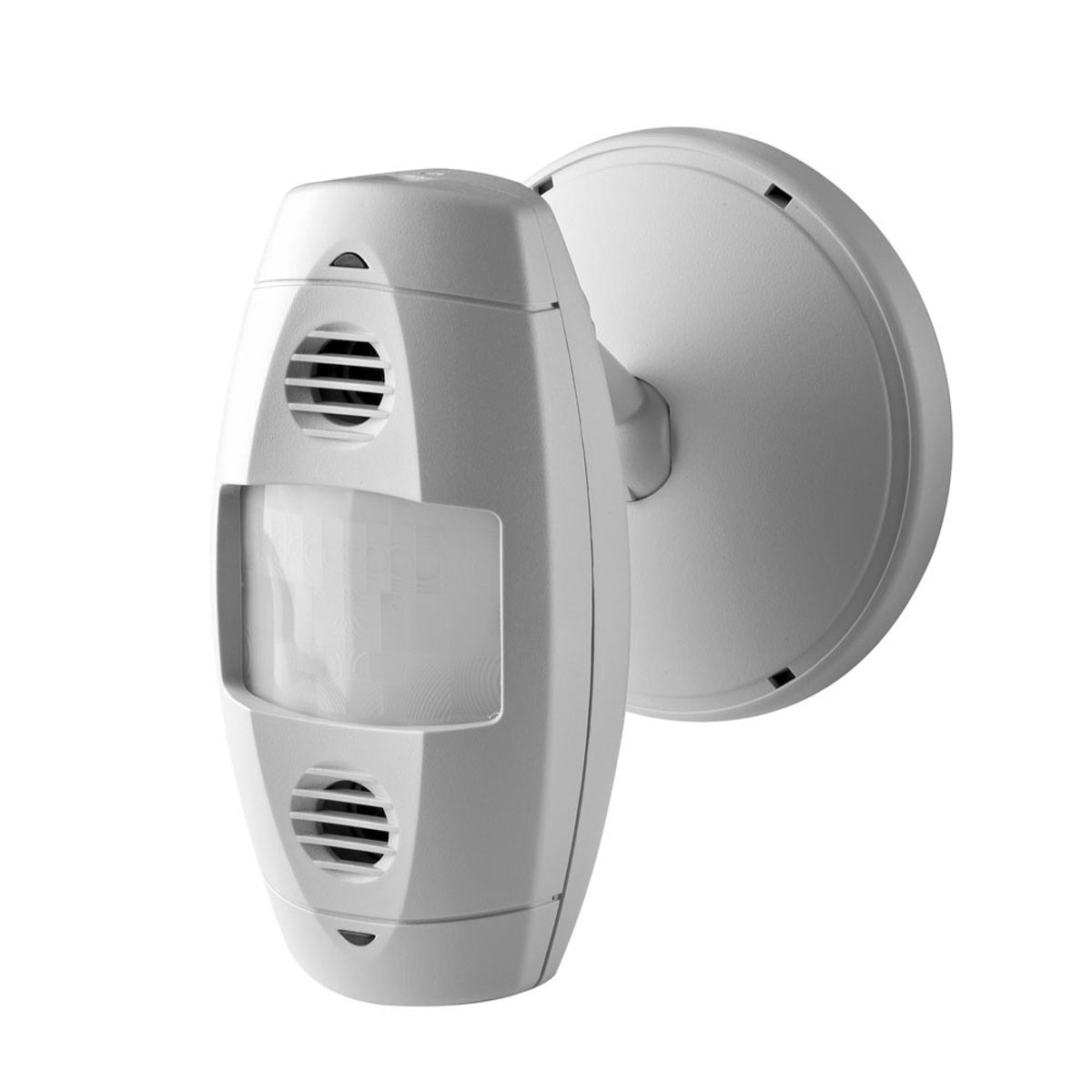

Leviton OSW12-M0W Multi-Technology Self-Adjusting Wall Mount Occupancy Sensor 1200 sq-ft Coverage

Product Description

Leviton OSW12-M0W is a self-adjusting wall mount occupancy sensor. It utilizes multi-technology sensing, including passive infrared (PIR) and ultrasonic technology. This helps to provide a reliable solution for controlling lighting in larger areas, covering up to one thousand two hundred square feet. The sensor operates at twenty-four volts direct current and consumes zero point six watts. With a time delay feature ranging from thirty seconds to thirty minutes, it adjusts automatically to changing occupancy patterns.

• Adjustable swivel neck allows for optimized positioning.
• Ideal for various applications including offices, conference rooms, and restrooms.
• Easy installation using color-coded wiring.

Product Highlights

The OSW12-M0W is designed for commercial applications where effective lighting control is needed. Its combination of technologies ensures that lights remain off when not needed, thereby contributing to energy savings.

Product Information

Standard Information

• Manufacturer: Leviton
• MPN: OSW12-M0W

Technical Specifications

• Power Rating: 0.6 W
• Voltage Rating: 24 VDC
• Coverage Area: 1200 sq-ft
• Viewing Angle: 110 degrees
• Time Delay: 30 seconds to 30 minutes
• Sensor Type: Multi-Technology/PIR/Ultrasonic
• Temperature Rating: 0 to 40 degrees Celsius
• Color: White
