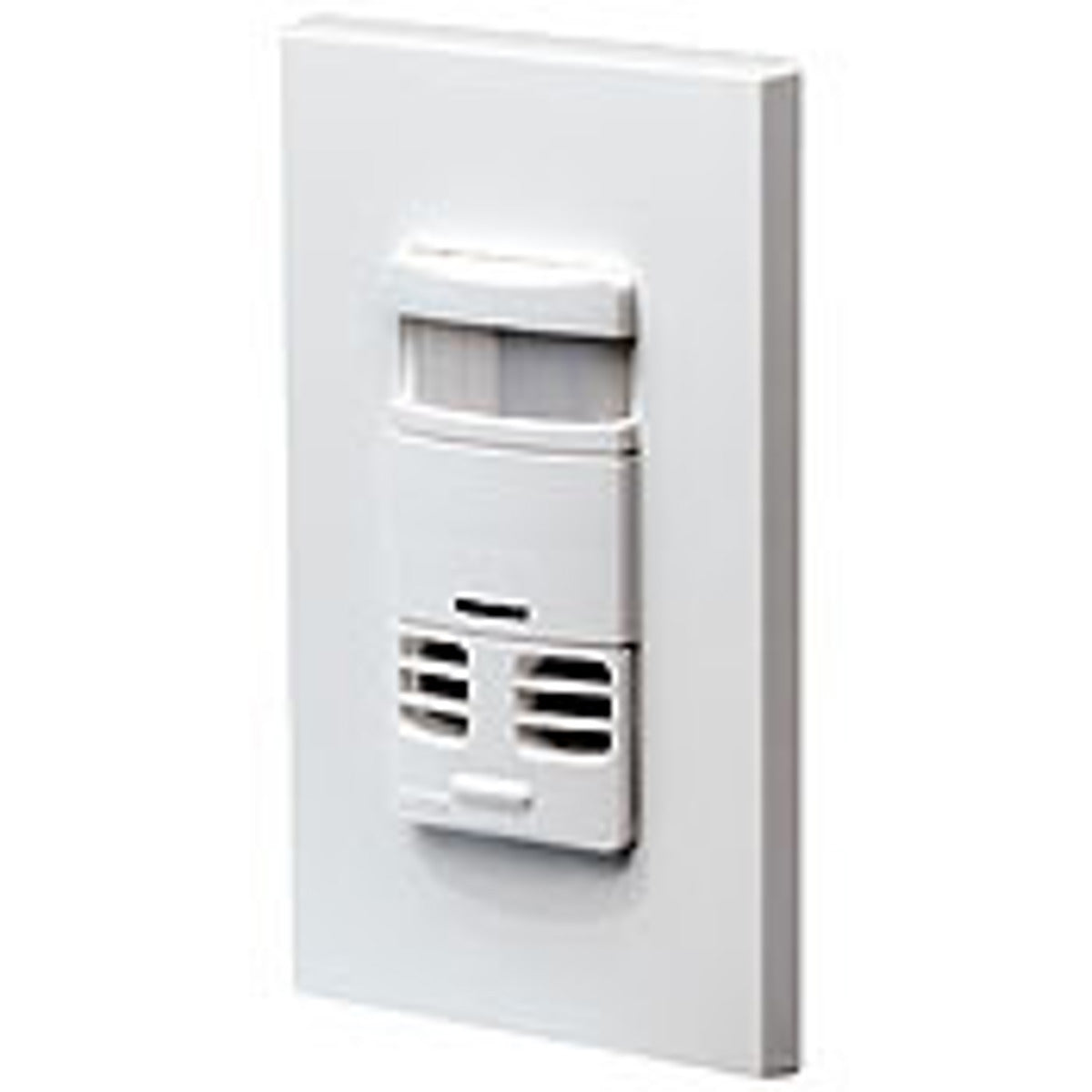

Leviton OSSMT-MDG Ultrasonic/Infrared, Dual-Relay Multi-Technology Wall Switch Sensor, 2400 sq-ft Major & 400 sq-ft Minor Motion Coverage

Product Description

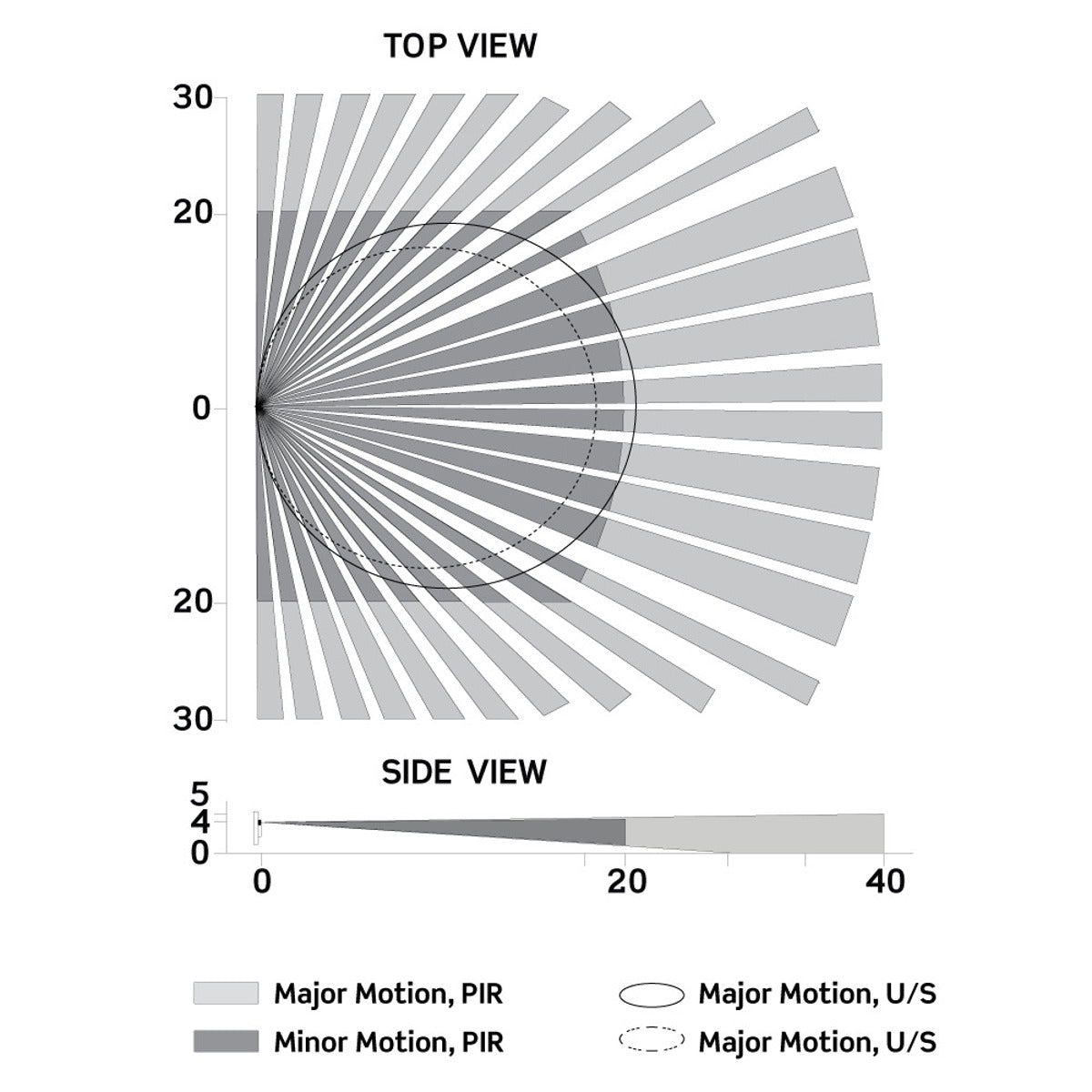

Leviton OSSMT-MDG is a wall switch occupancy sensor that uses multiple technologies for motion detection. This unit operates on voltage ratings of 120, 230, 277, and 347 VAC, making it versatile for commercial applications. With a coverage area of 2400 square feet for major motion and 400 square feet for minor motion, this sensor is suitable for offices, classrooms, restrooms, and other spaces requiring efficient lighting control.

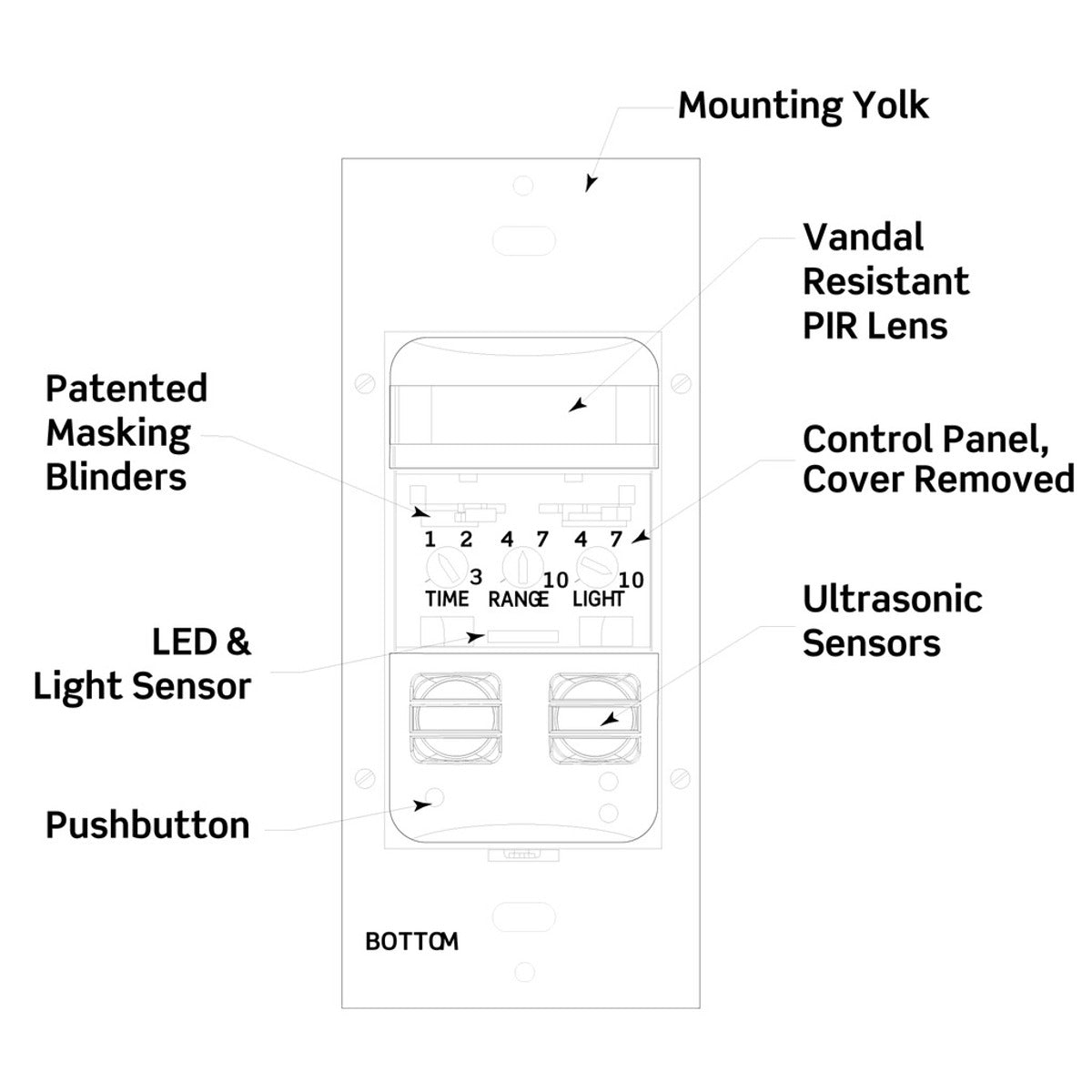

• Fast and simple installation into standard wall boxes.
• Convenient pushbutton for manual ON/OFF light switching.
• Segmented Fresnel lens for improved sensitivity and performance.

Product Highlights

This sensor features a dual-relay technology that optimizes performance and detects both major and minor motion. It offers environmental adaptability with an operating temperature ranging from zero to 40 degrees Celsius, ideal for various indoor settings.

Product Information

Standard Information

• Brand: Leviton
• Application: Commercial

Technical Specifications

• Catalog Number: OSSMT-MDG
• Manufacturer: Leviton
• Power Rating: 190/270/350/390 mW
• Voltage Rating: 120/230/277/347 VAC
• Frequency Rating: 50/60 Hz

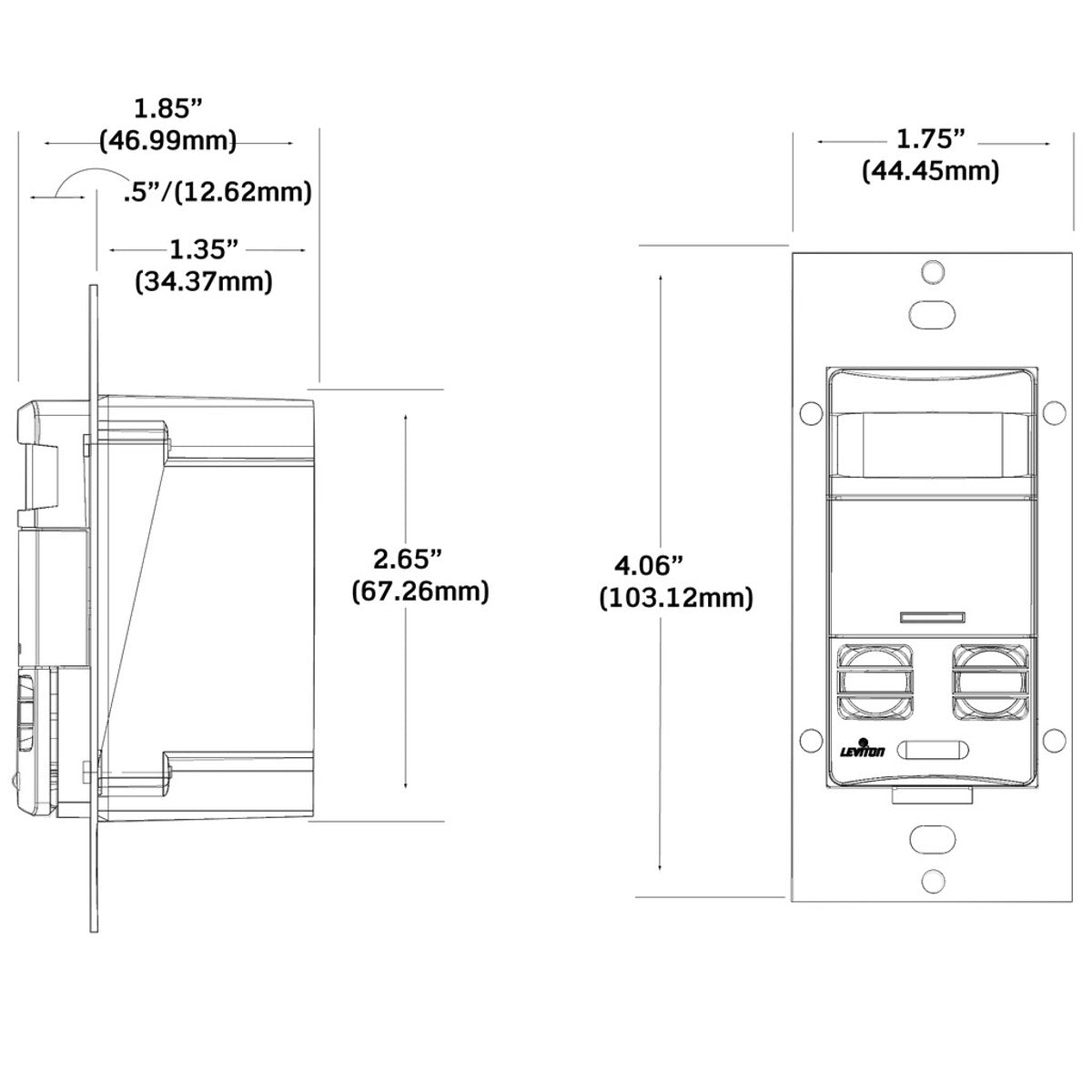

• Dimensions: 46 H x 1.75 W x 1.85 D inches
• Coverage: 2400 square feet
• Mounting Type: Wall
• Response Frequency: 50/60 Hz
• Temperature Rating: 0 to 40 degrees Celsius
• Standards: UL Listed, CSA Certified, Title 24 Compliant
