Leviton OSSMT-MDE Ultrasonic/Infrared Dual-Relay Multi-Technology Wall Switch Sensor 2400 sq. ft. Major & 400 sq. ft. Minor Motion Coverage

Product Description

The Leviton OSSMT-MDE is a multi-technology occupancy sensor designed for wall mounting. It combines ultrasonic and infrared technology to efficiently control lighting in commercial spaces. This sensor covers up to two thousand four hundred square feet for major motion and four hundred square feet for minor motion, making it suitable for a variety of applications.

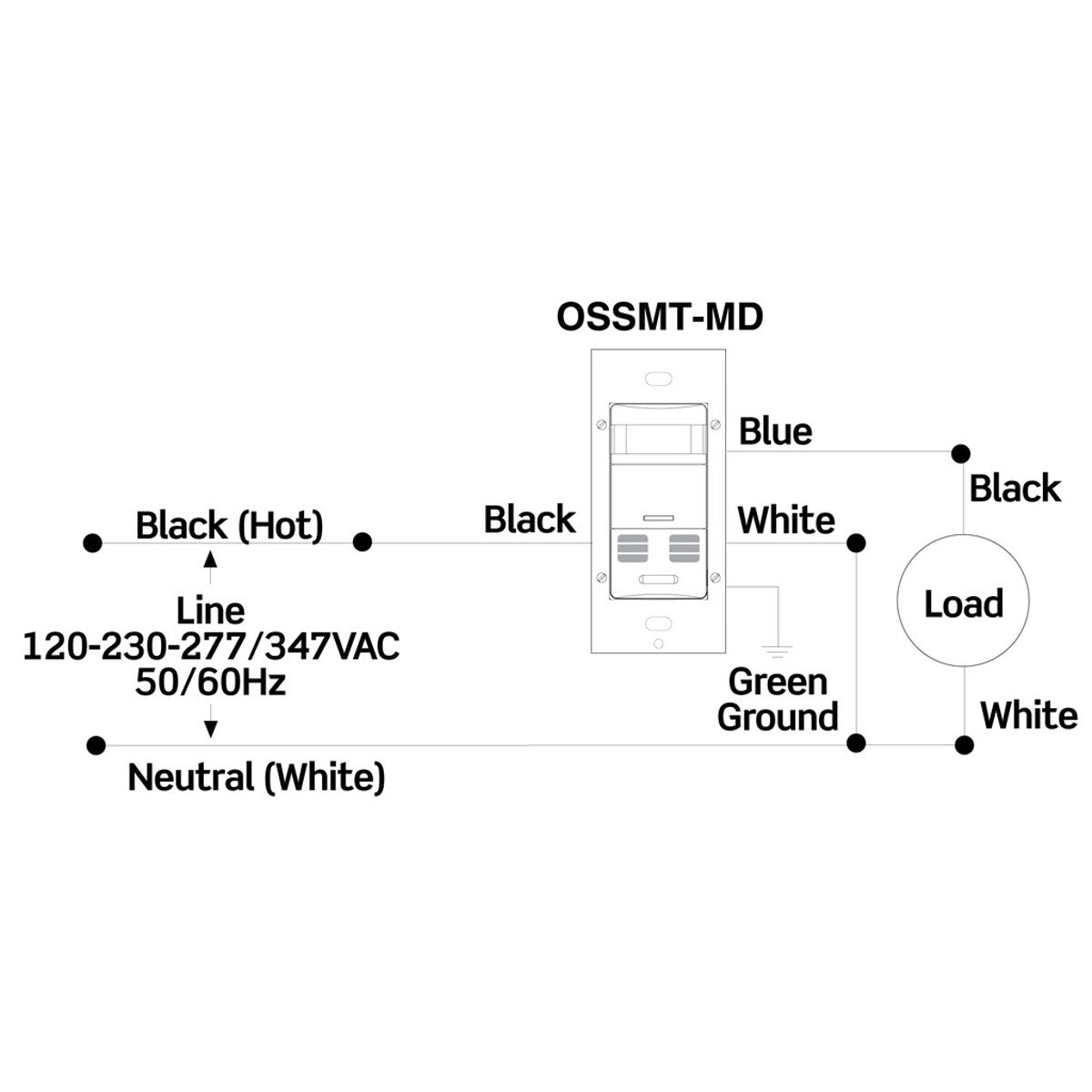

• Compatible with multiple voltages: one hundred twenty, two hundred thirty, two hundred seventy, and three hundred forty-seven VAC.
• Fast installation that fits standard wall boxes, replacing a single-pole switch.
• Includes manual ON/OFF functionality for flexible usage.

Product Highlights

The Leviton OSSMT-MDE is beneficial for energy savings and convenience in offices, classrooms, and other areas with varying occupancy.

Product Information

Standard Information

• Catalog Number: OSSMT-MDE
• Manufacturer: Leviton

Technical Specifications

• Type: 1-Pole Field Configurable Self Adjusting
• Coverage Area: 2400 square feet
• Viewing Angle: 180 degrees

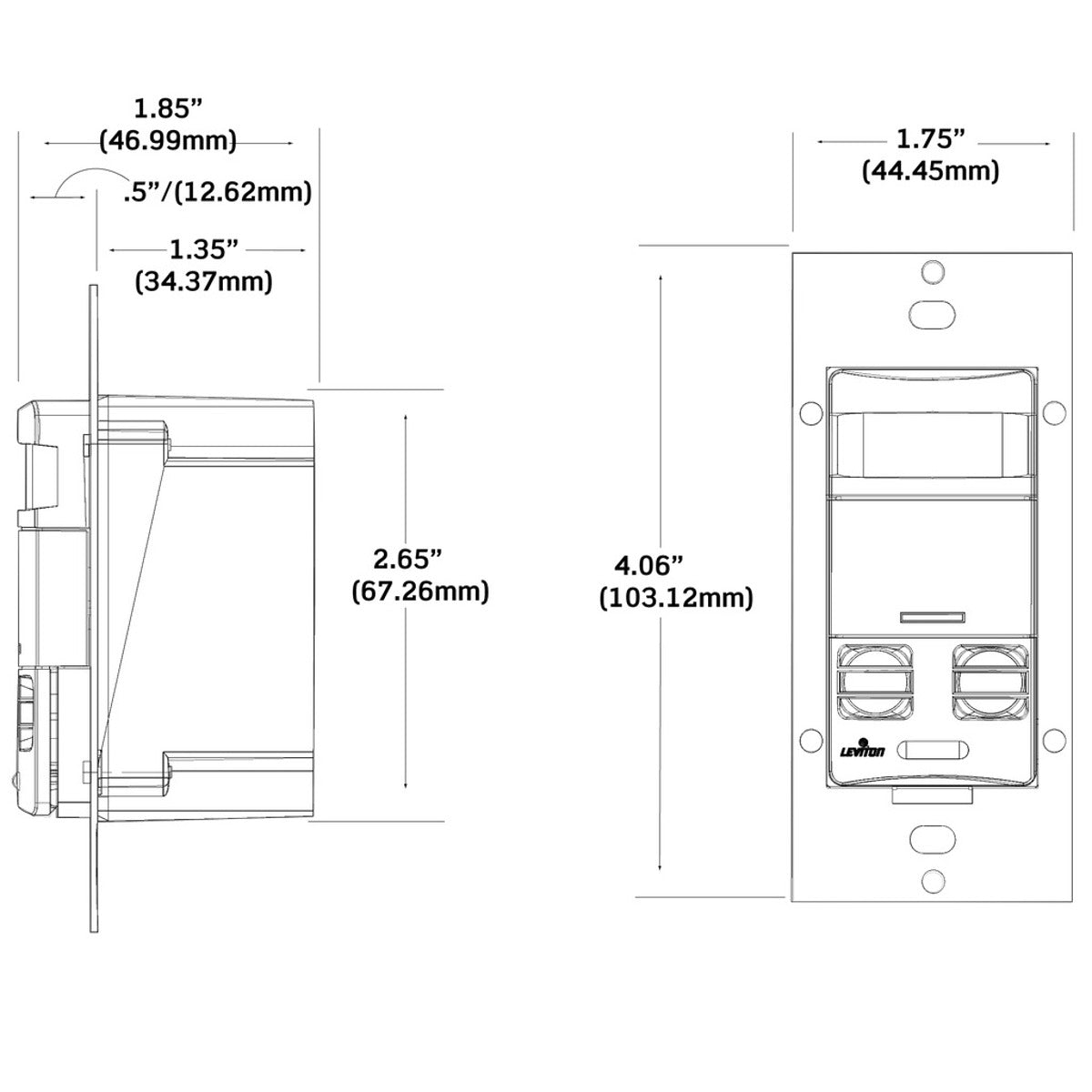

• Dimensions: 46 H x 1.75 W x 1.85 D inches
• Response Frequency: 50/60 Hz
• Control Output: Manual ON/Automatic OFF
• Power Rating: 190/270/350/390 mW
• Mounting Type: Wall
