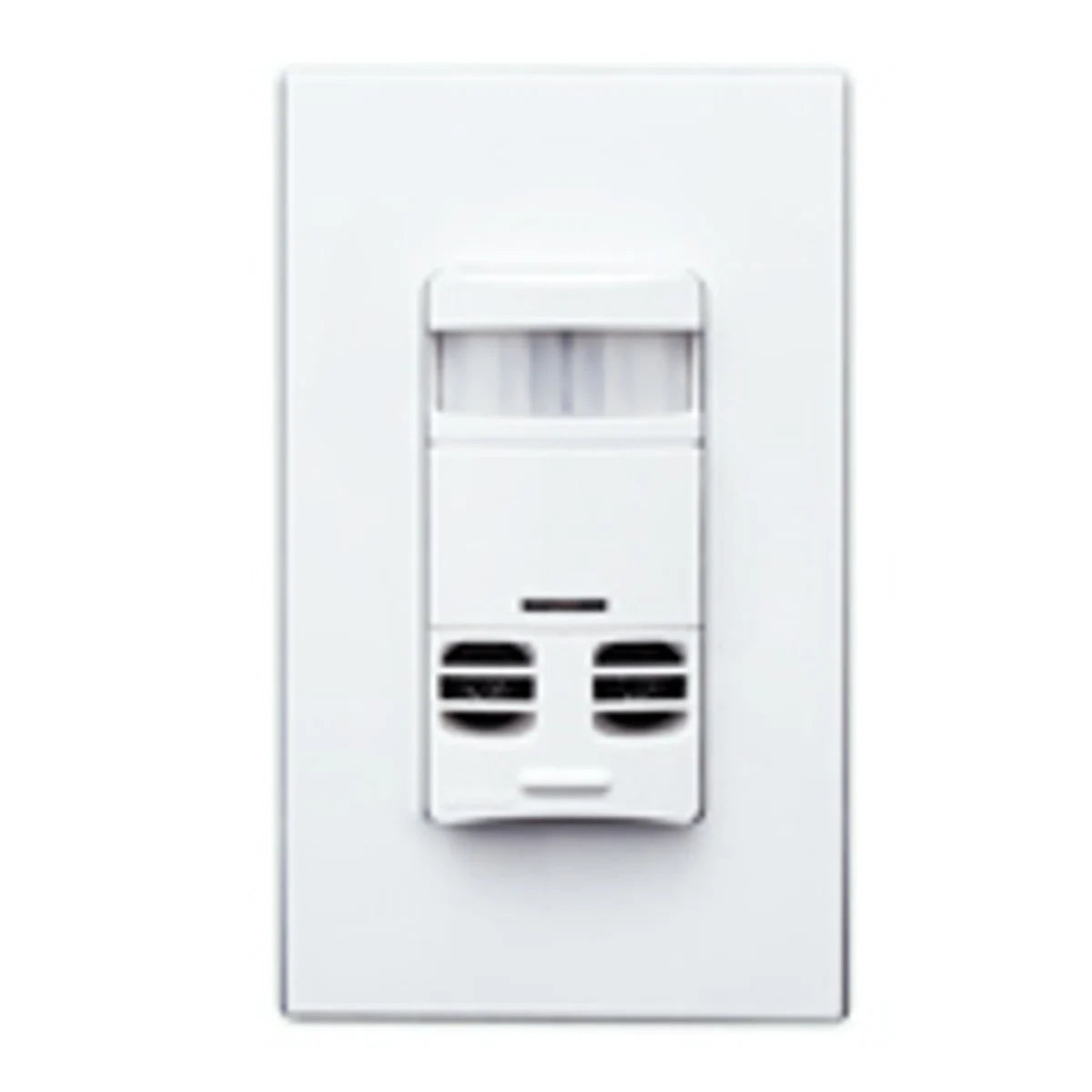

Leviton OSSMT-GDG Ultrasonic/Infrared Multi-Technology Wall Switch Sensor No Neutral 2400 sq. ft. Major & 400 sq. ft. Minor Motion Coverage

Product Description

The Leviton OSSMT-GDG is a multi-technology wall switch sensor designed for efficient lighting control in commercial applications. It operates on 120/230/277/347 VAC and covers up to 2400 square feet for major motion and 400 square feet for minor motion detection. The sensor features both ultrasonic and infrared technology, allowing it to effectively recognize movement within its range.

• Coverage: 2400 sq. ft. major and 400 sq. ft. minor motion
• Voltage: 120/230/277/347 VAC
• Installation: Fits standard wall box and replaces a single-pole switch

Product Highlights

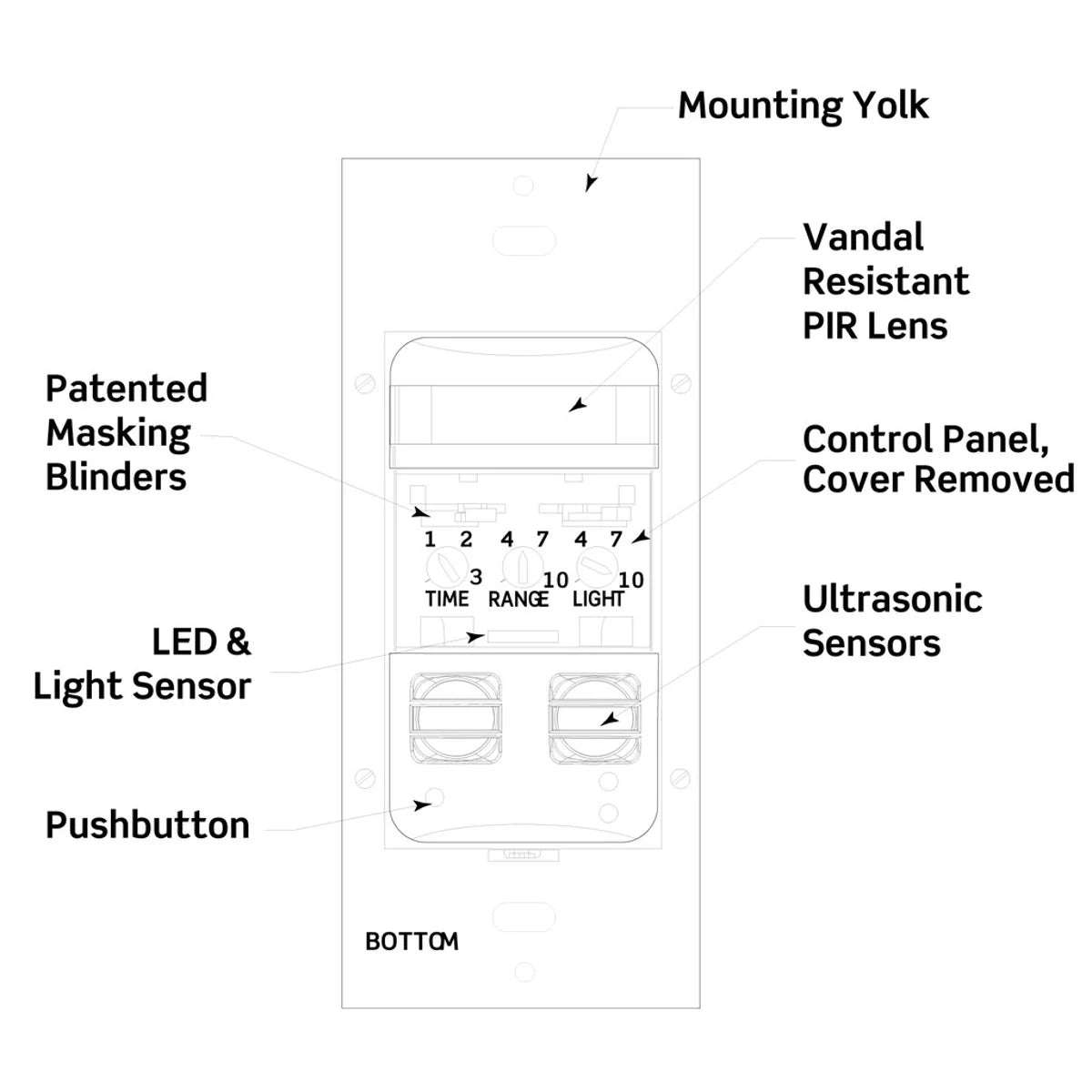

This sensor is useful for applications in private offices, classrooms, and conference rooms. It includes a pushbutton for manual ON/OFF control and features an auto-off function that helps conserve energy. Its compact design promotes easy integration into existing setups.

Product Information

Standard Information

• Manufacturer: Leviton
• Application: Commercial

Technical Specifications

• Catalog Number: OSSMT-GDG
• Frequency Rating: 50/60 Hz
• Mounting: Wall
• Special Features: Fast installation, manual ON/OFF capability, dual technology sensor
• Supply Voltage: 120/230/277/347 VAC
• Environmental Conditions: Operating temperature from 0 to 40 degrees C, storage temperature from -10 to 85 degrees C, humidity of 20% to 90% non-condensing

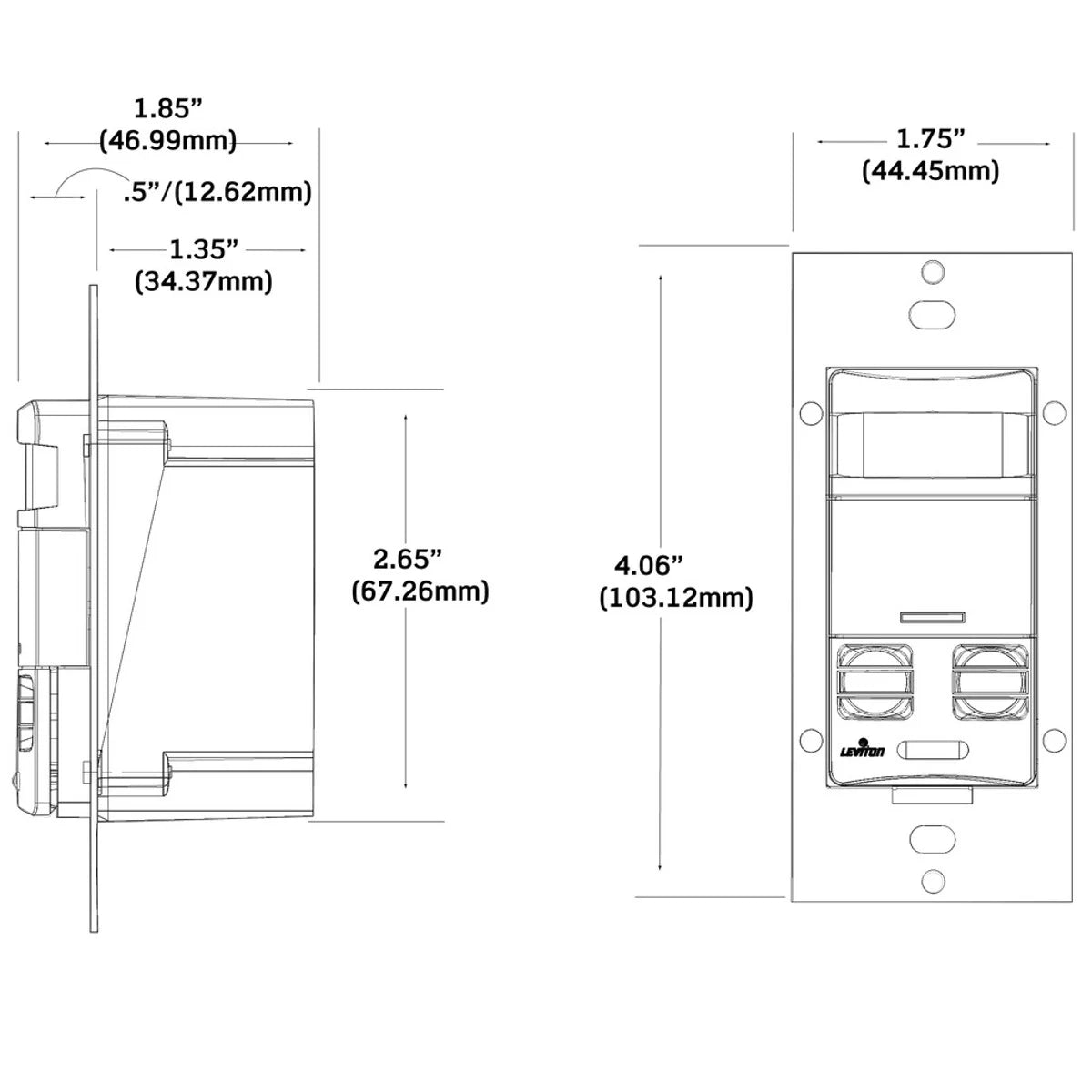

• Dimensions: 46 H x 1.75 W x 1.85 D
• UPC: 078477406991
• Standards: ETL/cETL Listed; CSA Certified; CEC Title 24 Compliant; FCC Compliant
