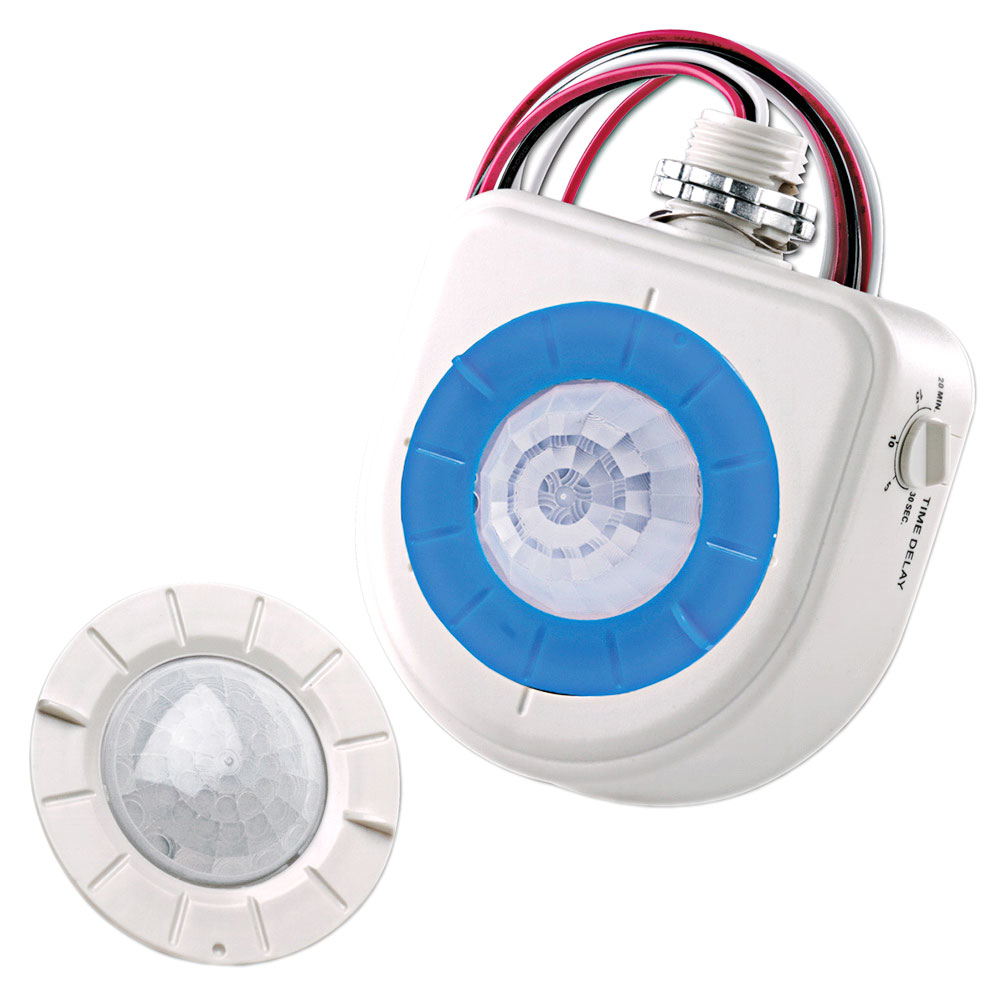

Leviton OSFHU-CTW High Bay Light Fixture Mount Passive Infrared Occupancy Sensor

Product Description

The Leviton OSFHU-CTW is a high bay occupancy sensor designed for commercial lighting control. This sensor operates at 120/230/277/347/240 volt and facilitates occupancy detection in high mounted areas. It utilizes passive infrared technology to manage lighting based on occupancy, thereby reducing energy costs.

• Adjustable coverage area from eight to forty feet.
• Mounting options suitable for high or low bay installations.
• Three interchangeable lenses for versatile applications.

Product Highlights

This sensor features a quick-snap threaded nipple for easy installation. It also includes auto-sensitivity gain, making it efficient across a range of temperatures. The device automatically returns to its last setting after a power outage, enhancing usability.

Product Information

Standard Information

• Brand: Leviton
• Manufacturer: Leviton Mfg Co

Technical Specifications

• Catalog Number: OSFHU-CTW
• Power Rating: 800 to 2000 VA
• Sensor Type: Passive Infrared
• Voltage Rating: 120/230/277/347/240/480 VAC
• Response Frequency: 50/60 Hz
• Temperature Rating: -10 to 71 degrees C
• Dimensions: three and one-half inches H x three and one-half inches W x one and one-fourth inches D
• Warranty Length: 5 years
