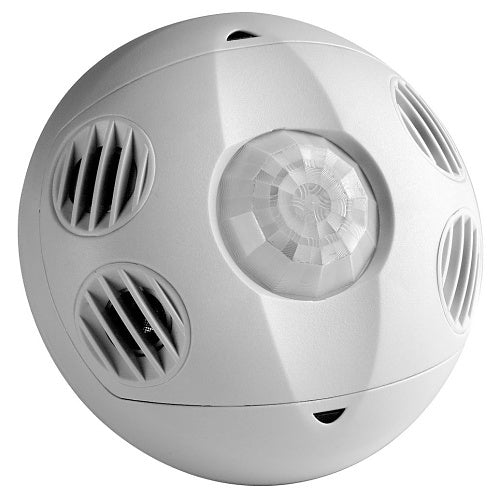

Leviton OSC10-M0W Occupancy Sensor Lighting Control, Ceiling Mount, White

Product Description

The Leviton OSC10-M0W is a ceiling-mounted occupancy sensor designed for lighting control. This sensor operates on twenty-four volts direct current and requires twenty-five milliamps of power. It provides coverage of up to one thousand square feet, making it suitable for various applications.

• Combines passive infrared and ultrasonic technologies.
• Features adjustable time delay settings from thirty seconds to thirty minutes.
• Designed for easy installation with a three-wire connection.

Product Highlights

The sensor is built with a non-volatile memory that retains settings during power outages and features ambient light recognition for efficient operation.

Product Information

Standard Information

• Brand: Leviton
• MPN: OSC10-M0W

Technical Specifications

• Voltage Rating: 24 VDC
• Amperage Rating: 25 mA
• Coverage: 1000 sq ft
• Type: Passive Infrared and Ultrasonic
• Time Delay: 30 s to 30 min
• Dimensions: 4.2 in diameter x 1.571 in depth
• Color: Off-White
• Mounting Type: Ceiling
• Response Frequency: 40 kHz
• Environmental Conditions: Operating humidity (0 to 95) %
• Temperature Rating: 0 to 40 degrees C
