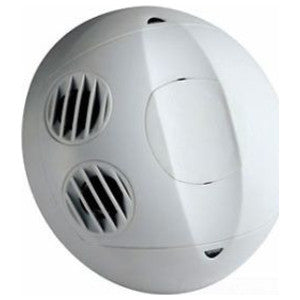

Leviton OSC05-U0W Ceiling Mount Occupancy Sensor Ultrasonic 180 Degree 500 sq ft Coverage

Product Description

The Leviton OSC05-U0W is a ceiling mount occupancy sensor designed for commercial applications. This ultrasonic sensor operates on 24 volts DC with a current consumption of 25mA. It effectively covers an area of up to 500 square feet and features a 180-degree field of view, making it suitable for various spaces including conference rooms, offices, and classrooms.

• Coverage: 500 sq ft area with major motion detection up to twenty-three feet by twenty-three feet.
• Time delay settings adjustable from 30 seconds to 30 minutes.
• Self-adjusting technology eliminates false switching.

Product Highlights

The OSC05-U0W sensor adapts to environmental conditions, ensuring effective operation while minimizing disturbances. It includes features like auto-adapting sensitivity and a test mode for easy setup. This product is compliant with CEC Title 24 regulations.

Product Information

Standard Information

• Brand: Leviton
• MPN: OSC05-U0W

Technical Specifications

• Voltage Rating: 24 VDC
• Amperage Rating: 25 mA
• Coverage Area: 500 sq ft
• Beam Angle: 180 degrees
• Mounting Type: Ceiling
• Response Frequency: 40 kHz
• Temperature Rating: 0 to +40 degrees Celsius
• Application: Commercial
