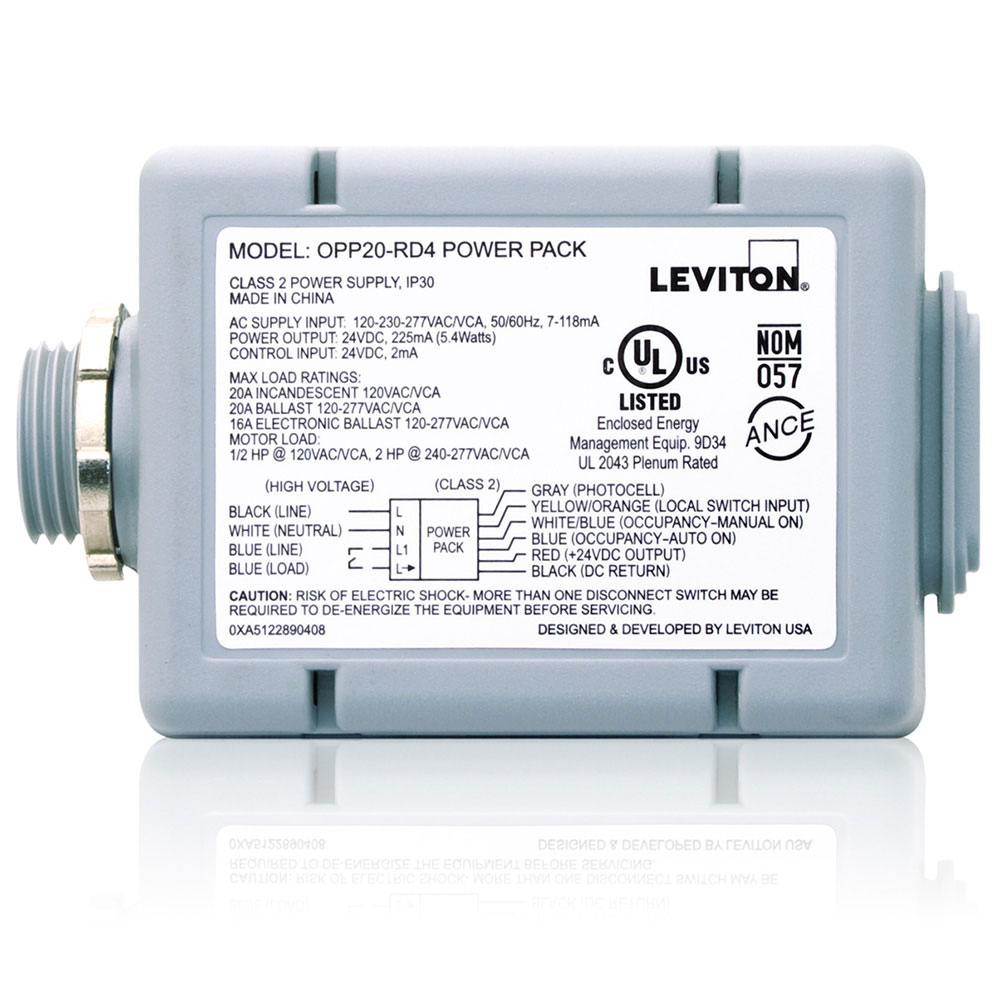

Leviton OPP20-RD4 20A AUTO/MAN ON SW PC 24VDC

Product Description

The Leviton OPP20-RD4 is a 20 Amp power pack designed for controlling occupancy sensors. It supports manual and automatic on/off functions suitable for various applications in the lighting industry.

• Input voltage ranges from one hundred twenty to two hundred seventy-seven VAC.
• Low voltage output at twenty-four VDC with a maximum output of two hundred twenty-five mA.
• Compliant with California Title 24 and ASHRAE 90.1 standards.

Product Highlights

This product allows for efficient energy management and facilitates daylight harvesting.

Product Information

Standard Information

• Manufacturer: Leviton
• Part Number: OPP20-RD4

Technical Specifications

• Input Voltage: 120 to 277 VAC
• Output Voltage: 24 VDC
• Power Rating: 5.4 W
• Amperage Rating: 225 mA
• Relay Rating: 60 A
• Frequency: 50/60 HZ
• Dimensions: Width - 3.811 in, Depth - 1.432 in, Height - 2.4 in
• Material: Plastic
• Environmental Conditions: Non-Condensing (0% to 90% Humidity)
• Operating Temperature: 0 to 50 degrees Celsius
