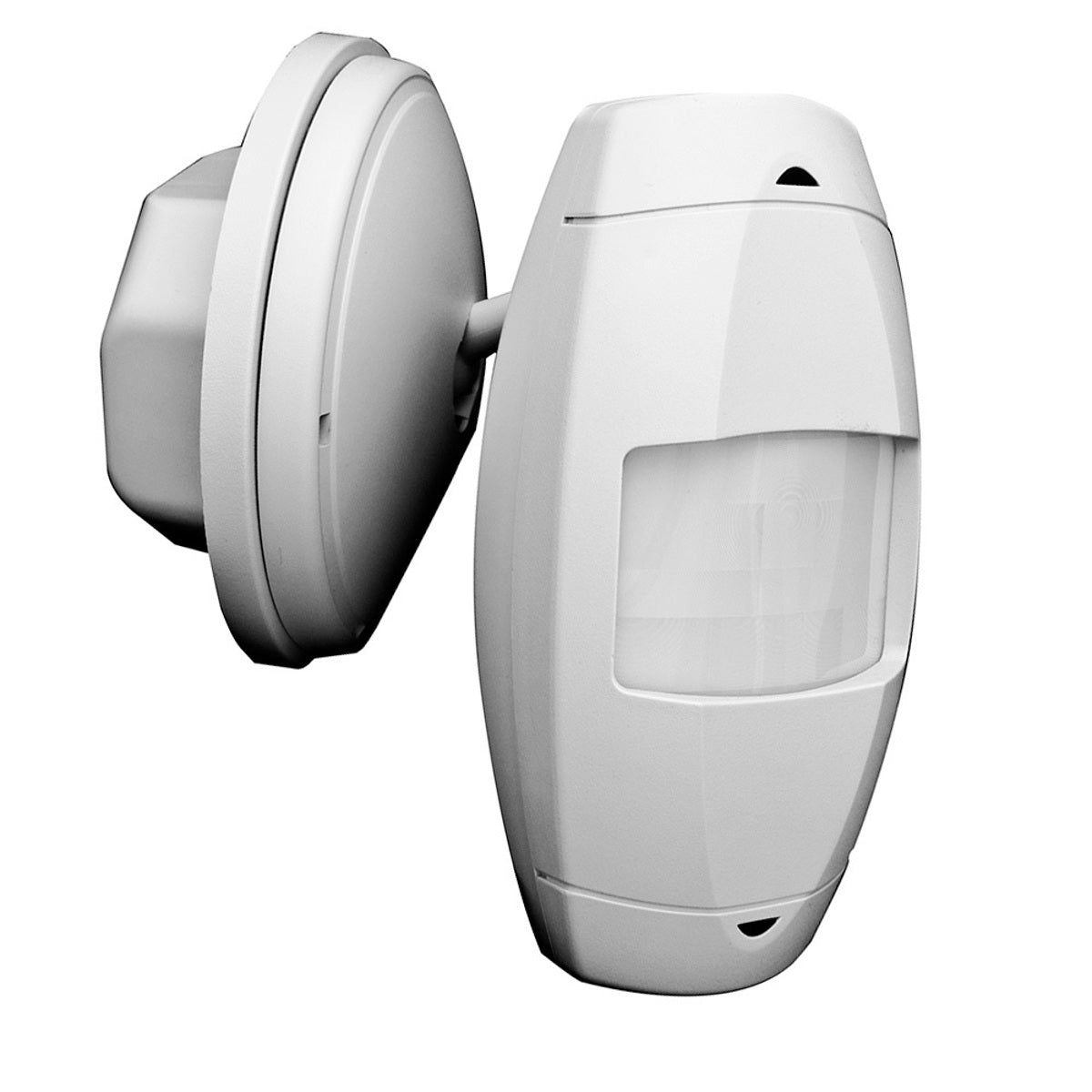

Leviton ODWHB-IDW Occupancy Sensor 24VDC 55 feetx7 feet@30 feet

Product Description

The LEVITON ODWHB-IDW is an occupancy sensor with PIR technology. This sensor turns lights on when movement is detected and off when the space is vacant. It mounts easily in an electrical box and provides leads for a simple line voltage connection. Suitable for commercial applications.

• Streamlined installation offers customers an immediate energy management solution
• Mounts easily in electrical box and provides leads for simple line voltage connection
• Zero crossing circuitry for enhanced reliability and long life operation

Product Highlights

The ODWHB-IDW occupancy sensor maximizes reliability and offers a low-cost energy management solution for commercial applications.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: ODWHB-IDW
• Country of Origin: China

Technical Specifications

• Catalog Number: ODWHB-IDW
• Manufacturer: LEVITON
• Brand: Leviton
• Country of Origin: China
• Made in USA: No
• Application: Commercial
• Frequency Response: 50/60 HZ
• Mounting: Wall
• Sensing Distance: 55 x 7 FT
• Standard: UL Listed;CUL Listed;NOM;CEC Title 24
• UPC: 078477540046
• GTIN: 00078477540046
• Item Type: Passive Infrared;High Bay Sensor
• Environmental Conditions: Storage Temperature (-10 DEG C to +85 DEG C);Relative Humidity (0 to 90 PCT)
• Temperature Rating: 0 to +40 DEG C
• Voltage Rating: 120 to 277 V
• Amperage Rating: 40 mA
• Coverage: 55 x 7 ft
• Lamp Type: Fluorescent/Incandescent
• Power Rating: 3/4 hp
• Response Frequency: 50/60 Hz
• Sensor Type: PIR
• Series: ODWHB
• Time Delay: 30 s to 30 min
• Type: Aisle High Bay Line Voltage
• Viewing Angle: 8 deg
• Mounting Type: Wall Mount
• Power Source: Corded Electric
• Maximum Range: 30 Feet, 50 Feet
• Battery Description: battery not included
• Neutral Wire Connection: Required
• Coverage (Sq.Ft.): 55FT x 7FT @ 30FT Height
• Product Line: ODWHB
• Technology: Passive Infrared
• Line Voltage: Yes
• Mount: Wall
• Field Angle: 08
• Title 24 Compliant: Yes
• Grade: Commercial
• Sensor Technology: Passive Infrared
