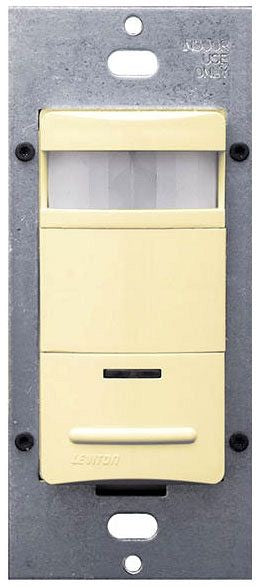

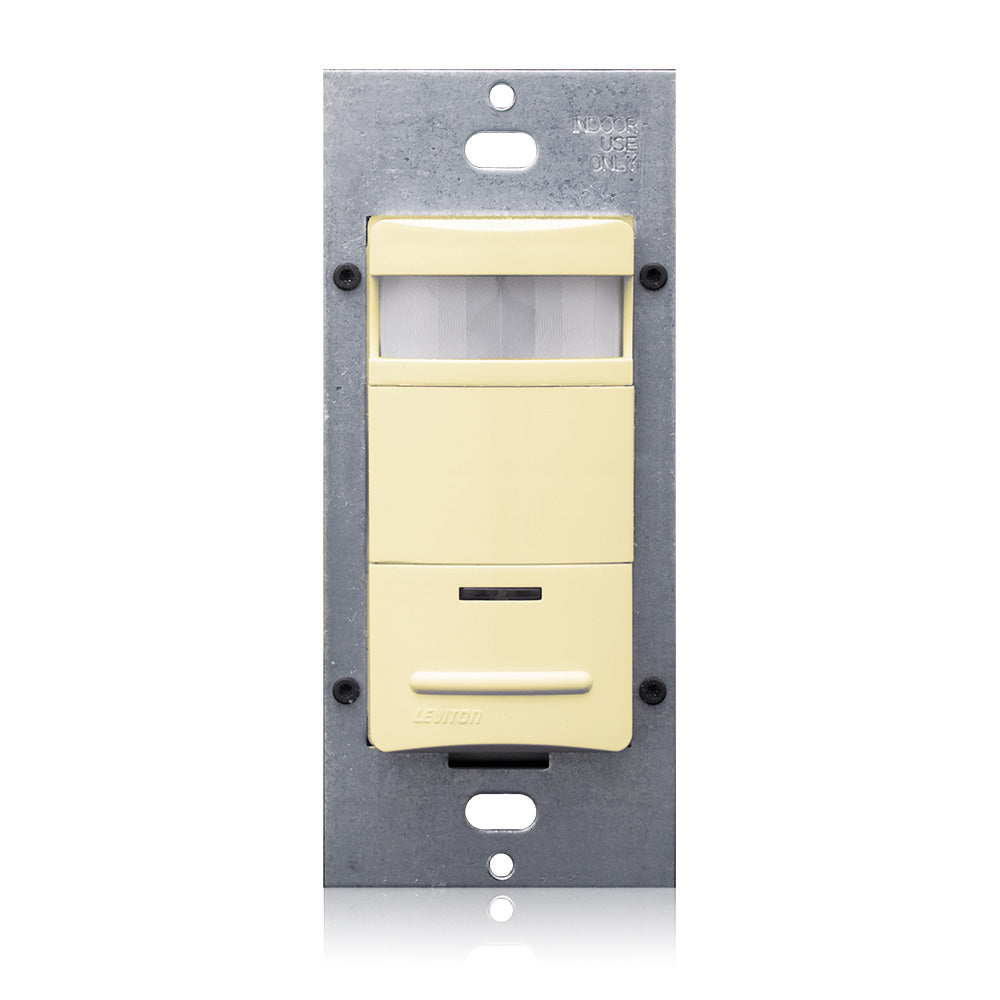

Leviton ODS10-IDI Decora Occupancy Sensor 120/230/277 VAC 2100 sq-ft Coverage

Product Description

The Leviton ODS10-IDI Wall Mount Occupancy Sensor operates at 120/230/277 VAC and utilizes passive infrared technology. This sensor is designed to detect occupancy across an area with a coverage of up to 2100 square feet. The advanced segmented Fresnel lens ensures optimal sensitivity and is suitable for small offices, conference rooms, and classrooms. It can effectively replace traditional wall switches, providing both convenience and energy savings.

• Easy installation in standard wall boxes
• Adjustable delay settings from thirty seconds to thirty minutes
• Red LED indicator confirms sensor activation

Product Highlights

This occupancy sensor is ideal for reducing energy consumption by ensuring that lights are only on when spaces are occupied. It has a 180-degree viewing angle and automatically toggles lights on and off based on room occupancy.

Product Information

Standard Information

• Brand: Leviton
• Manufacturer Part No: ODS10-IDI

Technical Specifications

• Voltage Rating: 120/230/277 VAC
• Coverage Area: 2100 sq-ft
• Power Consumption: 100/250 mW
• Dimensions: 1.75 inches W x 1.85 inches D x 46 inches H
• Temperature Rating: 0 to 50 deg C
• Sensor Type: Passive Infrared (PIR)
• Control Output: Manual On/Automatic Off
