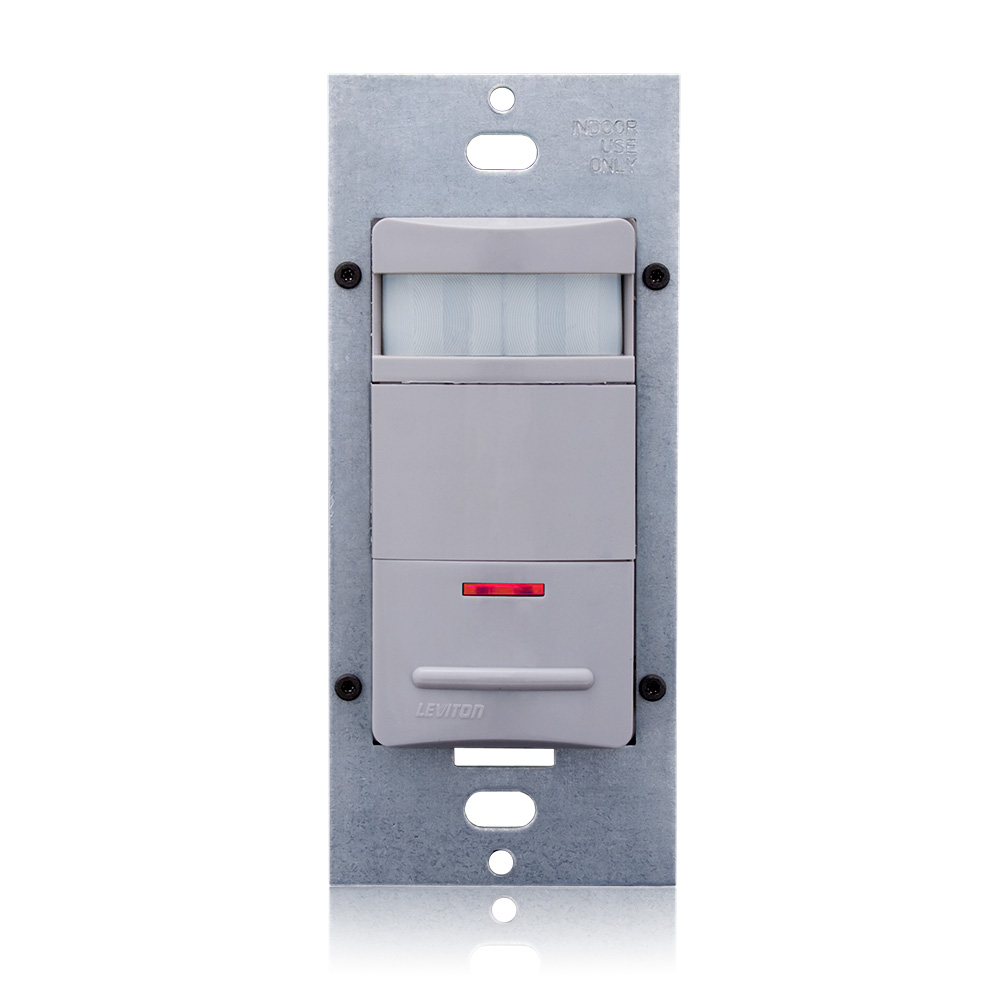

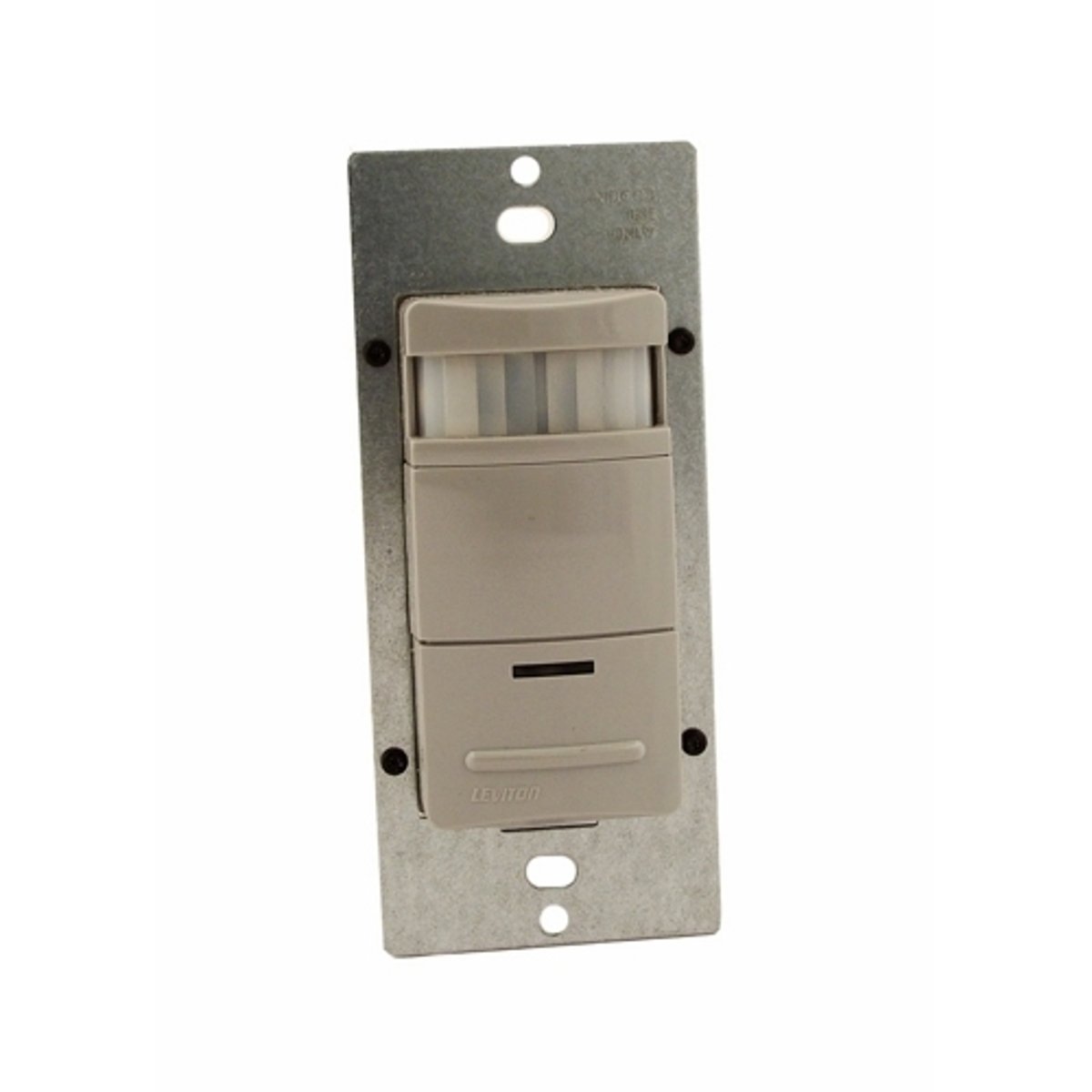

Leviton ODS10-IDG Decora Occupancy Sensor 180 Degree 2100 sq-ft Coverage

Product Description

The Leviton ODS10-IDG is a wall-mounted occupancy sensor that offers a passive infrared detection system. It operates on voltages between 120 to 277 VAC. This sensor can cover an area up to 2100 square feet, which makes it suitable for various commercial applications such as small offices, classrooms, and conference rooms.

• Passive Infrared technology for reliable motion detection
• Supports Manual On/Automatic Off function for energy efficiency
• Adjustable time delay settings from thirty seconds to thirty minutes

Product Highlights

The ODS10-IDG provides an efficient solution for lighting control by using advanced infrared detection technology. This occupancy sensor is designed to be installed in a standard wall box and can replace a single-pole wall switch.

Product Information

Standard Information

• Catalog Number: ODS10-IDG
• Manufacturer: Leviton

Technical Specifications

• Voltage Rating: 120/230/277 VAC
• Power Rating: 100/250 mW
• Sensor Type: Passive Infrared
• Coverage Area: 2100 sq-ft
• Response Frequency: 50/60 Hz
• Control Output: Manual On/Automatic Off
• Viewing Angle: 180 degrees
• Temperature Rating: 0 to 50 degrees C
• Mounting Type: Wall
• Time Delay: 30 sec to 30 min
• Standards/Approvals: CSA Certified, UL Listed, CEC Compliant
