Product Description

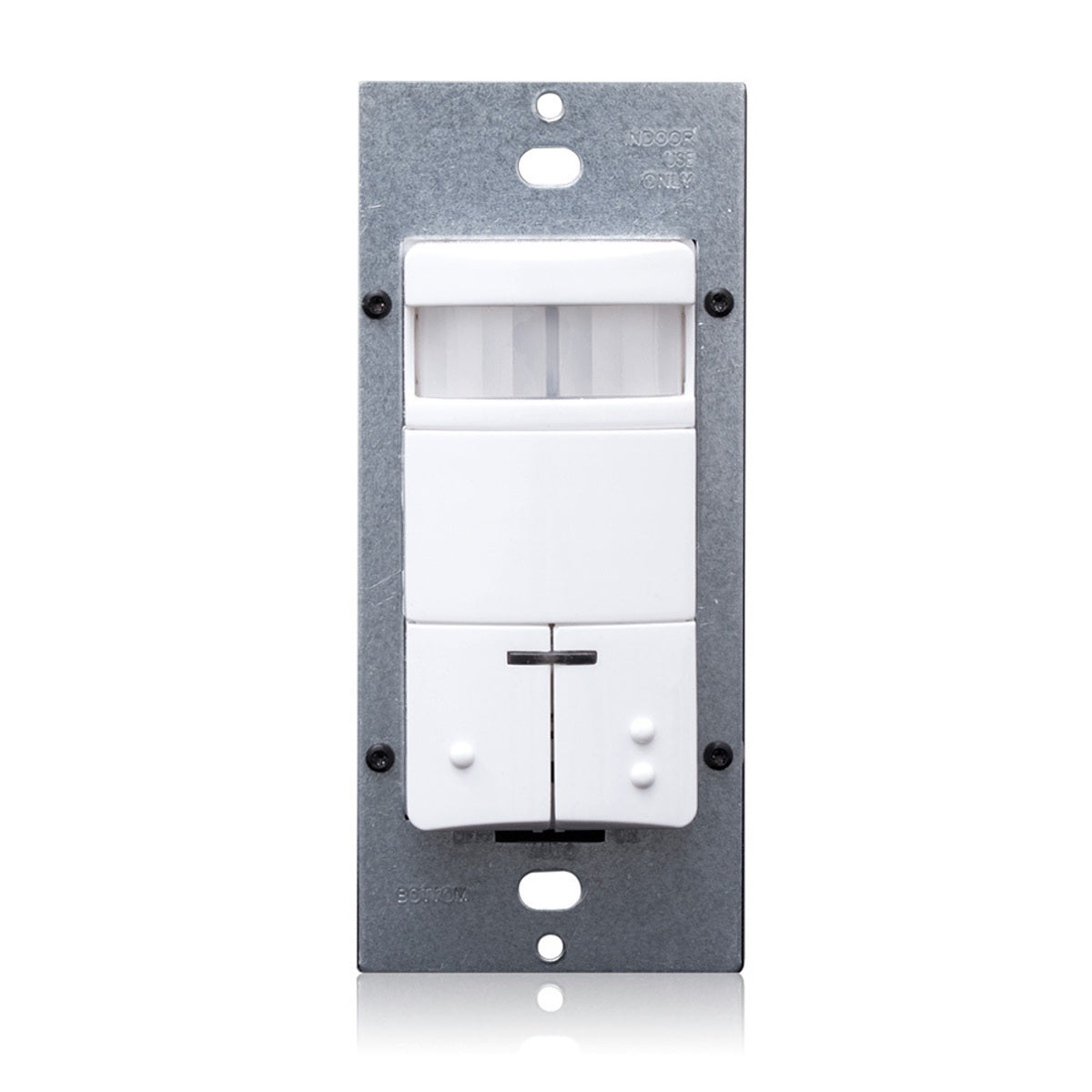

The Leviton ODS0D-IDW is a dual-relay passive infrared wall switch occupancy sensor designed for commercial use. This device operates on voltages of either 120, 230, or 277 VAC and provides a coverage area of up to 2100 square feet with a 180-degree viewing angle.
- Automatic switching for two banks of lighting.

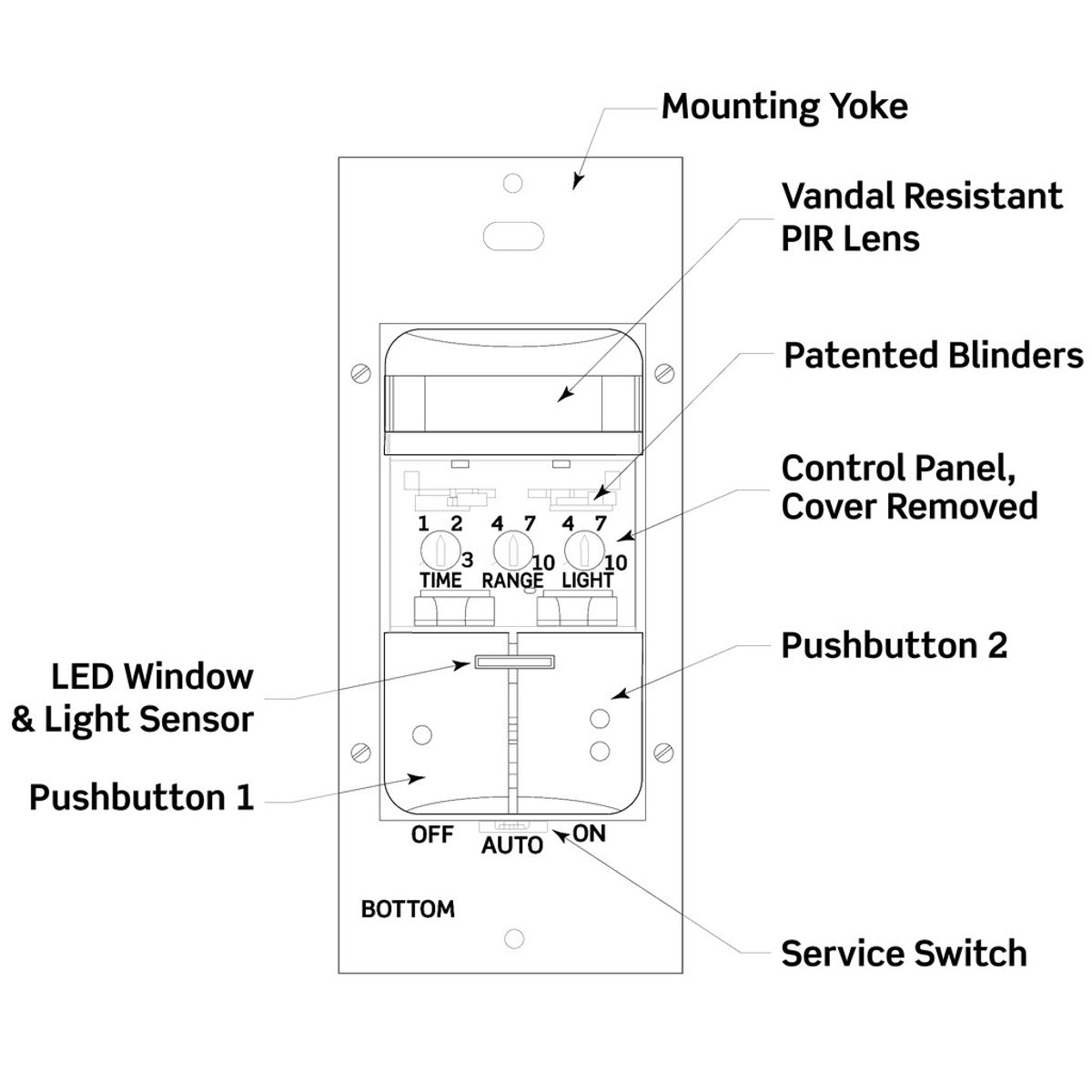

- Manual ON/OFF control through dual pushbuttons.
- Temperature rating from 0 to 50 degrees Celsius.
Product Highlights
This occupancy sensor is suitable for a variety of applications, including classrooms, conference rooms, and offices. The unit provides significant energy savings by automatically controlling lights based on occupancy.
Product Information
Standard Information
-
Manufacturer: Leviton
-
Catalog Number: ODS0D-IDW
Technical Specifications
-

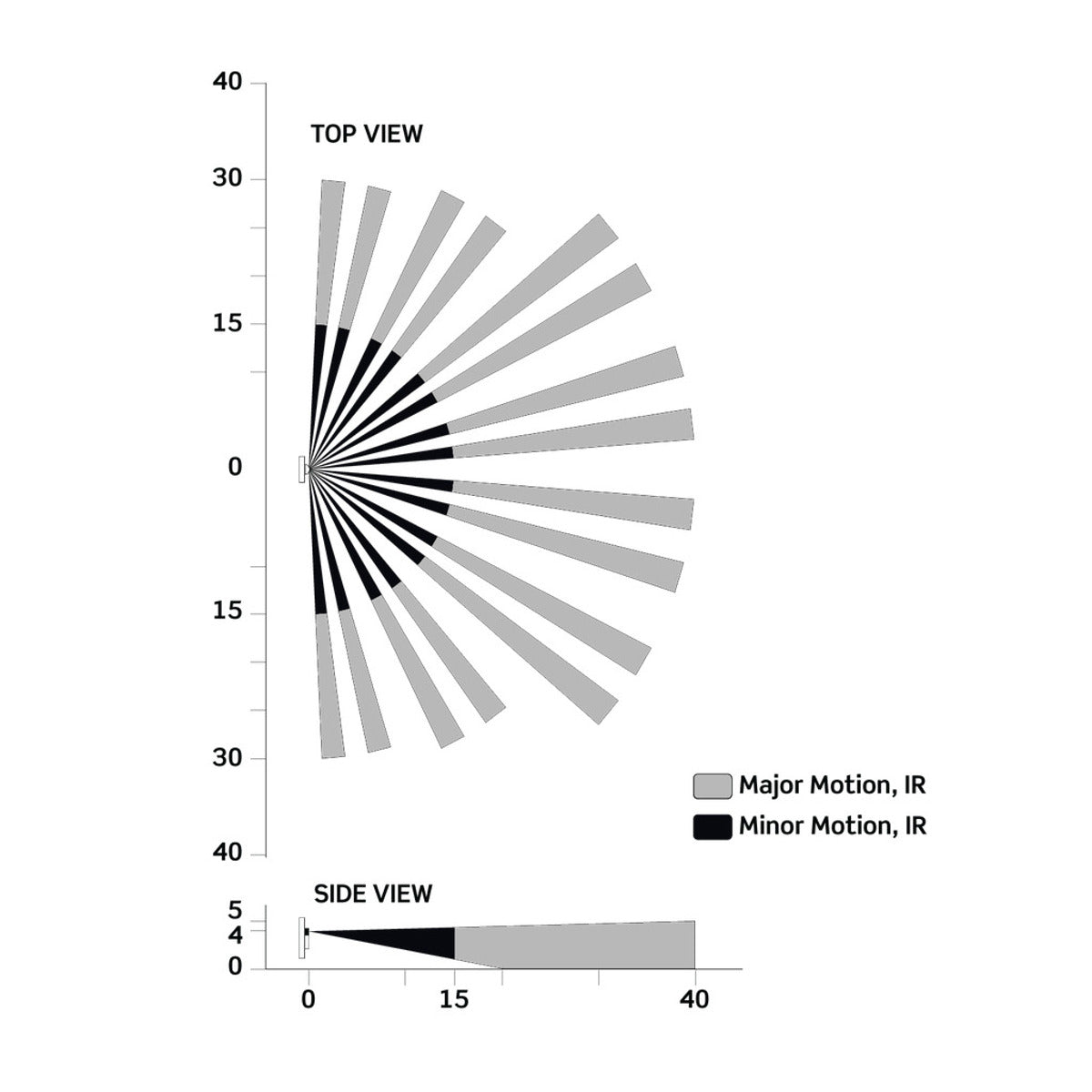

Coverage: 2100 sq. ft.
-
Power Rating: 110 to 270 mW
-
Control Output: Manual ON/Automatic OFF
-
Sensor Type: Passive Infrared (PIR)
-

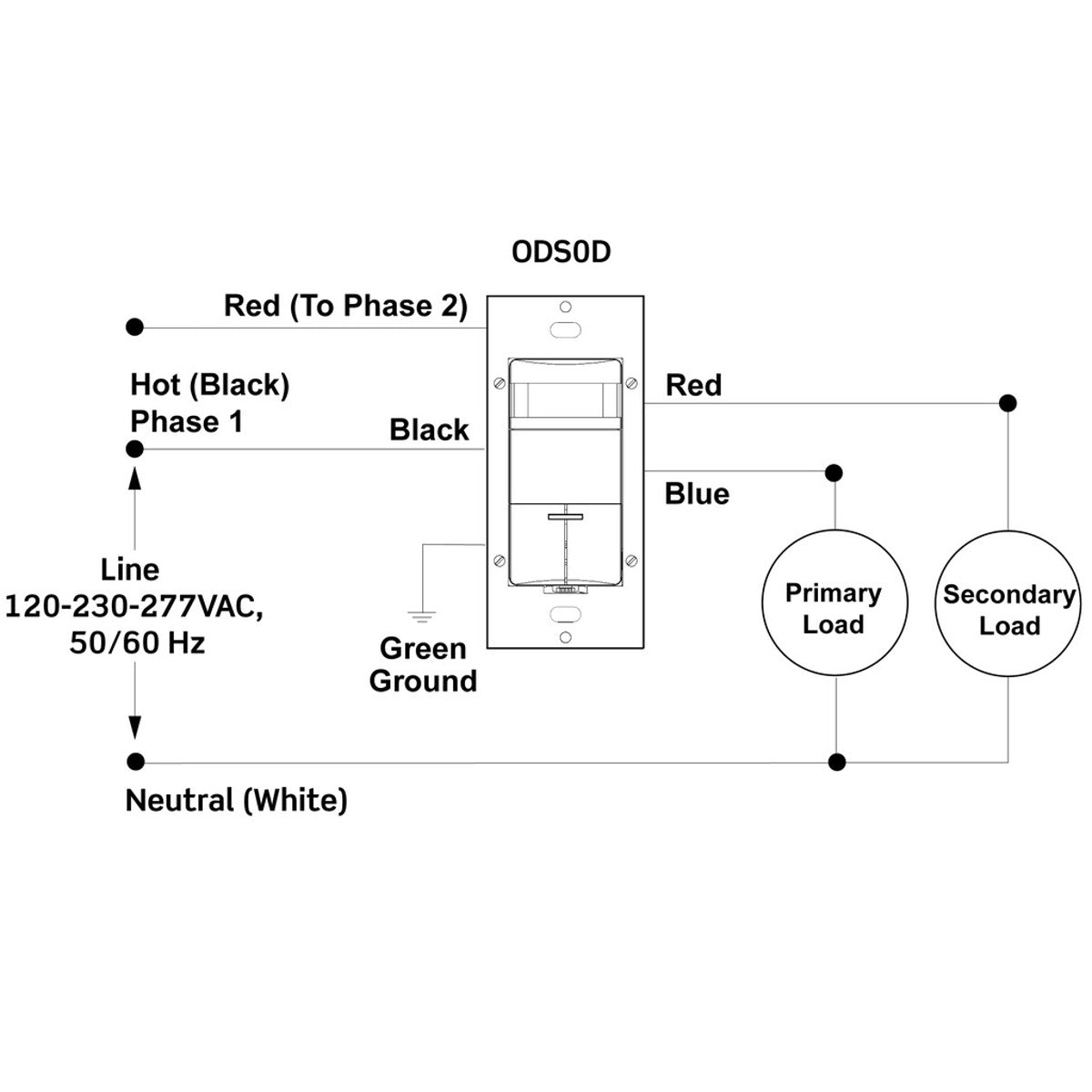

Voltage Rating: 120/230/277 VAC
-
Frequency Rating: 50/60 Hz
-
Time Delay: 30 seconds to 30 minutes
-

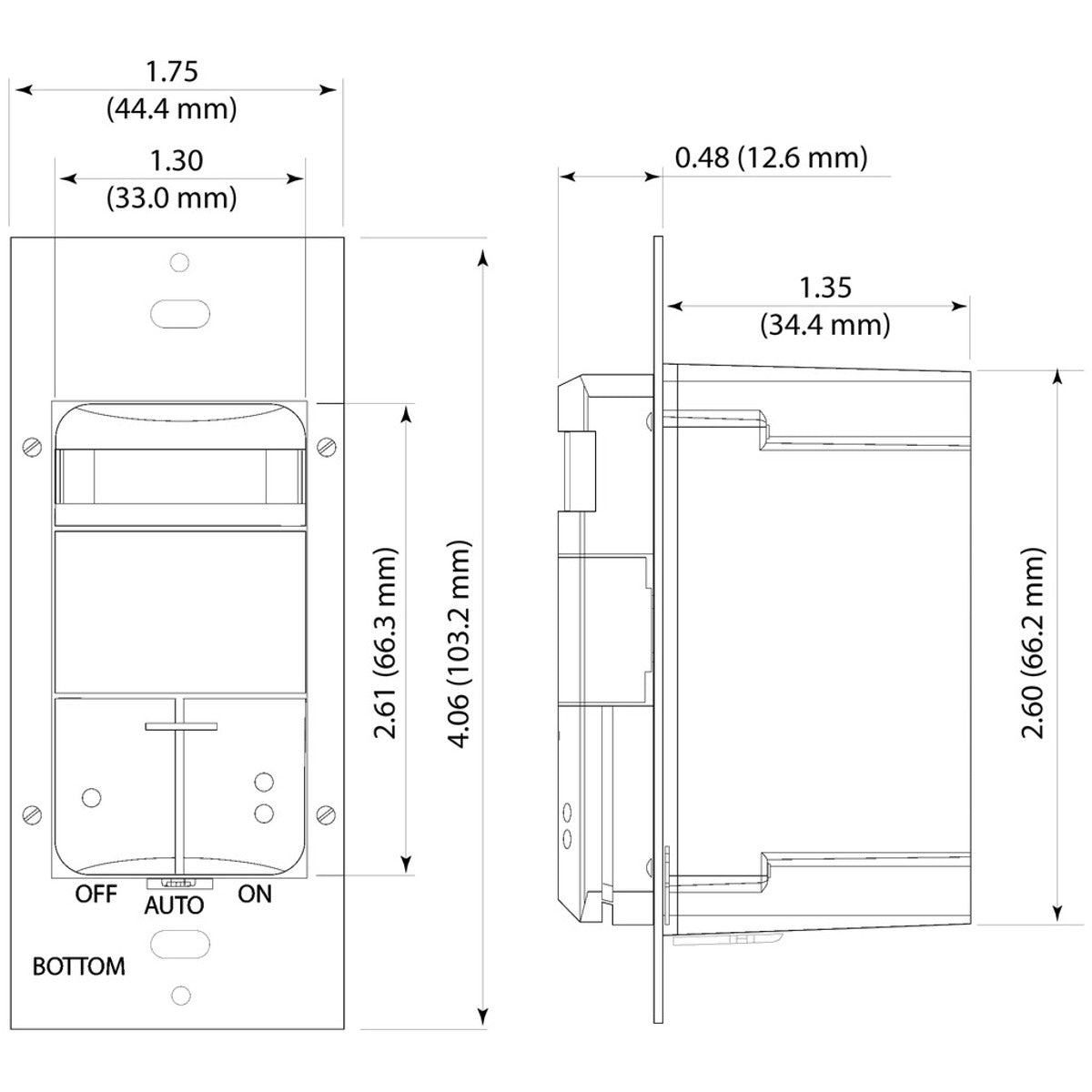

Mounting Type: Wall
-
Environmental Conditions: Operating Temperature (0 to +50 degrees Celsius); Storage Temperature (-10 to +85 degrees Celsius); Humidity (20% to 90% Non-Condensing)
