Leviton ODC20-MDW WH MLTECH CEILSENS 2000 SF 120V TERM SCR

Product Description

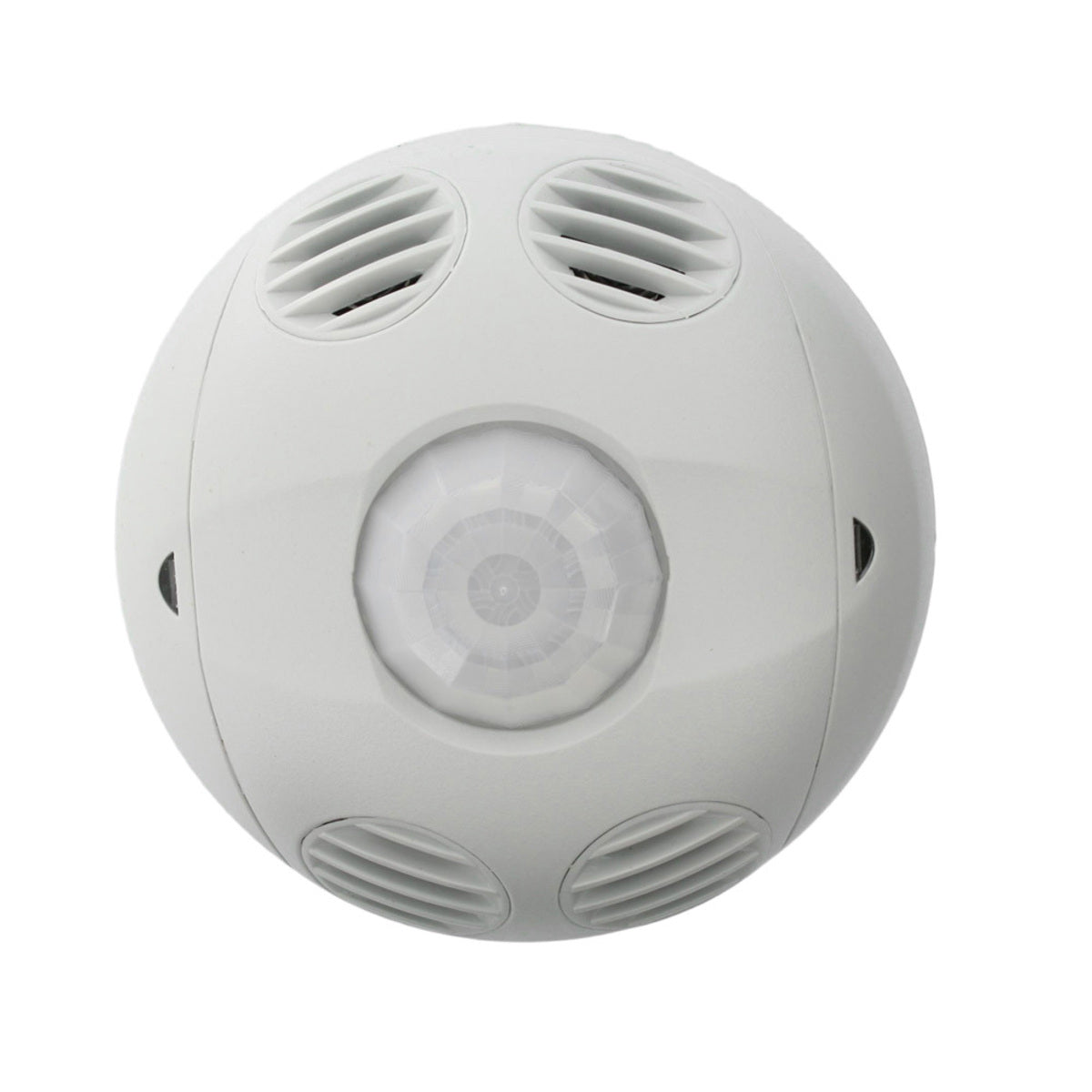

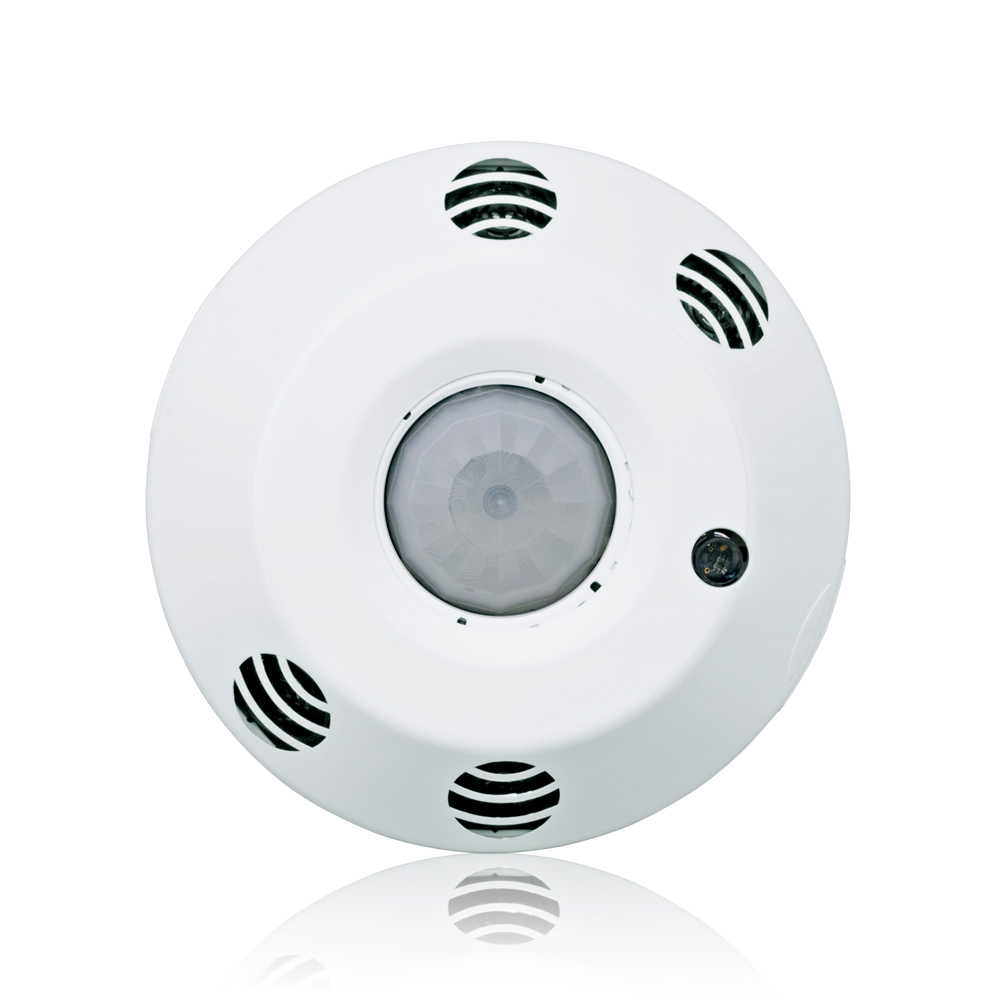

The Leviton ODC20-MDW is a line voltage occupancy sensor designed for ceiling mount applications. It operates on 120 to 277 volts AC and covers an area of up to two thousand square feet. This multi-technology sensor utilizes both passive infrared (PIR) and ultrasonic technology for precise motion detection, ensuring reliable control of lighting systems.

• Covers areas up to 2000 square feet
• Automatic On/Off functionality with manual override
• Configurable time delay settings from thirty seconds to thirty minutes

Product Highlights

This occupancy sensor includes features for energy efficiency, safety, and convenience in commercial applications.

Product Information

Standard Information

• Catalog Number: ODC20-MDW
• Manufacturer: Leviton

Technical Specifications

• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 60 to 30 mA
• Coverage Area: 2000 square feet
• Mounting Type: Ceiling
• Response Frequency: 50 Hz
• Environmental Conditions: -26 degrees C to +71 degrees C
• Temperature Rating: 0 to +40 degrees C
• Dimensions: 4.8 inches diameter x 2.39 inches height
• Standards Compliance: RoHS, CA Title 20 compliant, UL 924, NEMA 410
