Leviton ODC10-MDW WH MLTTECH CEIL SENS 120 to 277 VAC (24 VDC) Replacement MPN

Product Description

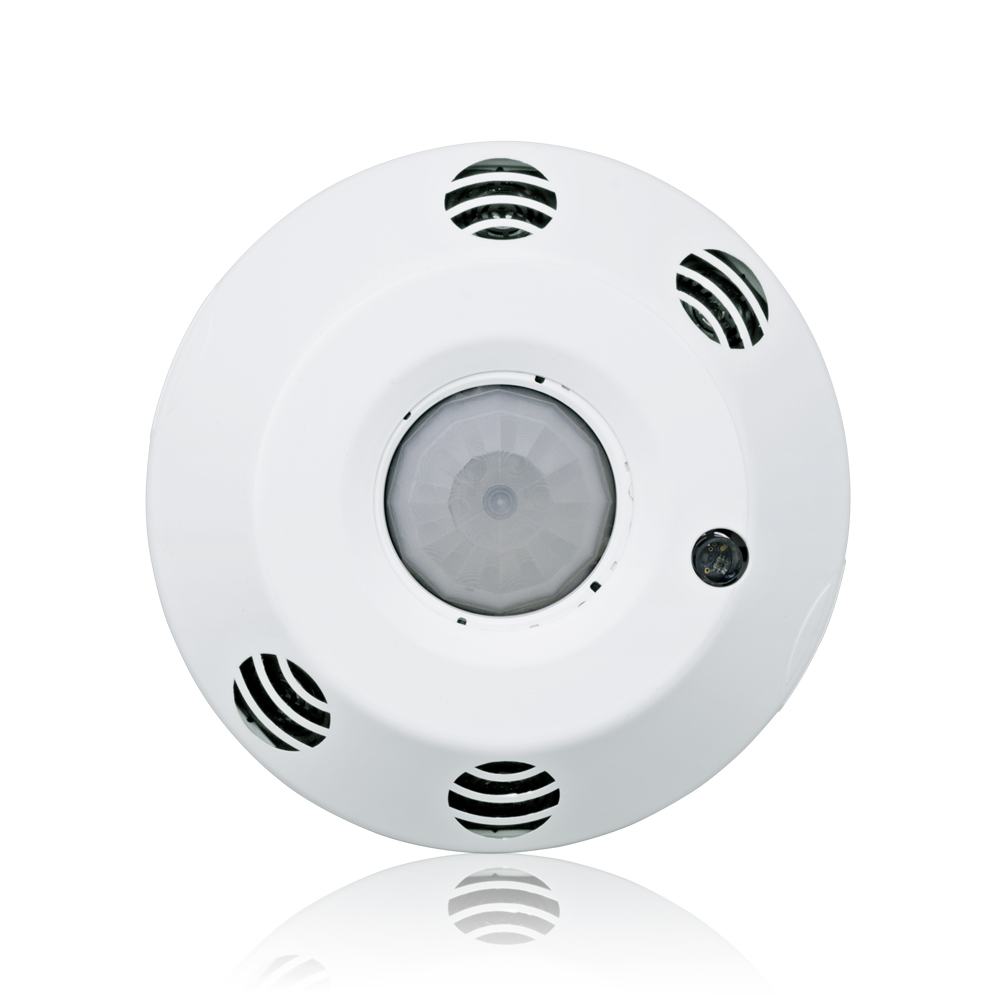

The Leviton ODC10-MDW is an occupancy sensor designed for ceiling mounting. This product operates at line voltage from one hundred twenty to two hundred seventy-seven volts and features multi-technology sensing using both passive infrared and ultrasonic methods. It offers coverage for areas up to one thousand square feet and includes daylighting features for energy efficiency.

• Easy installation with ceiling mounting capability
• Automatic on/off functionality for energy savings
• Suitable for commercial applications with compliance to various standards

Product Highlights

The ODC10-MDW provides reliable performance with automatic calibration, making it an ideal choice for various lighting control needs in commercial settings.

Product Information

Standard Information

• Brand: Leviton
• Manufacturer: Leviton Mfg Co

Technical Specifications

• MPN: ODC10-MDW
• Power Supply: 120 to 277 VAC
• Voltage Type: Line Voltage Self Contained
• Coverage Area: 1000 sq-ft
• Sensor Type: Passive Infrared; Ultrasonic
• Temperature Rating: 0 to 40 degrees C
• Dimensions: 4.8 inches Diameter x 2.39 inches Height
• Time Delay: Configurable from 30 seconds to 30 minutes
