Product Description

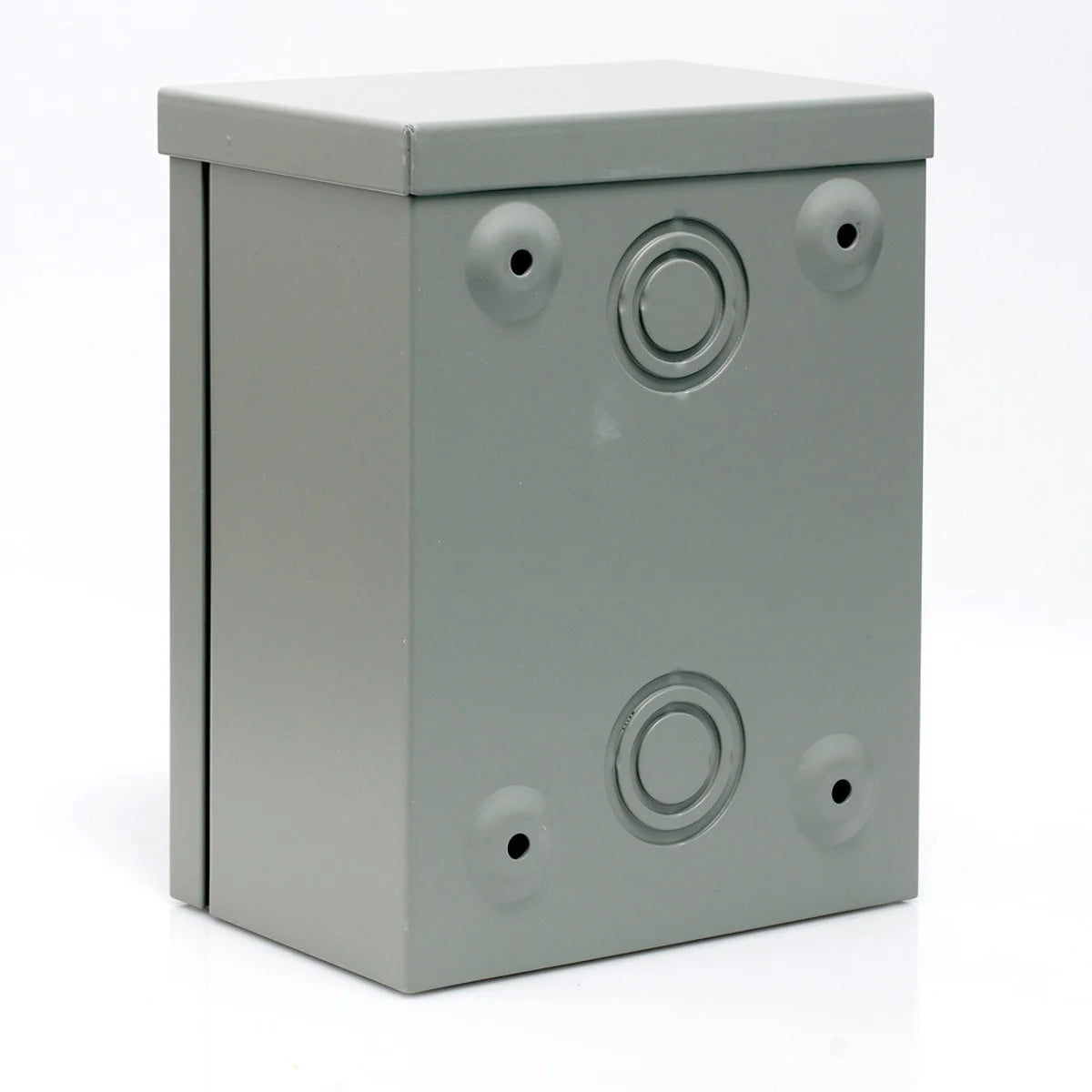

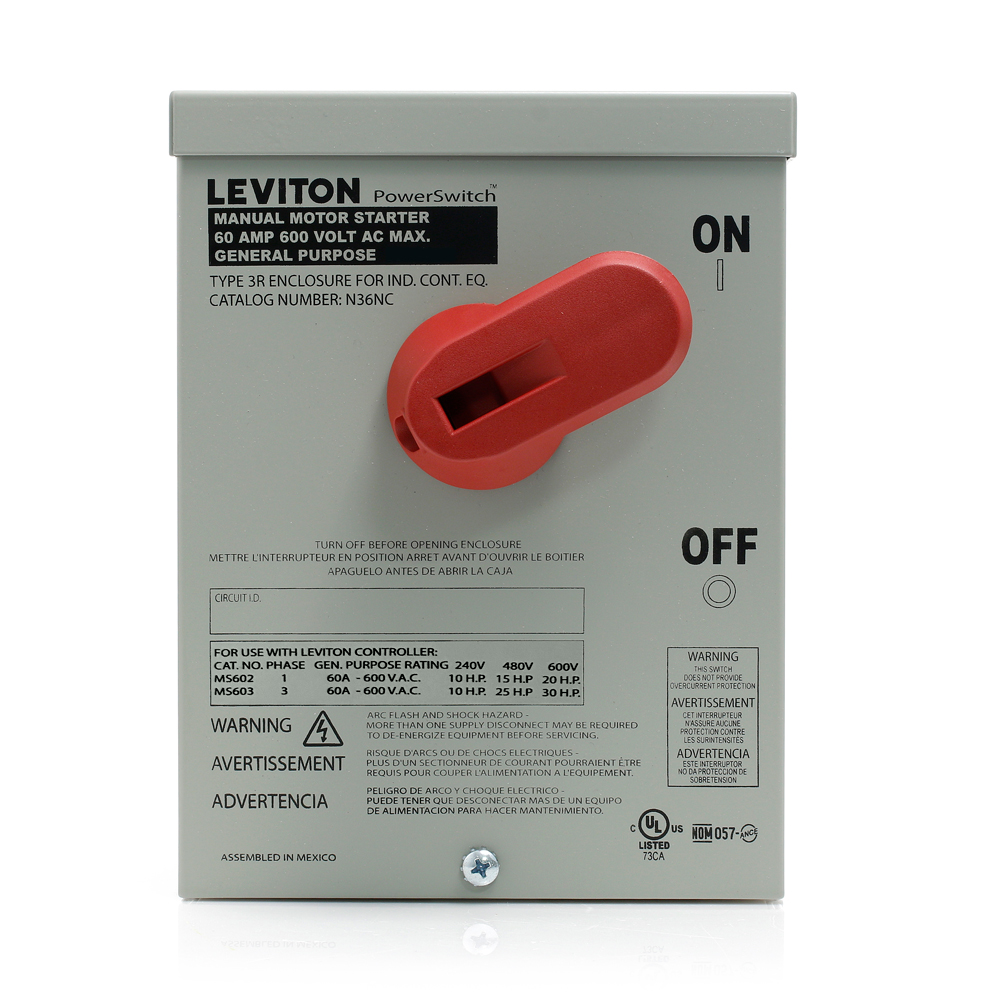

The Leviton N36NC is an enclosure designed for use with 60 Amp motor starter switches. This unit ensures safe and effective operation within industrial environments. It can handle 600 VAC input and is suitable for applications such as HVAC systems, conveyor belts, and air compressors.
- Enclosure material is powder-coated steel for durability.
- NEMA 3R rated for outdoor use.
- Temperature range from -40 to +65 degrees Celsius.
Product Highlights
This enclosure provides a reliable solution for controlling motor starter switches in various commercial applications. It features a toggle actuator for manual operation and accommodates back and side wired connections.
Product Information
Standard Information
-
Catalog Number: N36NC
-
Brand: Leviton
Technical Specifications
-
Material: Steel
-
Dimensions: 8.1 inches H x 6.3 inches W x 4.3 inches D
-
Weight: 10 lbs
-
Amperage: 60 Amp
-
NEMA Size: 3R
-
Certifications: UL508, cULus
-
Connection Type: Back Wired, Side Wired
-
Warranty: 10 years
