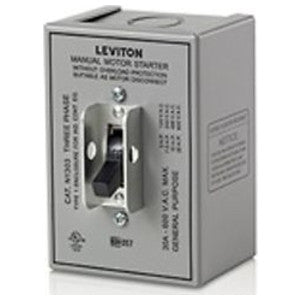

Leviton N1303-DS 30A 600V Toggle 3-P AC Motor Starting Switch Type 1 Metal Enclosure

Product Description

The Leviton N1303-DS is a three-pole AC motor starting switch designed for industrial applications. It operates at a maximum of 30 amps and 600 volts, making it suitable for controlling larger motors. The switch has a Type 1 metal enclosure that provides protection in various environments.

• Operating configuration is toggle switch with three poles.
• Back and side wired for flexible installation options.
• Grounded to the enclosure for safety.

Product Highlights

This motor starter offers manual control for a variety of motor loads, ensuring safe operation. Ideal for use with HVAC systems, pumps, and industrial manufacturing equipment.

Product Information

Standard Information

• Brand: Leviton
• Manufacturer Part Number: N1303-DS

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600 VAC
• Power Rating: 20 hp
• Number of Poles: 3
• Actuator Type: Toggle
• Enclosure Type: NEMA WD-1/WD-6
• Dimensions: 4.75 H x 3.25 W x 3.16 D inches
• Environmental Conditions: -40 to 60 degrees C Operating Temperature
• Operating Cycles: 6000 Cycles
