Product Description

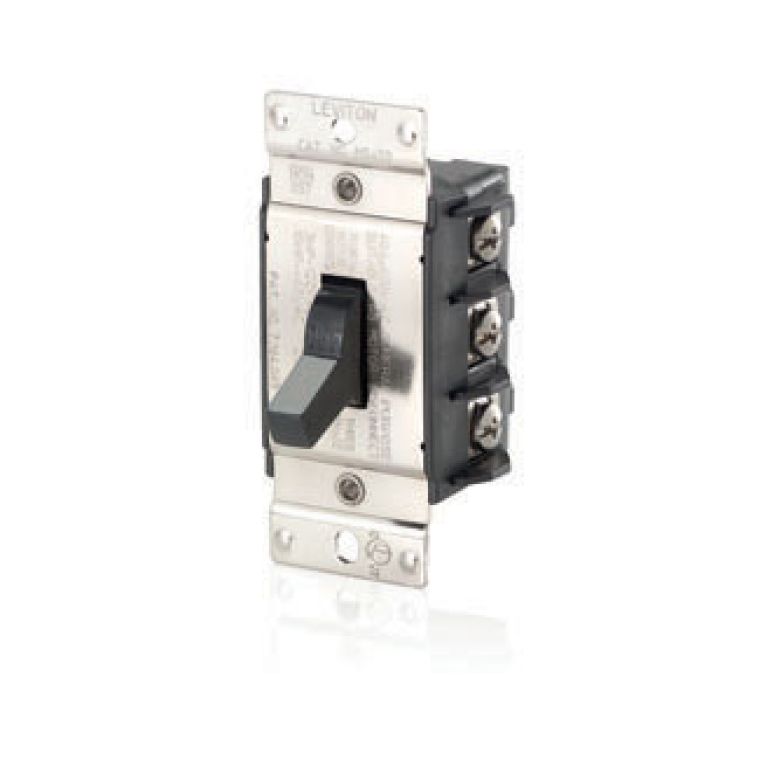

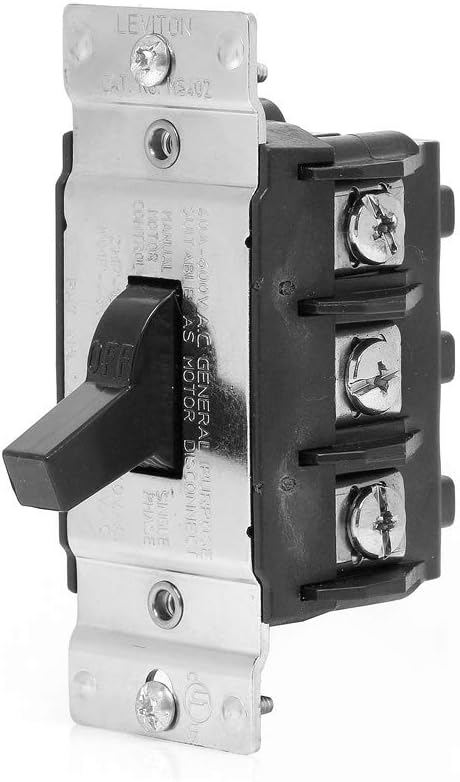

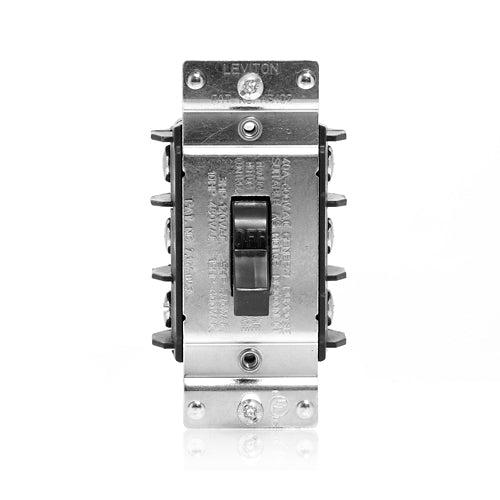

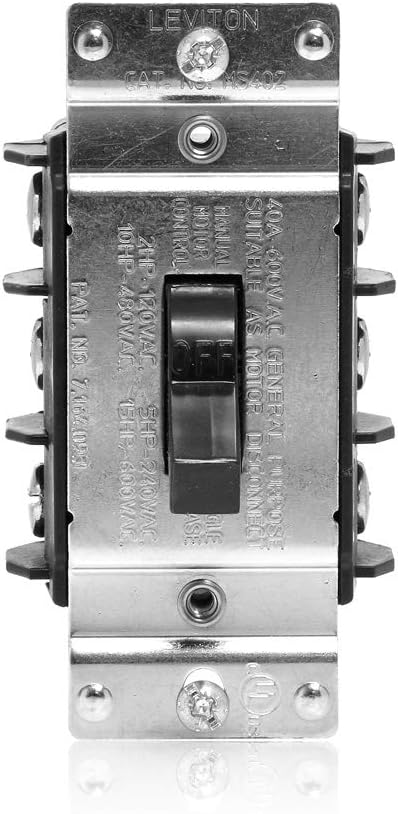

The LEVITON MS403-DS is an AC manual motor starter switch designed for safe and reliable control of motor loads. It is suitable for ON/OFF switching control of conveyor systems, pumping machines, HVAC systems, and air compressors. This 3-pole, three-phase switch has a voltage rating of 600V and a current rating of 40A.
- Thermoplastic molded parts resist impact, chemicals, temperature, tracking, and arcing.
- Cam driven mechanism enhances fast make/slow break.
- Silver alloy contacts maximize conductivity and service life.
Product Highlights
Provides reliable control for heavy equipment with a non-grounding design and back and side wiring options. Ideal for industrial and commercial applications.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: MS403-DS
-
Country of Origin: Mexico
Technical Specifications
-
Voltage: 600 VAC
-
Material: Polyester
-
Horsepower: 7.5 hp
-
Amperage Rating: 40 A
-
Contact Configuration: TPST
-
Enclosure: NEMA WD-1/WD-6
-
Environmental Conditions: -40 to 60 deg C Operating Temperature
-
Number of Poles: 3
-
Operating Cycles: 6000 Cycles
-
Power Rating: 20 hp
-
Type: Manual Non-Grounding
-
Actuator: Standard Toggle
-
Connection: Back/Side Wired/Screw
-
AC Horsepower Ratings: 3HP-120V, 7.5HP-240V, 15HP-480V, 20HP-600V
-
Dielectric Voltage: Withstands 2200 VAC for 1 min.
-
Endurance: 6,000 cycles inductive motor type load
-
Grounding: Non-Grounding
-
Overload UL20 Test: 50 cycles at 6 times full rated current
-
Short Circuit Current Rating: 10,000 RMS symmetrical amps at 600V AC max. when protected by a 30A time delay fuse
-
Temperature Rise: 50 00baC Max at full rated current
-
Flammability: Rated V-0 per UL 94
-
Operating Temperature: -40 00baC to 60 00baC
-
Base Material: Thermoplastic Polyester
-
Contacts: Silver-Alloy
-
Cover Material: Thermoplastic Polyester
-
Strap Material: Nickel-Plated Brass
-
Terminal Screws: Nickel-Plated Brass 10-32, Triple Combination
-
Toggle: Thermoplastic Polyester
-
Product ID: Ratings are permanently marked on device
-
Terminal Accom.: #10 - #8 AWG
-

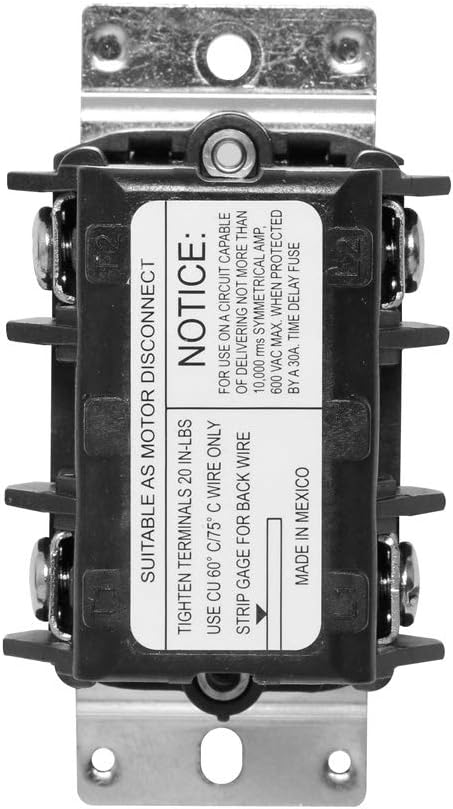

Terminal ID: T1, T2, T3, L1, L2, & L3 marked on back of device
-
Termination: Back & Side
-
Torque Range: 20 inch pounds maximum
-
Device Type: Toggle Switch
-
ANSI: C-73
-
NEMA: WD-1 & WD-6
-
NOM: NOM-ANCE
-
UL 60947-4-1: supersedes UL 508
-
cUL per CSA C22.2 No. 111: File #E63969
-
Input Voltage: 600V AC
-
Current Rating: 40A
-
Certifications & Standards: cUL per CSA C22.2 No. 111
-
Pole: 3
