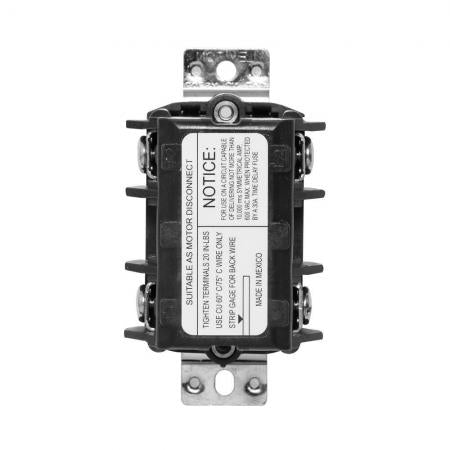

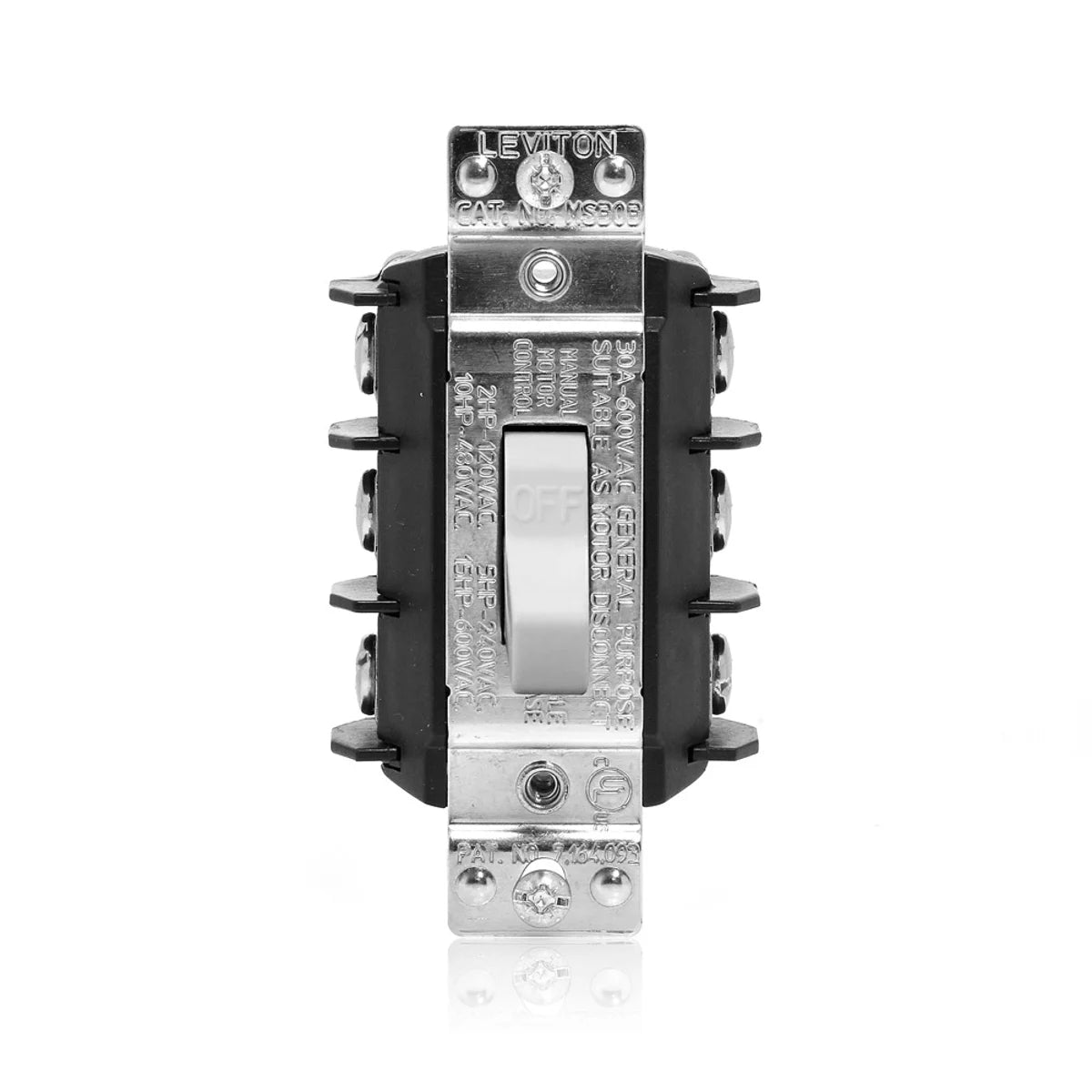

Product Description
The Leviton MS303-DSW is a three-phase manual motor controller designed for operation in industrial applications. This controller supports voltages up to six hundred volts and current ratings of thirty amps. It is suitable for various motor disconnect applications.
- Three-pole design for comprehensive control
- Rated for industrial environments with a power rating of twenty horsepower
- Versatile mounting options including yoke mounting and various wiring terminals
Product Highlights
This manual motor controller provides safe and reliable control of motor loads, making it ideal for applications like conveyor systems, air compressors, and HVAC systems.
Product Information
Standard Information
-
Manufacturer: Leviton
-
Catalog Number: MS303-DSW
Technical Specifications
-
Voltage Rating: 600 VAC
-
Amperage Rating: 30 A
-
Power Rating: 20 hp
-
Dimensions: 3.8 in H x 2 in W x 2.5 in D
-
Operating Cycles: 6000 Cycles
-
Environmental Conditions: -40 to 60 degrees C
-
Material: Thermoplastic Polyester
-
Mounting Type: Yoke
-
Number of Poles: 3
-
Terminal Type: Screw/Back/Side Wiring
-
Standards/Approvals: ANSI C-73, NEMA WD-1/WD-6, UL 60947-4-1, CSA C22.2 No. 111: E63969, UL94 V-2 Flammability Rated, NOM 057
