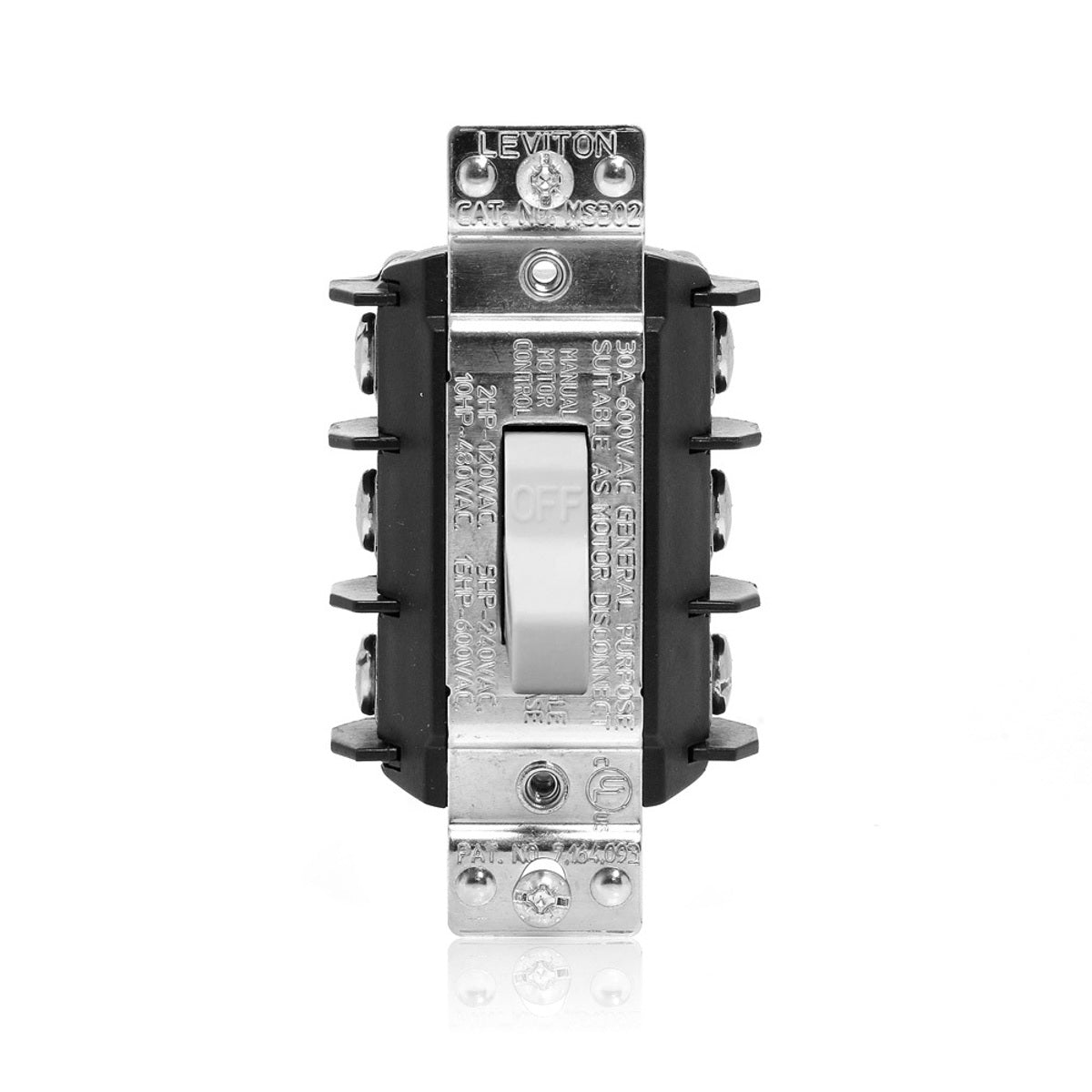

Leviton MS302-DSW 30 Amp 600 Volt Double-Pole Single Phase AC Manual Motor Controller

Product Description

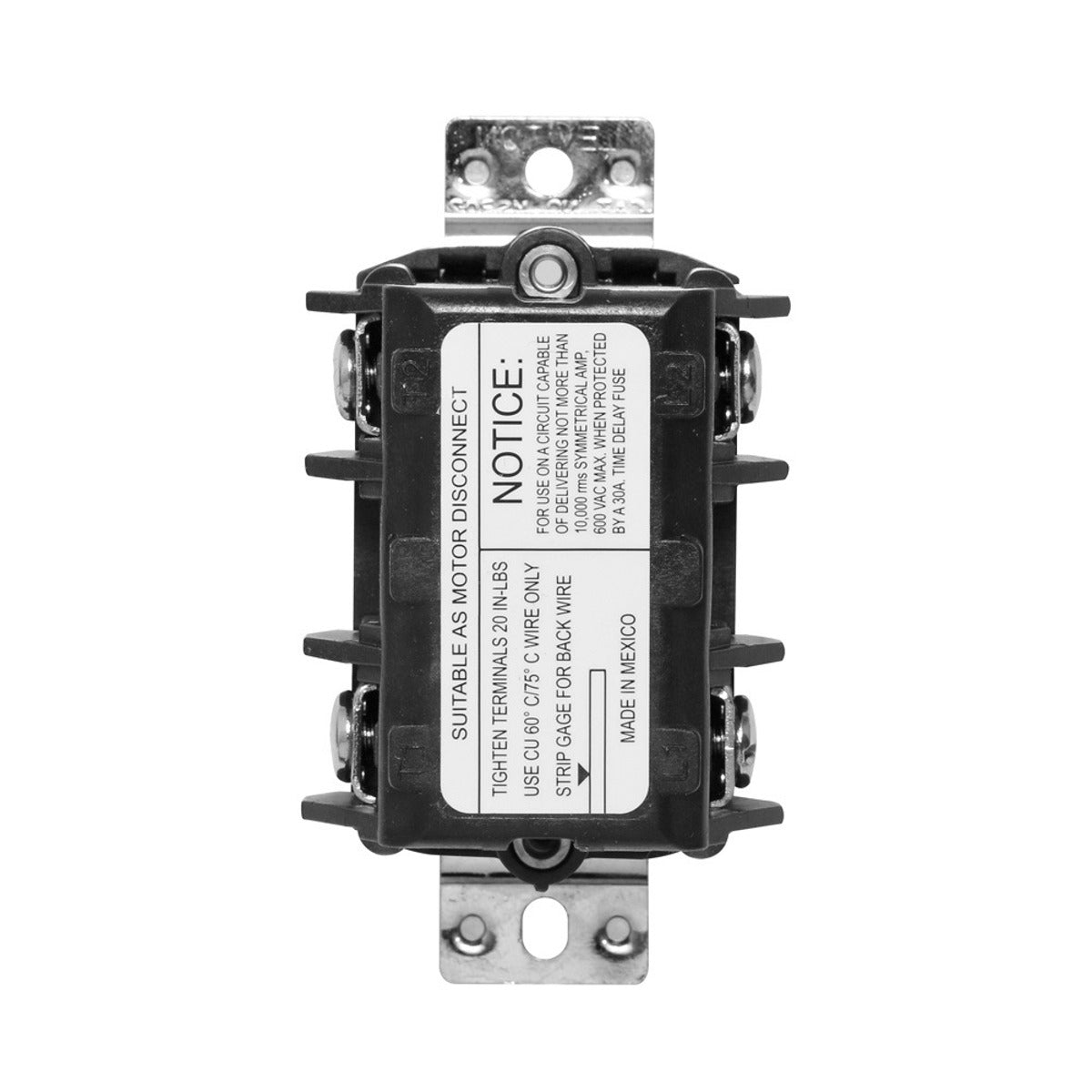

The Leviton MS302-DSW is a 30 amp, 600 volt double-pole manual motor controller designed for industrial applications. This device is suitable for motor disconnect and allows for toggle action control. The non-grounding design and back-side wiring make it effective for various installations.

• Operates at 600 volts with a current rating of 30 amps.
• Includes features such as ring terminal connection and yoke mounting.
• Thermoplastic polyester material ensures durability in demanding environments.

Product Highlights

Ideal for controlling conveyor systems, pumping machines, HVAC systems, and air compressors.

Product Information

Standard Information

• Catalog Number: MS302-DSW
• Manufacturer: Leviton
• UPC: 078477983713

Technical Specifications

• Power Rating: 15 hp
• Voltage Rating: 600 VAC
• Amperage Rating: 30 A
• Operating Cycles: 6000 Cycles
• Number of Poles: 2
• Dimensions: 2.03 inches W x 2.46 inches D x 3.75 inches H
• Environmental Conditions: -40 to 60 degrees C Operating
• Material: Thermoplastic Polyester
• Mounting: Yoke
• Connection: Ring Terminal
