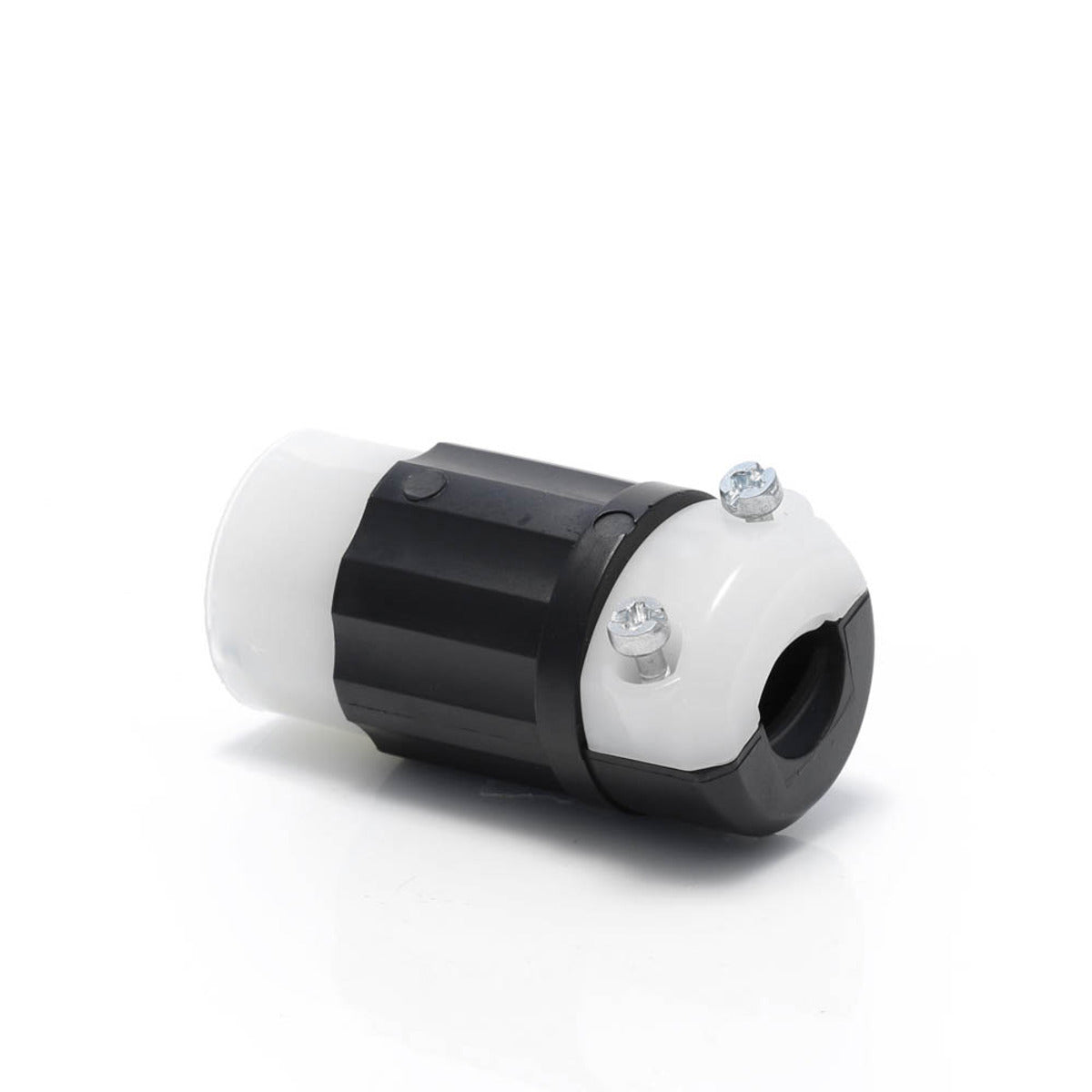

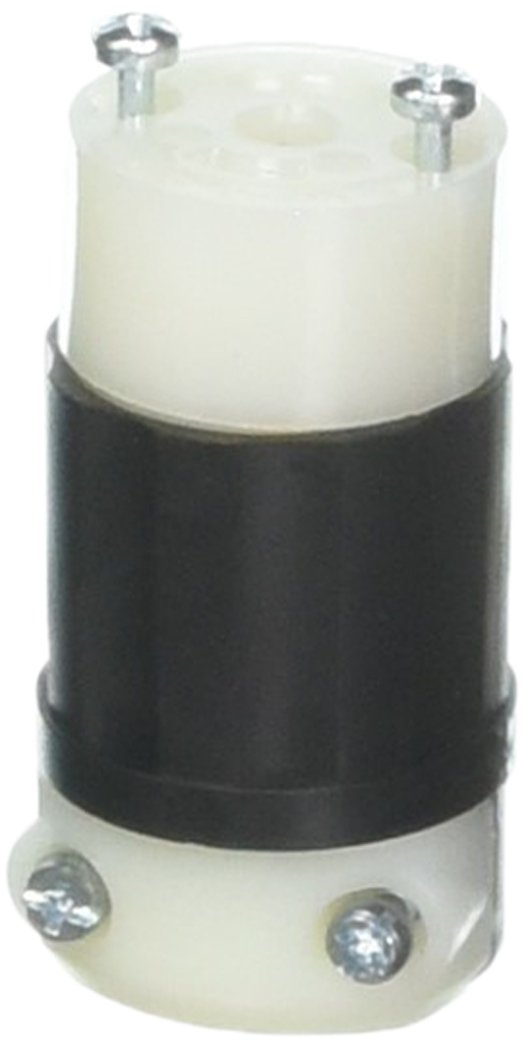

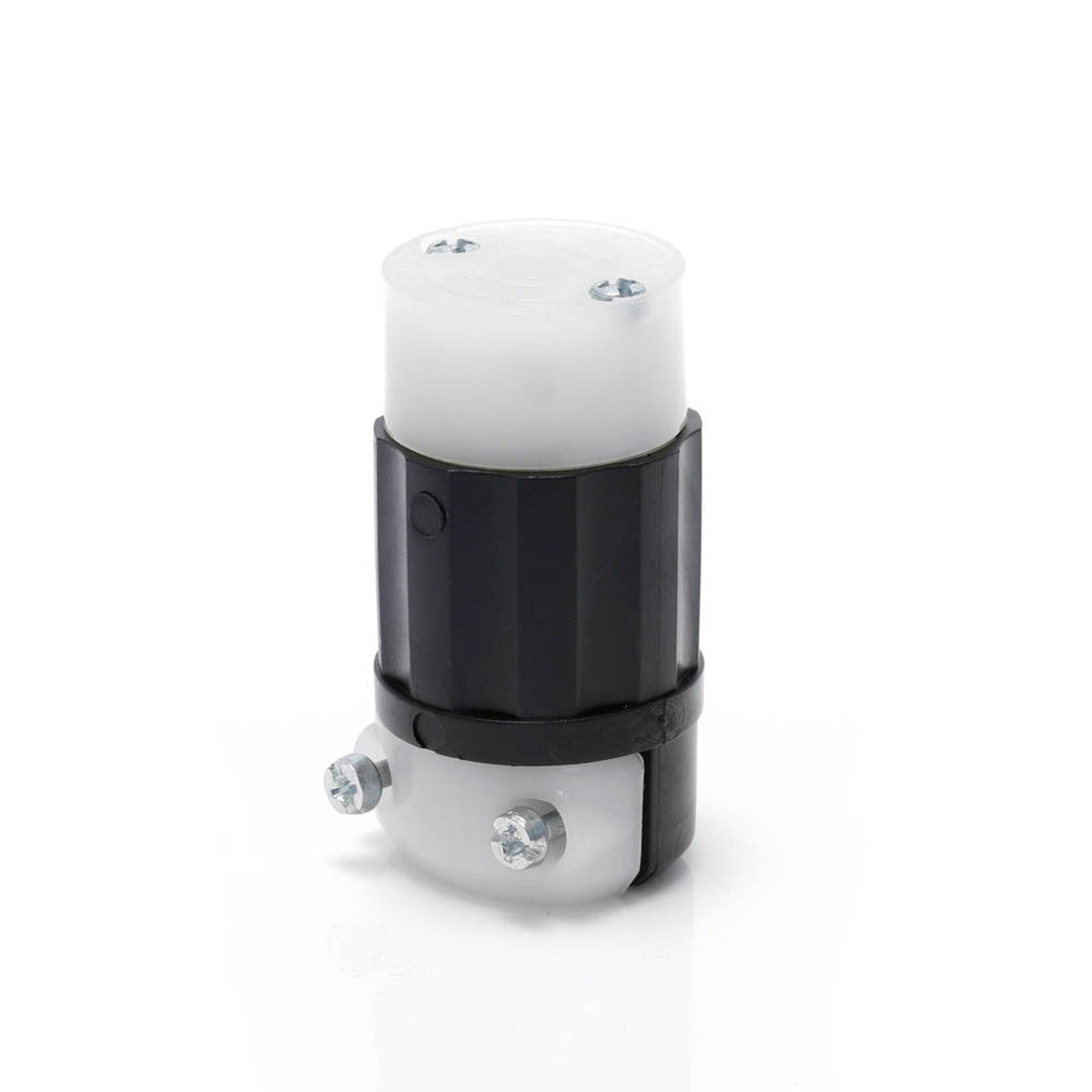

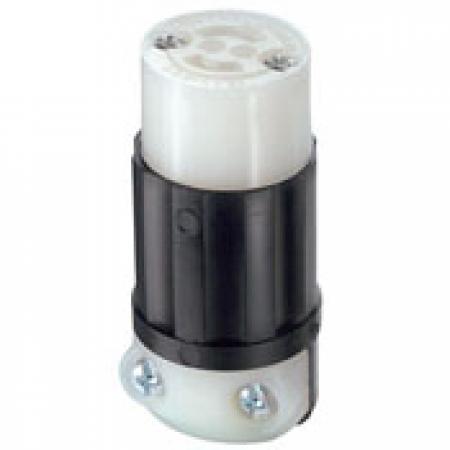

Leviton ML2-C 15 Amp, 125 Volt, Locking Connector, Industrial Grade, Grounding, MiniLock

Product Description

The LEVITON ML2-C is a 15 Amp, 125 Volt, industrial grade locking connector with grounding. Constructed with a super tough nylon body, this MiniLock connector is designed for durability in demanding industrial and commercial environments. It features a unique radial grip ring for secure connections and accommodates wire sizes from 18-14 AWG.

• Heavy duty, impact resistant super-tough nylon body ensures long service life.
• Unique radial grip ring provides a secure grip when making connections.
• Smaller form factor ideal for limited-space applications.

Product Highlights

Durable locking connector for industrial applications, featuring a secure grip and compact design.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: ML2-C
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: ML2-C
• Manufacturer: Leviton
• Brand: Leviton
• Sub Brand: Black & White
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 15 A
• Application: Industrial
• Color: Black;White
• Material: Nylon
• Mounting: Cable
• NEMA Rating: NEMA ML1R
• Number of Poles: 2
• Number of Wires: 3
• Standard: NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Listed 498 (File E13393);UL Fed Spec WC-596 (File E13393)
• UPC: 078477987292
• GTIN: 00078477987292
• Item Type: Locking Connector
• Environmental Conditions: Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C)
• Voltage Rating: 125 VAC
• Wire Size: 18-14 AWG (Terminal Accommodation);.218-.430 IN (Cord Grip Range)
• Configuration: ML-2R
• Constructional Feature: Impact Resistant
• Ground Type: Grounding
• Terminal Type: Screw
• Temperature Rating: -40 to 60 deg C
• Type: Cable Mount Midget Grounding
• Approval: UL, CSA C22.2, NOM 057
