Leviton Mfg Co S12-05801-KWS Single Outlet 125V 10 Pack

Product Description

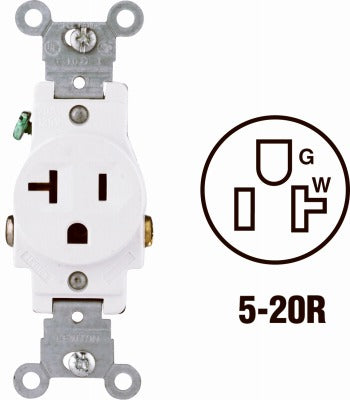

The LEVITON MFG CO S12-05801-KWS is a commercial specification grade single outlet designed for demanding electrical installations where reliability and wiring accessibility matter. Rated at 125 volts, this white outlet features a shallow body profile that maximizes available wiring room inside the box. Side-wired construction uses large-head terminal screws that accept up to No. 10 copper wire, making termination fast and secure. Double-wire power contacts provide maximum conductivity and firm plug retention over the life of the device. Captive mounting screws keep hardware from dropping during install. Sold in a package of 10 units.

This outlet is suited for commercial and light industrial electrical work where specification grade components are required. The shallow design makes it a practical choice for retrofit work in crowded junction and device boxes. Washer-type break-off plaster ears allow flush mounting across a variety of wall finish depths. Break-off fins enable 2-circuit conversion when the application calls for split-wired receptacle configurations. Licensed electricians working on commercial branch circuits will find this outlet meets typical project and inspection requirements.

Key Features

• Commercial specification grade construction for demanding installations
• Shallow body design maximizes wiring room inside device boxes
• Side-wired with large-head terminal screws accepting up to No. 10 copper wire
• Double-wire power contacts for maximum conductivity and plug retention
• Captive mounting screws retain hardware during installation
• Washer-type break-off plaster ears and break-off fins for 2-circuit conversion
• UL listed; backed by a limited 10-year warranty

Compatibility

Designed as a specification grade single outlet for use in standard commercial and residential electrical device boxes where 125-volt single receptacles are required.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 70 (National Electrical Code) requirements. Always de-energize the circuit at the breaker panel and verify the circuit is dead with a voltage tester before beginning work. Side-wired connections should be made with the terminal screws fully tightened to ensure a secure and code-compliant connection. Do not exceed the No. 10 copper wire rating for the terminal screws.
