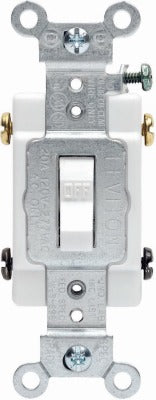

Leviton Mfg Co S08-CS220-2WS 2-pole Toggle Switch 20A

Product Description

The LEVITON MFG CO S08-CS220-2WS is a commercial specification grade 2-pole grounded toggle switch rated for 20 amps at 120/277 volts. Built for demanding commercial and industrial electrical installations, it features large silver-cadmium oxide contacts engineered for extended service life and reliable switching performance. The switch accepts up to No. 10 copper wire via large-head terminal screws that are backed out and staked for fast side wiring. A heavy-gauge rust-resistant steel mounting strap and break-off plaster ears allow accurate alignment during rough-in. Licensed electricians install this switch in commercial branch circuit applications where long service intervals and code-grade reliability are required.

This switch is suited for commercial and light industrial environments where a specification grade 2-pole toggle switch is required on 120V or 277V single-phase circuits. The captive mounting screws speed installation and reduce the risk of dropped hardware in wall cavities. The white finish fits standard commercial decorator and specification grade wallplate configurations. With a motor load rating of 1 HP at 120V and 2 HP at 240V, it handles small motor loads in addition to standard lighting and general-purpose circuits.

Key Features

• Rated 20 amps at 120/277 volts for commercial branch circuit use
• Silver-cadmium oxide contacts for extended contact life and low-resistance switching
• Large-head terminal screws backed out and staked for fast side wiring of up to No. 10 copper wire
• Captive mounting screws for secure, fast installation
• Heavy-gauge rust-resistant steel mounting strap with break-off plaster ears for precise alignment
• Motor load rated: 1 HP at 120V, 2 HP at 240V
• Limited 10-year warranty and UL listed

Compatibility

Designed as a commercial specification grade 2-pole toggle switch for use in standard single-gang or multi-gang commercial wallplate and wiring device assemblies on 120V or 277V branch circuits.

Installation Notes

Installation must be performed by a licensed electrician in accordance with NFPA 70 (NEC) and applicable local codes. De-energize the branch circuit at the panel and verify the absence of voltage with a meter before wiring. Side-wire connections should be made with conductors no larger than No. 10 copper. Secure the switch to the electrical box using the captive mounting screws before attaching the wallplate.
