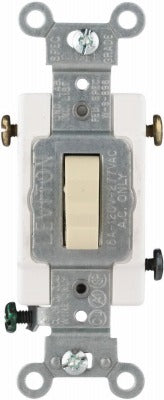

Leviton Mfg Co S07-CS315-2IS 3-way Toggle Switch 15A

Product Description

The LEVITON MFG CO S07-CS315-2IS is a commercial specification grade 3-way grounded toggle switch designed for reliable switching in demanding electrical installations. Rated at 15 amps and 120/277 volts, it also supports motor loads up to 1/2 HP at 120V and 2 HP at 240V. Large silver-cadmium oxide contacts deliver extended service life under repeated switching cycles. Captive mounting screws and large-head terminal screws backed out and staked from the factory speed up side wiring of up to No. 10 copper wire, reducing time on the rough-in. Licensed electricians working in commercial and institutional environments will find this switch built to handle the demands of specification-grade projects.

This switch is suited for 3-way switching applications in commercial, institutional, and industrial settings where specification-grade components are required. Its 120/277V dual-voltage rating makes it compatible with both standard residential-style branch circuits and the 277V single-phase lighting circuits common in commercial buildings. The heavy-gauge rust-resistant steel mounting strap and break-off plaster ears allow for precise alignment during installation in standard single-gang boxes. It ships in a package quantity of 10 units, making it practical for stocking on larger projects.

Key Features

• Commercial specification grade construction for long service life in high-demand environments
• Rated 15A at 120/277V with motor load ratings of 1/2 HP at 120V and 2 HP at 240V
• Large silver-cadmium oxide contacts for extended switching cycle life
• Captive mounting screws and pre-backed large-head terminal screws for fast, secure side wiring up to No. 10 copper
• Heavy-gauge rust-resistant steel mounting strap with break-off plaster ears for accurate alignment
• UL listed and backed by a limited 10-year warranty

Compatibility

Designed as an OEM-style specification grade replacement or new-installation 3-way toggle switch for standard single-gang electrical boxes in commercial and institutional 120V or 277V lighting branch circuits.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the branch circuit at the panel and verify zero voltage with a meter before any wiring work. Use the side-wiring terminals for copper conductors up to No. 10 AWG. Confirm proper 3-way wiring configuration between both switches before restoring power.
