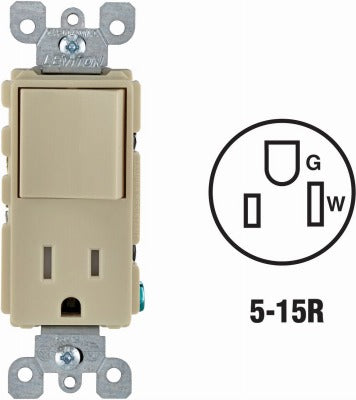

Leviton Mfg Co S01-T5625-0IS 15A Switch Outlet Combo

Product Description

The LEVITON MFG CO S01-T5625-0IS is a commercial-grade, single-pole switch and tamper-resistant grounding receptacle combination device in Decora style. Built from nylon, it integrates a 15-amp switch and a NEMA 5-15R tamper-resistant outlet in a single-gang form factor. The built-in shutter mechanism blocks access to the outlet contacts unless a two-prong plug is inserted simultaneously on both sides, preventing foreign object insertion. Electricians install this device in commercial and residential applications where both switching control and a protected outlet are required in one location.

This combination device is suited for commercial-grade installations in schools, healthcare facilities, hotels, offices, and any location where tamper-resistant receptacles are required by NEC code. The narrow body design accommodates standard single-gang boxes, and both back and side wiring options are available. Large-head terminal screws accept up to No. 10 copper wire, supporting a range of branch-circuit wiring configurations. Break-off tabs allow easy two-circuit conversion when independent control of the switch and outlet is needed.

Key Features

• Tamper-resistant shutter blocks contact access unless a two-prong plug engages both slots simultaneously
• Single-pole switch paired with NEMA 5-15R grounding receptacle in one Decora-style device
• Back and side wiring with large-head terminal screws accepting up to No. 10 copper wire
• Triple wire power contacts for maximum conductivity and plug retention
• Captive mounting screws and washer-type break-off plaster ears for fast, flush installation
• Heavy-gauge rust-resistant steel mounting strap
• Break-off tabs for two-circuit conversion

Compatibility

Designed as a commercial-grade OEM-style replacement or new-installation device for standard single-gang electrical boxes requiring a combined single-pole switch and tamper-resistant NEMA 5-15R receptacle.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit at the breaker panel and verify with a non-contact voltage tester before beginning any wiring work. Tamper-resistant receptacles are required in specific locations under NEC Article 406 — confirm the installation location meets code requirements before selecting this device. Avoid over-tightening terminal screws beyond the torque rating printed on the device body or specified in the installation instructions.
