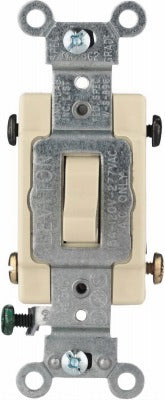

Leviton Mfg Co S01-CS415-2IS 4-way Toggle Switch 15A

Product Description

The LEVITON MFG CO S01-CS415-2IS is a commercial specification grade 4-way toggle switch designed for long-service-life performance in light commercial and residential wiring applications. Rated at 15 amps and 120/277 volts, it handles standard branch-circuit loads as well as motor loads up to 1/2 HP at 120 volts and 2 HP at 240 volts. Large silver-cadmium oxide contacts are engineered for extended switch life under repeated cycling. Captive mounting screws and large-head terminal screws backed out and staked at the factory speed up rough-in and trim-out for commercial electricians working under tight schedules.

This 4-way switch is suited for multi-location lighting control installations in commercial corridors, stairwells, conference rooms, and similar spaces where three or more switching points are required. The heavy-gauge rust-resistant steel mounting strap and break-off plaster ears allow precise alignment in standard single-gang boxes during new construction or retrofit work. Terminal screws accept up to No. 10 copper wire, making side wiring straightforward without adapters or additional hardware. Package quantity is 10 units, supporting multi-outlet or multi-circuit rough-in jobs efficiently.

Key Features

• Rated 15A at 120/277V for dual-voltage branch-circuit compatibility
• Motor load rated: 1/2 HP at 120V and 2 HP at 240V
• Large silver-cadmium oxide contacts for extended switch life
• Captive mounting screws for fast, single-handed installation
• Large-head terminal screws accept up to No. 10 copper wire for fast side wiring
• Heavy-gauge rust-resistant steel mounting strap with break-off plaster ears for alignment
• Limited 10-year warranty; UL listed and CSA approved

Compatibility

Designed as a commercial specification grade 4-way toggle switch for use in standard single-gang wallbox installations requiring multi-location switching control.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 70 (NEC) requirements for branch-circuit wiring and switch placement. De-energize the circuit at the panel and verify zero voltage with a meter before making any wiring connections. For 4-way switch applications, this device is wired in series between two 3-way switches; confirm traveler wire routing before final termination. Do not exceed the rated amperage, voltage, or motor load values marked on the device.
