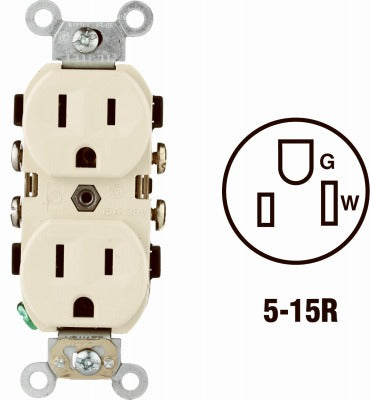

Leviton Mfg Co S01-0CR15-0IS Duplex Outlet 15A 125V

Product Description

The LEVITON MFG CO S01-0CR15-0IS is a commercial specification grade duplex outlet rated at 15 amps and 125 volts, conforming to NEMA 5-15R configuration. Built for demanding commercial and residential installations, it features a shallow-profile design that provides maximum wiring room inside standard electrical boxes. Large-head terminal screws accept up to No. 10 copper wire for a secure side-wired connection. Double-wire power contacts improve conductivity and plug retention over standard receptacle designs. Licensed electricians install this receptacle as part of branch circuit wiring in commercial and residential construction and renovation projects.

This duplex outlet is suited for commercial specification grade applications where durability and reliable contact performance are required. The shallow design makes it especially practical in retrofit and renovation scenarios where box depth is limited. It ships in a package quantity of 10 units, making it appropriate for multi-outlet rough-in or panel-room wiring projects. Captive mounting screws, washer-type break-off plaster ears, and break-off fins for 2-circuit conversion are included, supporting flexible installation configurations across a range of commercial and light industrial settings.

Key Features

• Commercial specification grade construction for high-cycle, demanding environments
• Shallow design maximizes wiring room in standard electrical boxes
• Side-wired with large-head terminal screws accepting up to No. 10 copper wire
• Double-wire power contacts for improved conductivity and plug retention
• Break-off fins allow 2-circuit conversion without additional hardware
• Includes captive mounting screws and washer-type break-off plaster ears
• UL listed; limited 10-year warranty

Compatibility

Designed as a commercial specification grade NEMA 5-15R duplex receptacle for use in standard single-gang electrical boxes in commercial and residential branch circuit wiring applications.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit at the breaker panel and verify absence of voltage with a meter before beginning any wiring work. Side-wired connections should be torqued per the terminal manufacturer guidance printed on the device. Do not use the back-stab push-in terminals if present; use the screw terminals for code-compliant commercial installations.
