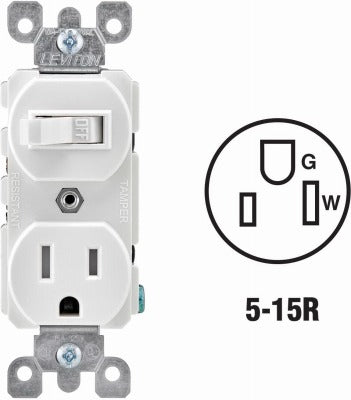

Leviton Mfg Co R62-T5225-0WS Switch Outlet Combo 15A

Product Description

The LEVITON MFG CO R62-T5225-0WS is a commercial-grade, tamper-resistant combination switch and outlet device built for standard branch-circuit applications. The receptacle side features an internal shutter mechanism that blocks contact access unless a two-prong plug is inserted simultaneously into both slots, preventing insertion of foreign objects such as hairpins and keys. The switch side is a single-pole configuration rated at 15 amps. The thermoplastic body and steel mounting strap are designed for durability in commercial environments. Electricians install this device where a single wall box location must serve both switching and receptacle functions.

This switch/outlet combination is suited for commercial and residential wiring applications where tamper-resistant receptacles are required by code. Typical install scenarios include classrooms, healthcare facilities, hotels, and multi-family residential units where NEC tamper-resistant receptacle requirements apply. The device is side-wired and accepts up to No. 12 copper wire, making it compatible with standard 15-amp branch circuits. The package includes 10 units, suitable for multi-outlet or multi-room projects.

Key Features

• Tamper-resistant shutter mechanism blocks contact access without a properly inserted two-prong plug
• Commercial-grade thermoplastic construction with steel mounting strap
• Single-pole switch combined with NEMA 5-15R receptacle in one device
• Side-wired terminations accept up to No. 12 copper wire
• Rated 15 amps for standard branch-circuit use
• 2-year limited warranty

Compatibility

Designed as an OEM-style replacement or new-installation device for standard single-gang wall boxes on 15-amp branch circuits requiring a tamper-resistant switch and outlet combination.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit at the breaker panel and verify absence of voltage with a meter before wiring. Side-wire terminations accept up to No. 12 copper conductor; do not use aluminum wire unless the device is specifically rated for it. Confirm the single-pole switch orientation matches the circuit control intent before securing the device in the box.
