Leviton Mfg Co R62-05634-0WS Duplex Single Pole Switch 15A

Product Description

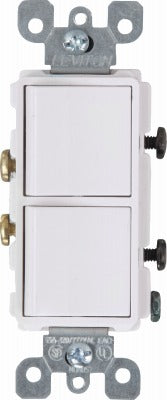

The LEVITON MFG CO R62-05634-0WS is a white duplex single pole switch designed to mount two independent single pole switches within a single gang wall box opening. Rated at 15 amps and 120/277 volts, it also supports motor loads up to 1/2 HP at 120 volts and 2 HP at 240 volts. The combined load across both switches must not exceed 20 amps. UL listed and backed by a limited 10-year warranty, this switch is suited for commercial and residential wiring applications where space is at a premium in the gang box.

This duplex switch is commonly specified in commercial lighting control, industrial panel installations, and multi-circuit residential applications where two separately controlled circuits must share a single gang cutout. Electricians use it to consolidate switch positions without adding gang boxes, reducing labor and box fill concerns. It is appropriate for use on standard 120-volt branch circuits as well as 277-volt commercial lighting circuits.

Key Features

• Two independent single pole switches in one single gang footprint
• Rated 15A at 120/277 volts for broad circuit compatibility
• Motor load rating: 1/2 HP at 120V and 2 HP at 240V
• Combined load for both switches must not exceed 20 amps
• UL listed for safety compliance
• Limited 10-year warranty

Compatibility

Designed as an OEM-style replacement or new-installation duplex single pole switch for standard single gang wall boxes in residential and commercial electrical systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the branch circuit at the panel and verify absence of voltage with a meter before wiring. Do not exceed the 20-amp combined load limit across both switch positions. Standard single gang box and cover plate hardware apply.
