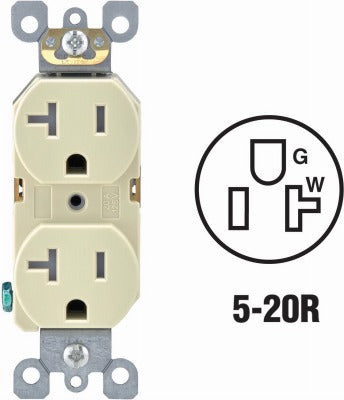

Leviton Mfg Co R61-T5820-0IS 20A Tamper Resistant Receptacle

Product Description

The LEVITON MFG CO R61-T5820-0IS is a residential-grade, tamper-resistant thermoplastic duplex grounding receptacle rated at 20 amps. A built-in shutter mechanism blocks contact access unless a 2-prong plug is simultaneously inserted into both slots, preventing insertion of foreign objects such as hairpins or keys. The narrow-body housing is side-wired, with large-head terminal screws that accept up to No. 10 copper wire. Triple wire power contacts provide maximum conductivity and plug retention. Captive mounting screws speed up installation, and the heavy-gauge rust-resistant steel mounting strap is included. This package contains 10 receptacles. Licensed electricians typically install this device in residential branch circuit wiring.

This receptacle is suited for residential installations where NEC-mandated tamper resistance is required, such as dwelling unit branch circuits. The washer-type break-off plaster ears allow flush wall alignment in standard single-gang boxes, and break-off tabs enable easy 2-circuit conversion when needed. It is sold in a 10-unit package, making it practical for new construction or renovation projects where multiple outlets are installed across rooms.

Key Features

• Tamper-resistant shutter mechanism blocks contact access without a 2-prong plug insertion
• Side-wired with large-head terminal screws accepting up to No. 10 copper wire
• Triple wire power contacts for improved conductivity and plug retention
• Captive mounting screws for faster installation
• Break-off plaster ears for flush alignment and break-off tabs for 2-circuit conversion
• Heavy-gauge rust-resistant steel mounting strap included
• Limited 2-year warranty

Compatibility

Designed as an OEM-style residential-grade duplex receptacle for standard single-gang wall box installations requiring 20-amp tamper-resistant outlets per NEC requirements.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the branch circuit at the breaker panel and verify zero voltage with a meter before wiring. Use only copper conductors sized appropriately for a 20-amp circuit. Ensure the mounting strap is secured properly to the wall box before attaching the cover plate.
