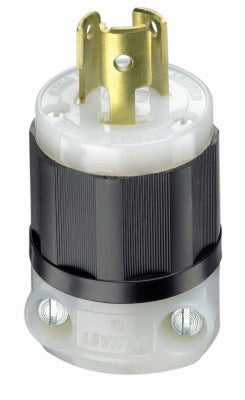

Leviton Mfg Co R61-04720-0BX Locking Plug 15A 125V L5-15P

Product Description

The LEVITON MFG CO R61-04720-0BX is a twist-locking plug rated at 15 amps and 125 volts, wired in a 2-pole, 3-wire grounding configuration conforming to the NEMA L5-15P standard. The locking blade design rotates to secure the connection once inserted, preventing accidental disconnection under load. This plug is used to terminate portable cords and equipment leads in commercial, industrial, and residential applications where a secure, vibration-resistant connection is required. Electricians and equipment technicians are the primary installers. The package contains 3 units.

The R61-04720-0BX is suited for use in settings where standard straight-blade plugs are inadequate due to vibration, movement, or safety requirements. Typical applications include portable generators, temporary power distribution, HVAC equipment connections, and industrial machinery that draws up to 15 amps at 125 volts. The L5-15P configuration is a widely adopted locking standard, making this plug compatible with matching L5-15R locking receptacles in temporary and permanent power setups.

Key Features

• Twist-lock blade design prevents accidental disconnection under load
• 15A, 125V rating suitable for a broad range of portable equipment
• 2-pole, 3-wire grounding configuration for safe, grounded operation
• NEMA L5-15P standard for compatibility with matching locking receptacles
• Packaged in a quantity of 3 units per package

Compatibility

Designed as an OEM-style replacement or new-installation locking plug for use with NEMA L5-15R locking receptacles rated at 15A and 125V in 2-pole, 3-wire grounding configurations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit before disassembling or wiring the plug. Ensure the cord gauge is appropriate for the 15A rating before terminating conductors. Do not exceed the rated voltage or amperage of the plug.
