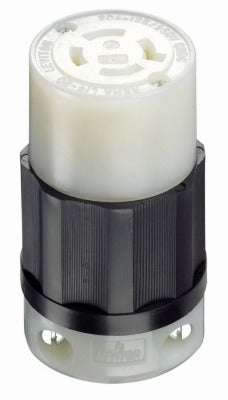

Leviton Mfg Co R61-02413-0BX Locking Connector 20A 125/250V

Product Description

The LEVITON MFG CO R61-02413-0BX is a locking connector rated for 20 amps at 125/250 volts, configured as a 3-pole, 4-wire grounding device with an L14-20R twist-lock interface. This connector is built for applications where a secure, vibration-resistant electrical connection is required. The 4-wire grounding configuration includes two hot conductors, a neutral, and a ground, making it suitable for split-phase power distribution. Electricians and generator service technicians use this connector in portable generator hookups, transfer switch wiring, and temporary power distribution equipment where reliable mechanical locking is critical.

This connector is well suited for residential and light commercial installations where L14-20 twist-lock connections are specified. Common applications include portable generator cord sets, power distribution panels, and temporary construction power hookups. The package includes 3 connectors per unit, making it practical for jobs requiring multiple connection points. The locking design prevents accidental disconnection under load or in high-vibration environments.

Key Features

• 20A at 125/250V split-phase rating for flexible generator and distribution use
• L14-20R twist-lock configuration for secure, pull-resistant connections
• 3-pole, 4-wire grounding design includes two hots, neutral, and ground
• Mechanical locking interface resists accidental disconnection under load
• Sold in a package of 3 connectors per unit of measure

Compatibility

Designed as an OEM-style replacement or field-wiring connector compatible with L14-20 twist-lock receptacles and inlets rated for 20A at 125/250V, 3-pole, 4-wire grounding configurations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC Article 406 and applicable local codes. De-energize all circuits and verify zero voltage with a meter before wiring the connector. Ensure conductor terminations are fully seated and secured before reassembling the connector body. Do not exceed the rated amperage or voltage of the device.
