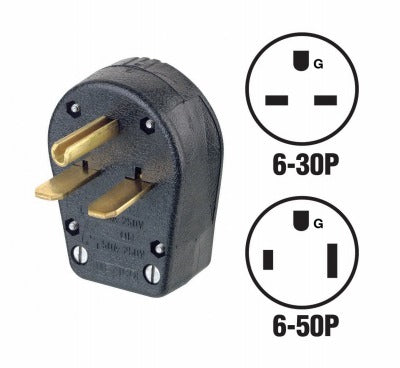

Leviton Mfg Co R55-00931-00E 30A 50A Dual Plug Nema 6-30P 6-50P

Product Description

The LEVITON MFG CO R55-00931-00E is a dual-rated, right-angle dead front plug that covers both 30-amp and 50-amp 250-volt grounding applications in a single unit. It ships with a 30A adjustable blade and a flat 50A blade, allowing a single plug body to serve two common NEMA configurations: 6-30P at 30A/250V and 6-50P at 50A/250V. A built-in blade rejection feature prevents the housing from closing if the blade is installed incorrectly, reducing wiring errors in the field. The shell and bottom are hinged for straightforward assembly, and zinc-plated steel screws are included. Electricians install this plug on hard-service cords in commercial, industrial, and residential service environments.

This plug is designed for use with No. 14, 12, 10, 8, and 6 AWG round cord and No. 10/3 SRDT, 8/2-10/1 SRDT, and 6/2-8/1 flat wire. Cord diameter acceptance ranges from 0.630 inches to 1.050 inches. Typical applications include welder leads, generator cords, EV charging equipment, and high-draw appliance connections that require a 250-volt grounding plug. The dual-function design reduces the need to stock separate 30A and 50A plug bodies for common service calls.

Key Features

• Covers both NEMA 6-30P (30A/250V) and NEMA 6-50P (50A/250V) grounding configurations in one plug body
• Built-in rejection feature blocks assembly if blade is positioned incorrectly
• Right-angle, dead front construction reduces shock exposure and cord strain
• Compatible with No. 14 through No. 6 AWG round cord and SRDT flat wire types
• Accepts cord diameters from 0.630 inches to 1.050 inches via integrated cord clamp
• Hinged shell and bottom design simplifies field assembly
• Zinc-plated steel screws included; UL and CSA listed

Compatibility

Designed for use with 250-volt grounding cord applications requiring NEMA 6-30P or NEMA 6-50P plug terminations, including No. 10/3 SRDT, 8/2-10/1 SRDT, and 6/2-8/1 flat wire assemblies as well as No. 14 through No. 6 AWG round cord.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 70 (NEC) requirements for cord-and-plug connections at 250 volts. De-energize the circuit completely before disassembling any existing plug or terminating the new plug. Verify wire gauge and cord type are within the plug's rated range before tightening the cord clamp. Do not exceed the 30A or 50A ratings for the respective blade configuration in use.
